IC Realtime 2 Megapixel Mini Network PTZ Dome Camera (ICIPP2012S) User Manual
Page 19
11

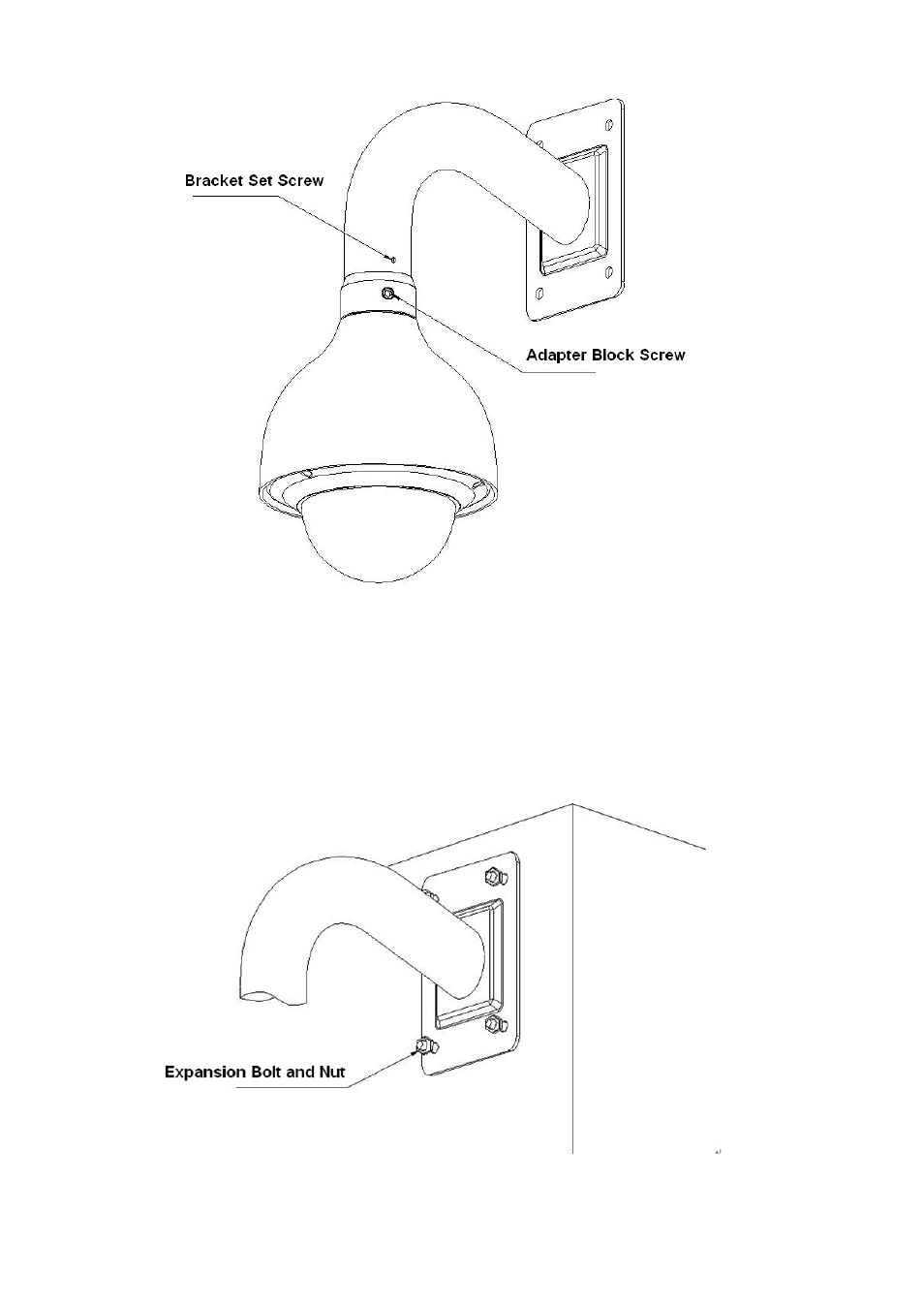

Figure 4-2
3) Dig holes in the wall according to the installation holes at the bottom of the wall mount
bracket. Please make sure the cable exit of the bracket is facing the round hole of the
wall. Insert expansion bolts (not provided) to the holes you just dug. Connect the
composition cable and then pull it through the hole in the wall. Use four hex screws and
flat washer to secure the bracket on the wall of the expansion bolts. See Figure 4-3.
Figure 4-3
