ICR540VD - Vandal Resistant Dome Camera
12
Installation
13
Digital Day&Night Vandal Resistant Dome Camera
Cable Connections
1. Dome Base Mounting
- Open the dome cover by loosening 3 screws using special wrench
provided.
- Mount the base of camera to a sturdy surface using 4 screws (1.5
inch) and 4 premade holes on the base of the dome.
2. Power Connect & Monitor Impedance
- DC12V/300mA regulated power supply (DC12V only)
AC24V Class 2 power supply (AC24V/DC12V)
- To avoid fire or shock hazard, must use a UL listed power supply.
- Set the monitor impedance switch to 75½. Check the impedance
switch when the screen turns blurred.
3. Camera Module Adjustment
- Loosen screws for 3-axis camera bracket and adjust the direction
and angle of camera.
- Make sure to retighten the screws for camera bracket.
- Set any function you wish to activate by using the OSD buttons.
4. Dome Cover Mounting
- Replace the dome cover to the base and tighten 3 screws.
AC24V/DC12V
AC IN
DC IN
AC IN
DC IN

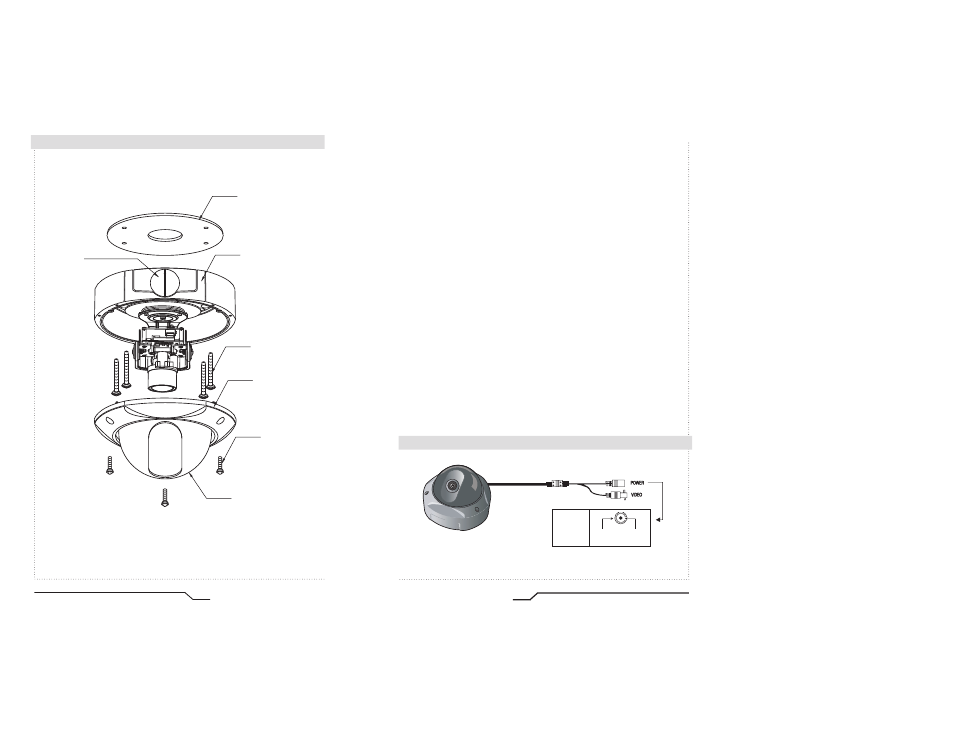

DOME COVER
BOLT
MOUNT
No. 8-32
UNC
DECORATION
RING
M4*10
RUBBER
BOTOTOM
BASE
HOUSING
