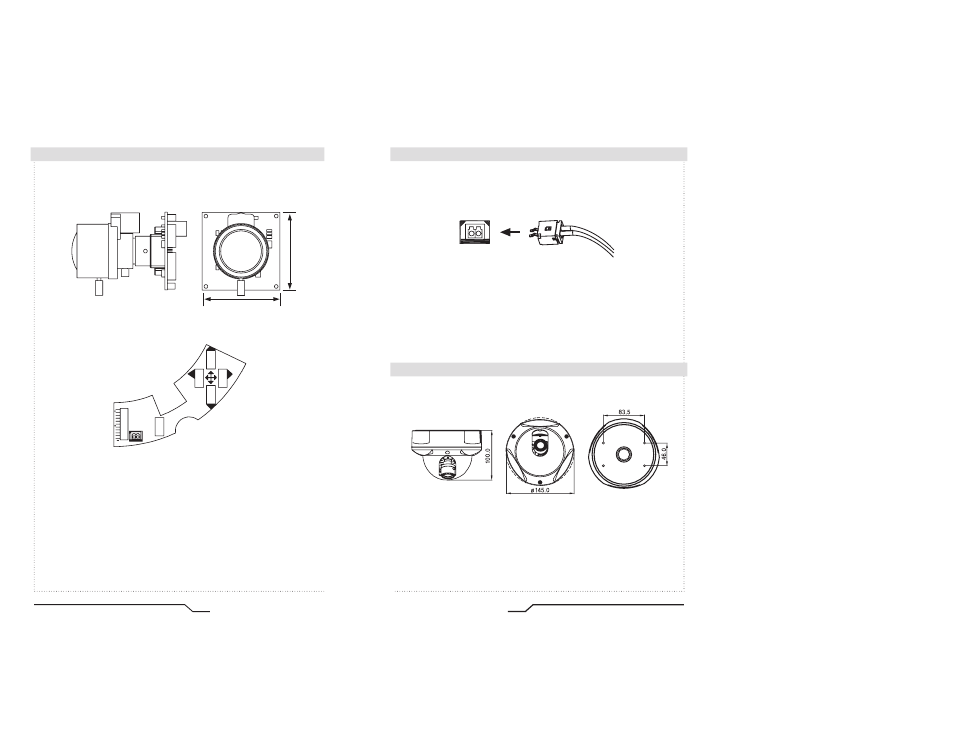

Names and Functions of Parts
ICR540VD - Vandal Resistant Dome Camera
OSD PCB
42
42
LEFT
UP
RIGHT
DOWN
SET
CN1
VBS-Extra
SW5
SET button : Used for the menu display. This button can be used to
confirm settings after changing the value of the selected function or
current conditions.
UP & DOWN buttons : Used for selecting items by moving the cursor
up or down on the menu screen.
LEFT & RIGHT buttons : Used when changing item values, by moving
the cursor to the left or right on the menu screen.
LENS : Vari-Focal DC Auto Iris Lens
(unit : mm)
11
Digital Day&Night Vandal Resistant Dome Camera
Names and Functions of Parts
Dimensions
VBS-EXTRA FOR CONNECTING TO LCD
Please use the supplied wire when connecting to LCD
3 AXIS BRACKET
Please loosen screws and fix tilted and panned position.
SMPS PCB FOR DUAL POWER
VBS-EXTRA
(unit : mm)
