ICR540VD - Vandal Resistant Dome Camera

Auto or manual control can be selected.
1. When the SETUP menu is on the screen, position the cursor to point to

'SHUTTER' by using the UP and DOWN buttons.

2. Select the shutter mode by pressing the LEFT or RIGHT button.

FLK : Select 'FLK' mode when flickering occurs on the screen

due to an imbalance between illumination and frequency.

NTSC Model:1/100, PAL Model: 1/120

ESC : Auto control of the shutter speed is enabled.

When ESC mode is on, the shutter speed is controlled automatically

according to the brightness of the scene.

MANUAL : The shutter speed can be controlled manually.

3. Select 'MANUAL' mode for manual shutter speed adjustment.

Selectable speeds are from ‘1/60’ to ‘1/120,000’sec (NTSC) and ‘1/50’

to ‘1/120,000’sec (PAL).

4. Press the SET button when the settings are completed.

18

Camera Operation

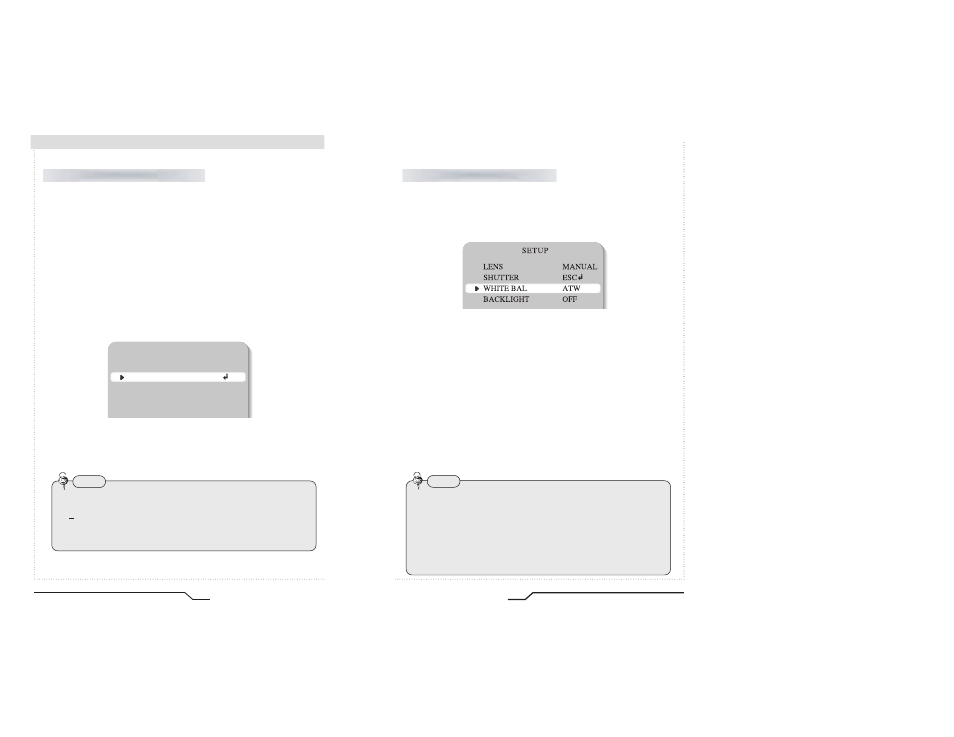

SHUTTER (condition and speed control)

SETUP

LENS

MANUAL

SHUTTER

ESC

WHITE BAL

ATW

BACKLIGHT

OFF

• While using the internal synchronous system, if the shutter setting is on

'ESC' and the camera is directly facing bright fluorescent lights the

image on the screen can be adversely affected - therefore choose

the installation location carefully.

• When 'MANUAL' mode is on, the SENS UP function cannot be used.

Note

19

Digital Day&Night Vandal Resistant Dome Camera

The screen colours can be adjusted using the WHITE BALANCE function.
1. Position the cursor to point to 'WHITE BAL' on the SETUP menu by using the

UP and DOWN buttons.

2. Select the mode you wish to adjust by pressing the LEFT or RIGHT buttons.

elect one of the 3 modes below.

ATW(Auto Tracking White Balance) : This mode can be used within the colour

temperature range 1,800°K ~ 10,500°K (eg, fluorescent light, outdoor, sodium

vapour lamp etc.)
AWC(Auto White Balance Control) : Press the SET button while the camera

is directed at a piece of white paper to obtain the optimum state under current

illumination. If the environment, including the light source, changes the white

balance will need to be adjusted again.
MANUAL : The manual adjustment mode enables finer adjustment.

Select ATW or AWC first then change to manual adjustment mode and press

the SET button. Set the appropriate colour temperature then increase /

decrease the red and blue colour values and monitor the colour changes of

the object.

WHITE BALANCE control

• Under the following conditions the WHITE BALANCE function may not operate

properly. In such cases, please select the AWC mode.

When the object’s surroundings have a very high colour temperature

(eg, a clear sky and sunset)

When the object’s surroundings are dark

If the camera directly faces a fluorescent light or is installed in a place where

there are considerable changes in illumination, the WHITE BALANCE

function may become unstable.

Note
