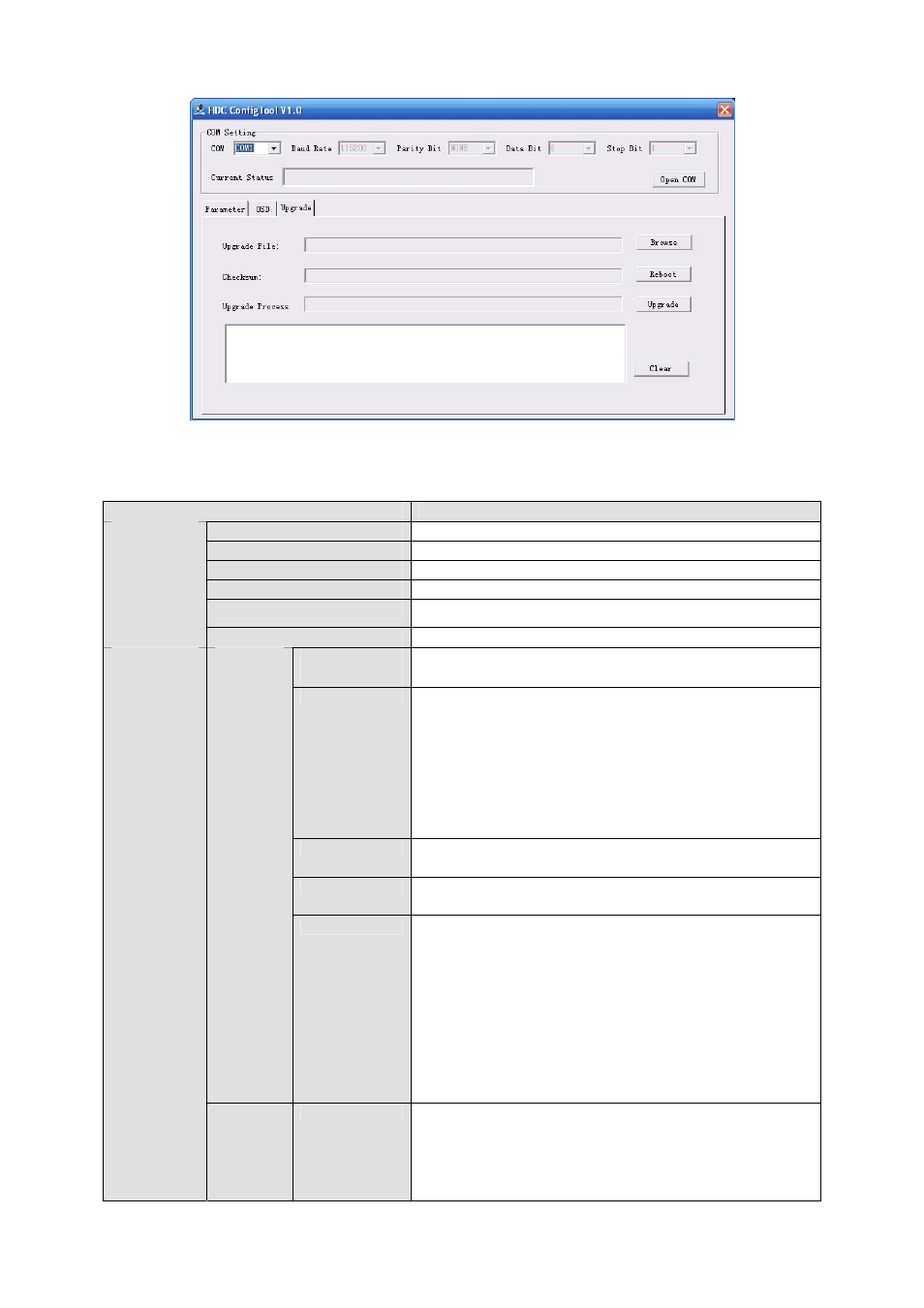

Figure 4-3
You can refer to the following sheet for detailed information.
Item
Note
COM Select the corresponding COM number.
Baud rate Default value is 115200 (Read-only)
Parity None
Data bit
Default value is 8 (Read-only).
Stop bit Default value is 1 (Read-only).
COM Setup
Current status Display the corresponding COM status.
Brightness
Set the brightness value to adjust the video bright and
dark level. The value ranges from 0 to 100.
Contrastness z It includes two options: Enable/disable. You can
check the box to enable the contrastness
function.
z After you enabled this function, you can set the
different value to control the contrastness. The
value ranges from 0 to 100.
Please note the BLC function and the contrast
function can not be valid at the same time.
Hue Set the hue value to adjust the video hue. The value
ranges from 0 to 100.
Saturation Set the saturation value to adjust the video saturation.
The value ranges from 0 to 100.
Color
BLC The BLC has three options: manual/auto/disable. You
can check the box to select the corresponding mode.
z
In the manual mode, the value you set here is the
actual backlight value.
z In the auto mode, the value ranges from 0 to 100
according to the actual environments.
z In the disable mode, the BLC function is disabled.
The value ranges from 0 to 100.
Please note the BLC function and the contrast
function can not be valid at the same time.
Parameter
Setup
Exposure Shutter It is to set the shutter time. It includes the following
modes.
z
Auto: System auto adjusts the shutter time
according to the current environments,
z Manual: 1/50s, 1/120s, … . The shutter time is
