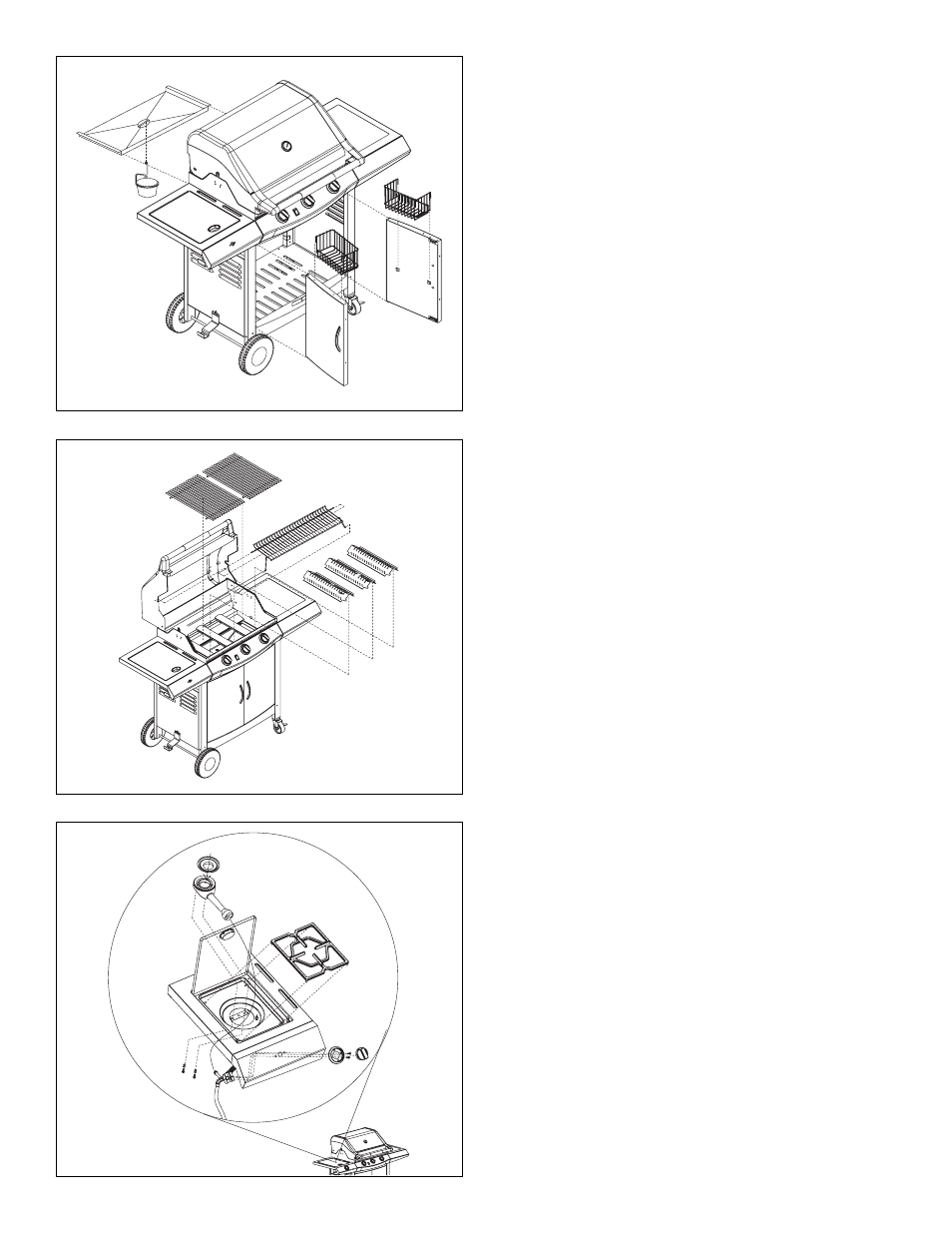

Mount the left and right doors (Item 48, 49) into position, making
sure to align the fixed hinge pin hole in door to lower cross member
and apply pressure allowing the spring-loaded hinge pin in top of
door to snap door into position. Mount the wire baskets (Item 50) on
inside of doors. Insert the grease cup (Item 59) into the cup holder
(Item 60) and slide the grease tray (Item 58) into position as shown.
7
Open up the top lid and position the heat plates (Item 27) as
shown. Add the cooking grates (Item 26) above the heating plates.
Insert the warming rack (Item 9) to the inside of lid as shown.
8
Push the side burner valve stem (Item 35) through the side burner
control panel hole (Item 38) and mount it by using two screws pro-
vided, threading through the panel and bezel.
Push the knob (Item 22) onto the valve stem with the white line on
the knob pointing upwards. Open side burner lid (Item 29) and
insert the side burner (Item 32) into the frame.
Gently slide the burner tube (Item 34) over the orifice of the valve.
Secure the burner in place using screw (Key C), lock washer (Key B)
and washer (Key A). Place cooking grate on top (Item 39).
