Centro 85-1095-6 - Manual (Page 18)

1 6
5
Open the top lid, align the holes in bottom assembly with tapped
holes in cross member. Fasten the assembly in position using two
bolts, lock washers and washers (Key G, H, F) per side.
3

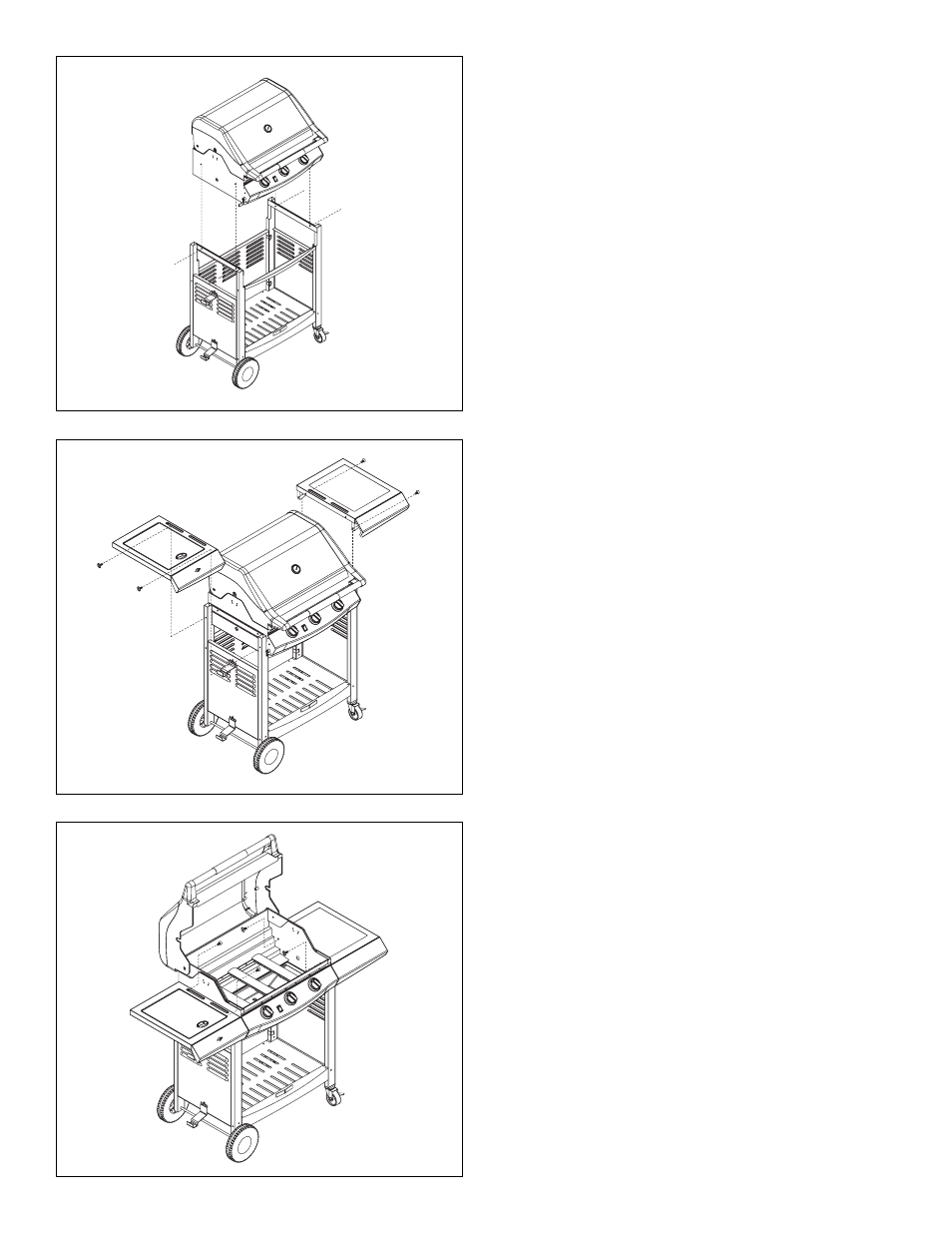

With the help of another person, lift the top and bottom assembly
into position as shown. Make sure to align the holes in bottom assem-
bly with tapped holes in the cross members of main frame assembly.
4
Assemble the left burner shelf assembly by sliding it into position as
shown. Repeat procedure with right shelf assembly. Fasten each
shelf assembly in position using two bolts, lock washers and washers
(Key G, H, F), two per shelf.
