After removing the unit from carton please make sure that all hard-
ware is present.
Before starting to assemble the unit, read these instructions care-
fully. It is suggested to assemble the unit on a flat, clean surface.
1

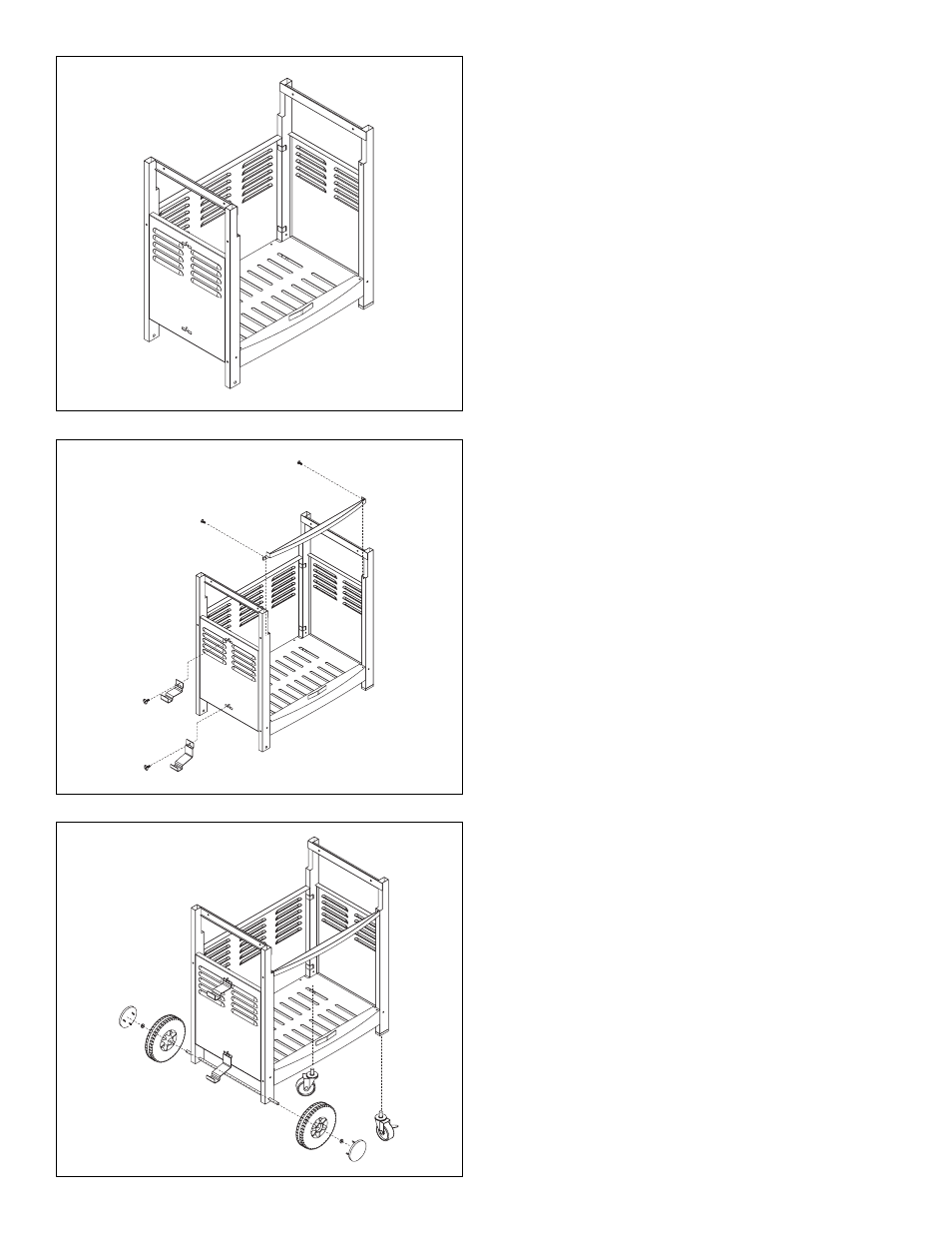

Take the main frame assembly and assemble the top cross member
(Item 47) to it using bolts (Key I) as shown. Add the Tank mounting
brackets (Item 56, 57) to outside of left side panel as shown and
assemble them to cart using bolts (Key G).
2
Assemble the wheels and castors to the bottom of legs in config-
uration as shown. Attach the wheel (Item 51) by using the axle
(Item 53) and washer and nuts (Key D, E) at each side, and snap
the wheel caps (Item 52) on. Using an adjustable wrench, screw
the casters (Item 54, 55) into the bottom of the legs.
