Haltech HT045505 User Manual
Page 4

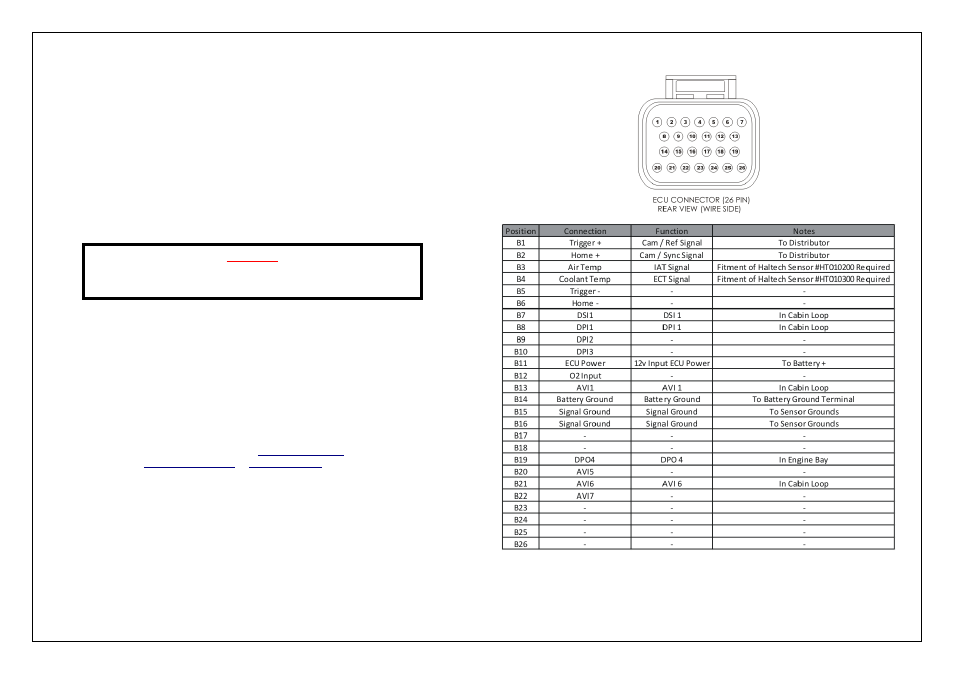

Harness Overview
The Haltech Nissan RB30 Series Terminated Engine Harness is a plug and play
solution for wiring a Nissan RB30 Series Engine.
Installation is simple and easy as the harness is designed for the engine, all lengths
are correct and all wires are clearly labeled.
Notes on installation:
•
Make sure your Engine is grounded directly to the chassis of the vehicle.
A heavy gauge ground / earthing strap should be used to ground your engine to the
chassis of the vehicle. The Haltech Terminated Engine harness does not ground
your engine.
•
Keep all wires away from the Exhaust manifold.
•
A Haltech Throttle Position Sensor is required to be retro-fitted to the throttle body.
•
A Haltech Coolant Temperature Sensor #HT010300 is required to be fitted,
This sensor replaces the OEM sensor.
•
Connect the internal ECU MAP sensor via silicon hose or alternatively fit a
Haltech 3Bar MAP sensor to the harness connector labeled MAP.
•
Basemaps are available on the we
or by emailing
WARNING!
Damage can occur to your harness and / or ECU if you do not ground
your engine properly. Please ensure heavy gauge cable is used.
