Char-Broil 463263110 User Manual
Page 20

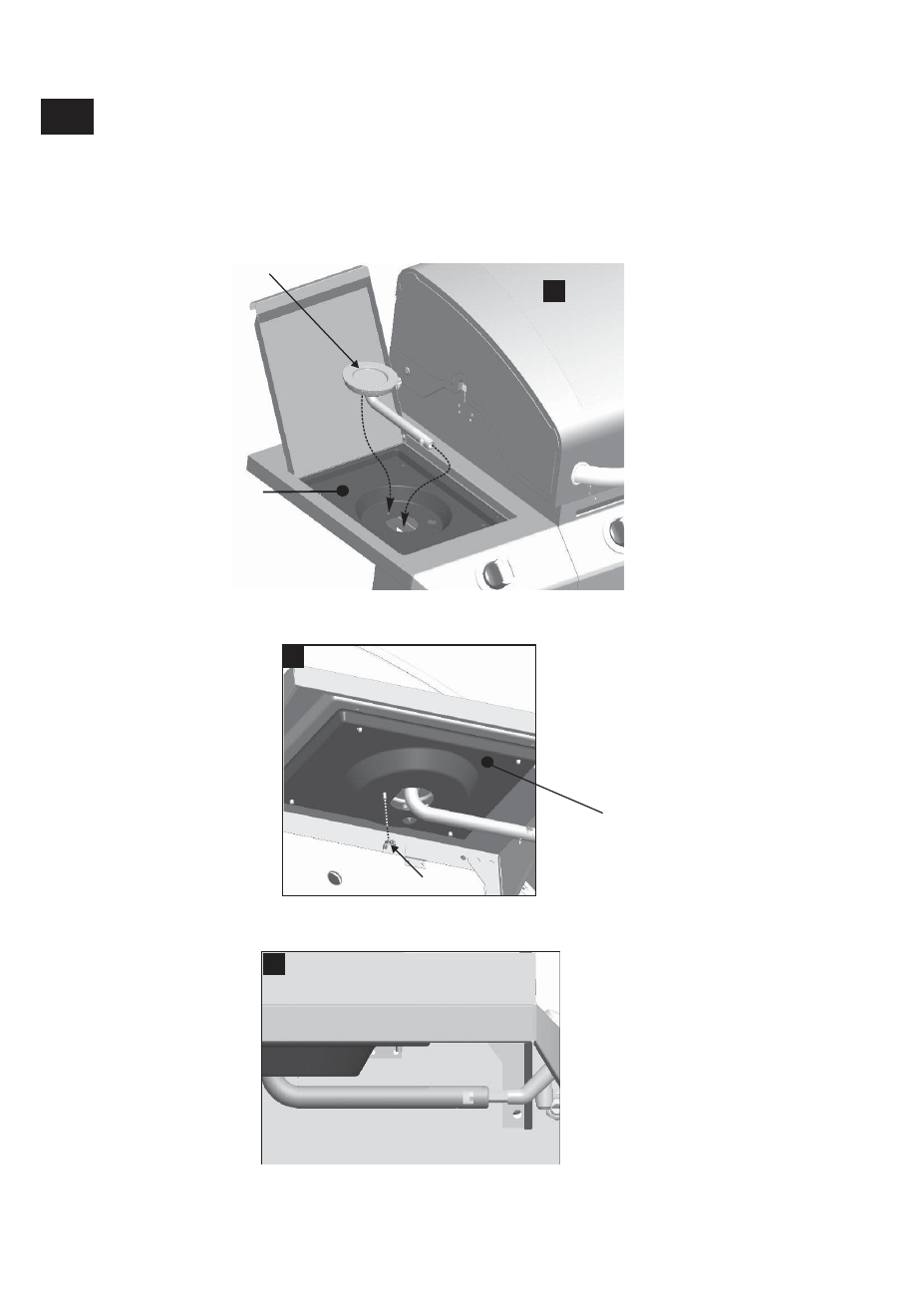

Insert sideburner burner into left shelf.
shelf, shown A.
The stud on bottom of burner fits into rear small hole in sideburner drip pan on
Secure burner to sideburner drip pan with one Wing nut, shown B. Make sure burner tube
engages sideburner valve, shown C.
B
20
A
Sideburner burner
Sideburner drip pan
Sideburner drip pan
Burner tube
Valve
C
Wing nut
11
