5

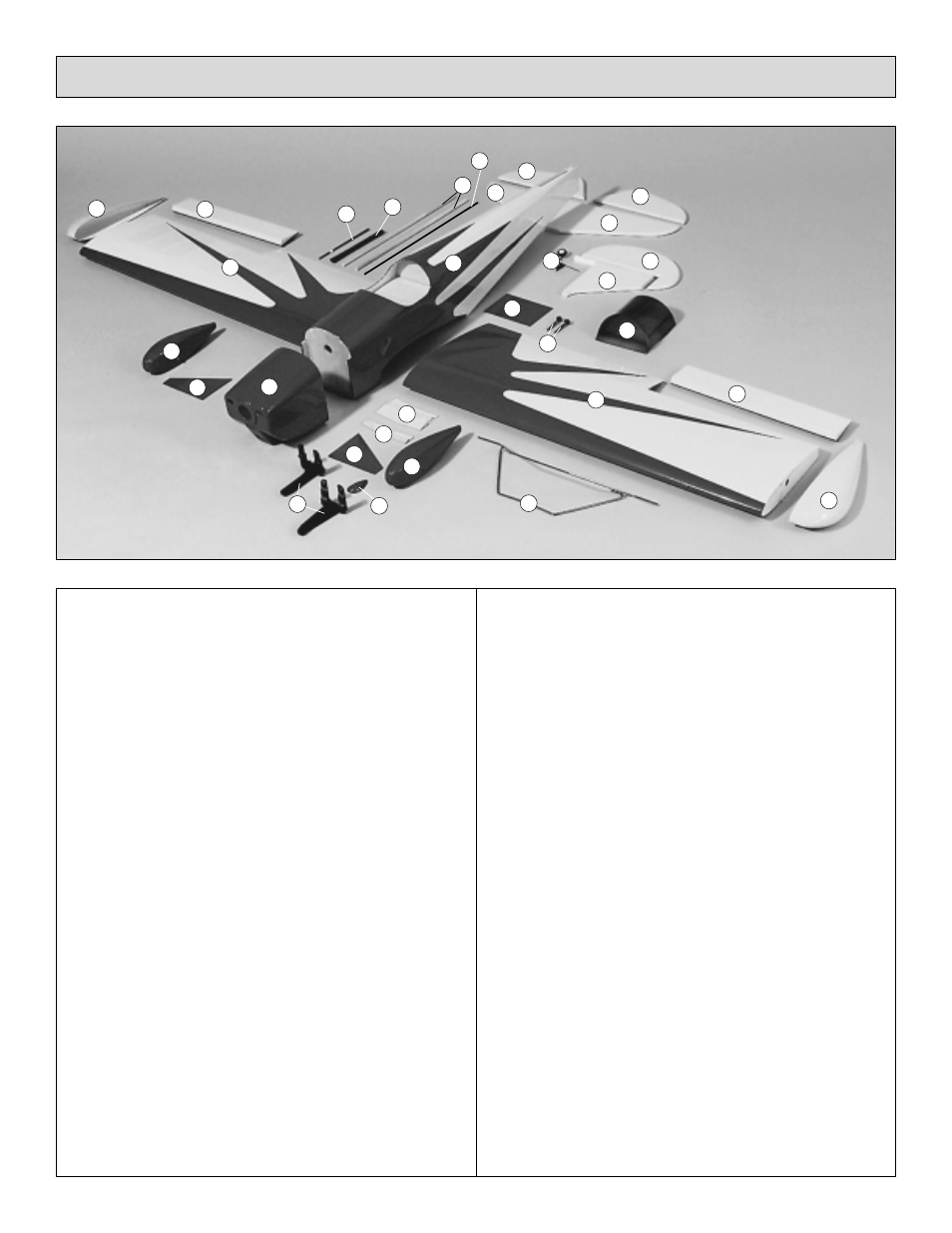

Key# Description Qty
1 Fuselage 1
2 Wing Panel Right & Left 2
3 Wing Tips 2
4 Aileron Right & Left 2
5 Forward Plywood Wing Joiner 3
6 Aft Plywood Wing Joiner 2
7 Wing Bolt Plate 1
8 Horizontal Stabilizer 1
9 Vertical Fin 1
10 Rudder 1
11 Elevator 2
12 Wire Landing Gear 1
13 Main Landing Gear Cover 2
14 Wheel Pants 2
15 Cowl 1
16 Windshield 1
17 Scale Fuel Level Fairing 1
18 Adjustable Engine Mount Right & Left 2
19 1" Tail Wheel 1
20 Wood Dowel Pushrod 2
21 Plastic Heat Shrink Tubing 1
22 Throttle Pushrod 1
23 2-56 x 12" Threaded Pushrod 7
24 5mm x 50.8mm Wing Bolt 2
Parts Included in the Hardware Bag
Inner Throttle Pushrod
1
2-1/2" Main Wheels 2
2-1/2" Spinner 1
Cockpit Coaming 1
Large Nylon Control Horn 3
Nylon Clevis 5
Silicone Clevis Retainer 5
Faslink Pushrod Keeper 4
CA Hinge Strip 1
14 oz. Fuel Tank 1
Screw-Lock ™ Pushrod Connector 1
Pushrod Connector Retainer 1
Description Qty
4-40 Hex Nut
6
4-40 Lock Nut 4
8-32 Blind Nut 4
2-56 x 1/8" Set Screw 1
2-56 x 5/8" Machine Screw 6
4-40 x 1/8" Socket Head Cap Screw 1
4-40 x 3/8" Machine Screw 6
4-40 x 3/4" Machine Screw 4
6-32 x 1/8" Set Screw 4
8-32 x 1" Socket Head Cap Screw 4
#2 x 3/8" Sheet Metal Screw 4
#4 x 1/2" Sheet Metal Screw 18
#6 x 1" Sheet Metal Screw 4
3/32" Wheel Collar 1
3/16" Wheel Collar 4
#4 Flat Washer 20
#8 Flat Washer 4
#8 Lock Washer 4
Landing Gear Cover Brackets 6
Wheel Pant Bracket 2
3mm x 9.5mm Machine Screw 2
Landing Gear Straps 4
Replacement Parts
If needed, replacement parts for SpaceWalker ARF are available through
your hobby supplier.
Canopy .....................................................................................GPMA2163
Cowl ..........................................................................................GPMA2164
Spinner .....................................................................................GPMQ4522
Wing Set ...................................................................................GPMA2160
Tail Fin Set ................................................................................GPMA2162
Fuselage Set.............................................................................GPMA2161
Landing Gear Set......................................................................GPMA2165
Parts List
6
16
9
3
3
5
14
14
15
11
11
10
12
2
2
19 1
20
22
7
8
8
4
4
13
13
23
18 17
24
21
