18
to length and connect the vent line to the muffl er and the carb
line to the fuel inlet on the needle valve. A plastic fi ll line plug
has been provided to plug the fi ll line if you installed one.
Out-runner Motor, Battery
& Radio Installation
If you have installed a glow engine, skip this section as it only
contains information relevant to installing a brushless motor.
❏

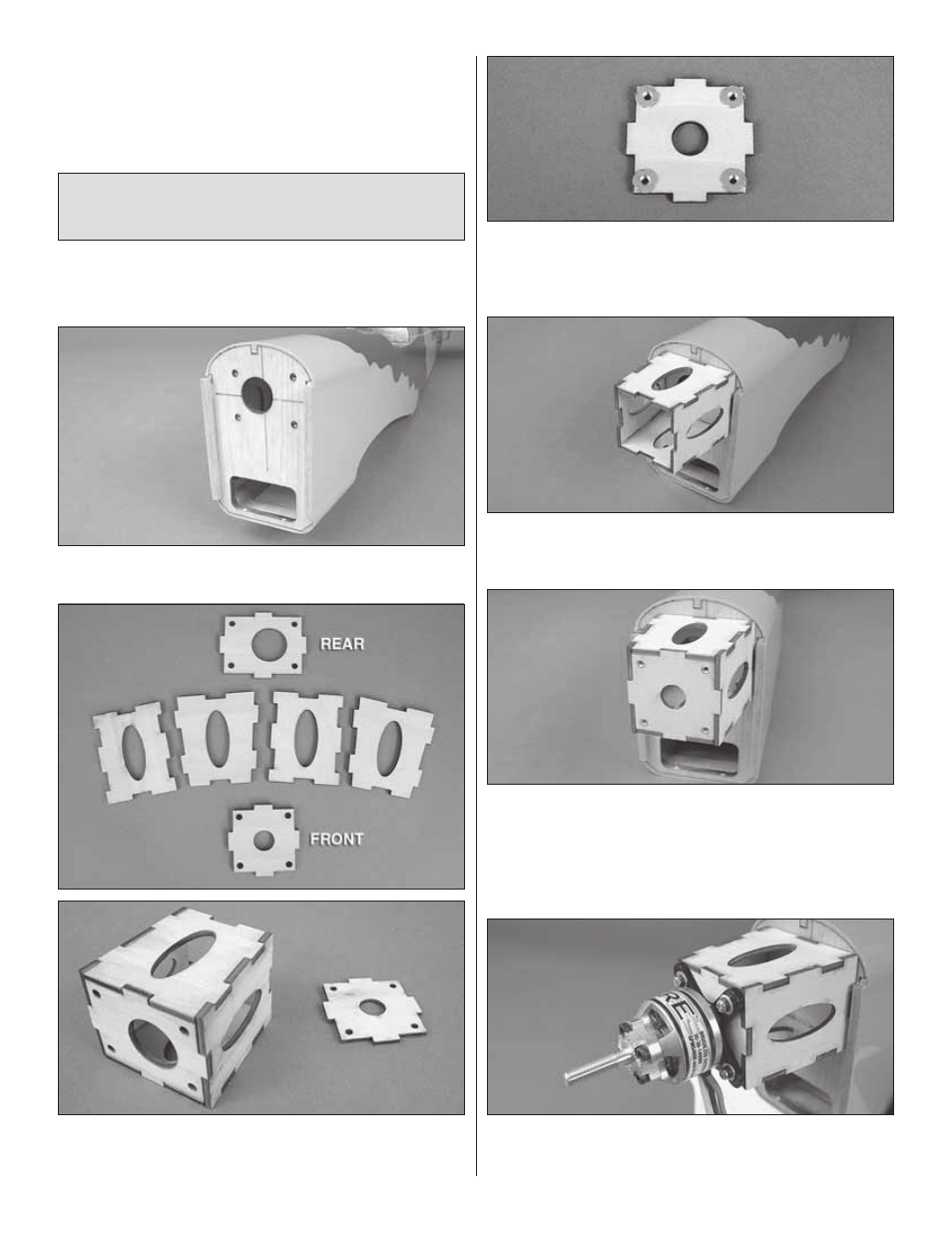

1. Cut the perforations along the cooling hole and remove
the cutout.
❏
2. Locate the six brushless motor mount box pieces.
Glue the back piece and the four side pieces together as
shown. The tabs on the pieces will all interlock together.
❏
3. Install four 3mm blind nuts into the brushless motor
mount box front piece. Use a 3mm x 10mm screw and a
3mm fl at washer to draw them tight into the holes.
❏
4. Attach the brushless motor mount box to the fi rewall
using four 3mm x 16mm machine screws, four 3mm fl at
washers and threadlocking compound.
❏
5. Install the brushless motor onto the aluminum motor mount
(included with the motor) using four 3mm x 8mm machine
screws (included with the motor) and threadlocking compound.
If you haven’t done so already, install the prop adapter using the
hardware included with the motor. Glue the front adapter piece
to the brushless motor mount box as shown.
❏
6. Attach the aluminum motor mount to the brushless
motor mount box using four 3mm x 10mm machine screws,
four 3mm lock washers, and four 3mm fl at washers.
