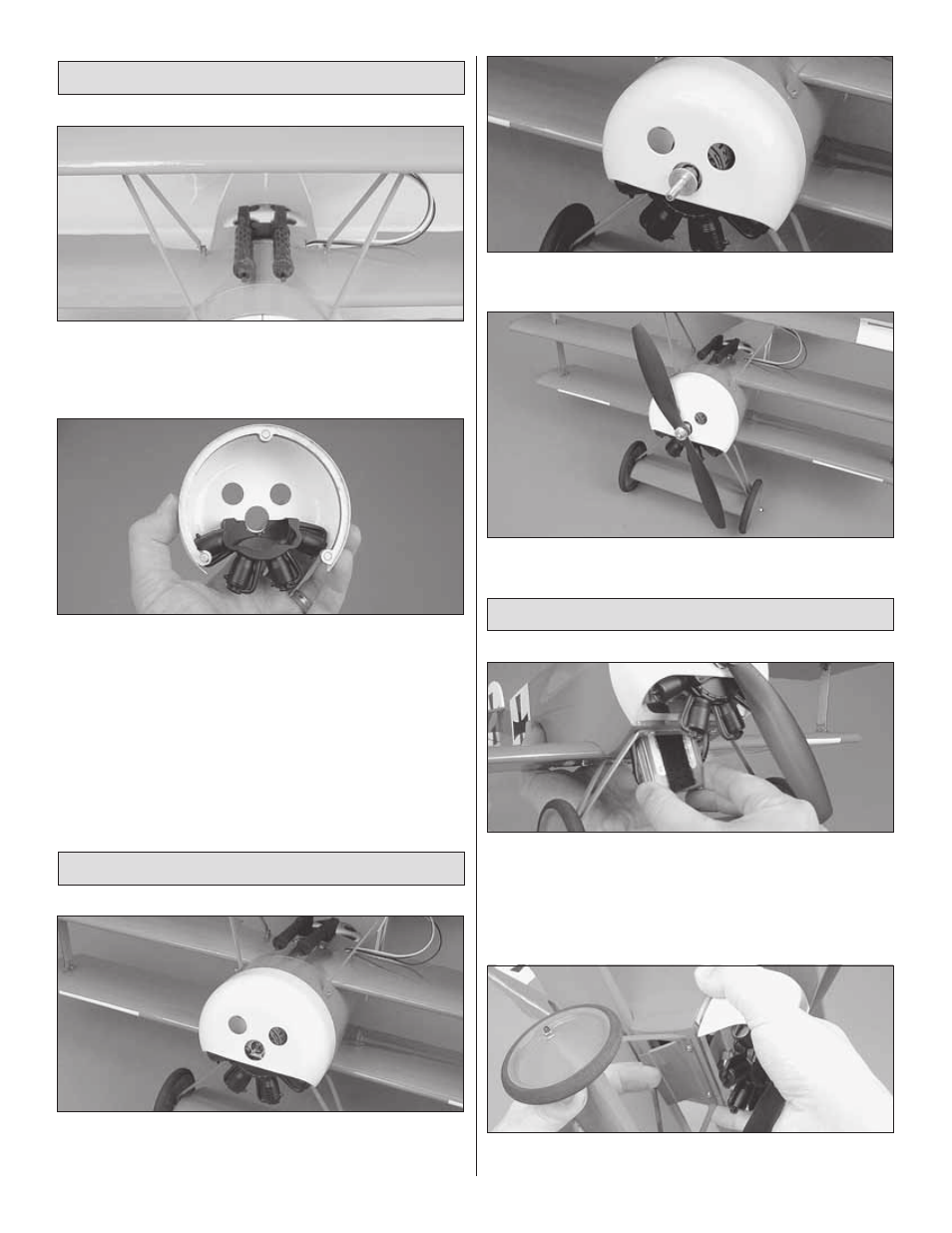

Install the Machine Gun & Dummy Engine

❏

1. Remove a 13mm x 13mm [1/2" x 1/2"] square of

covering from the top of the fuse in front of the cockpit and
use CA to attach the machine gun mount. Glue the machine
guns in place as shown.

❏

2. Use Medium CA to glue the dummy engine in place on

the cowl as shown.

Install the Cowl & Propeller

❏

1. The cowl is held on with three small but powerful

magnets. Put the cowl in place so that the motor shaft is
centered in the opening as shown.

❏

2. Slide the prop shaft and collet onto the motor shaft. The

collet has a tapered hole through it.

❏

3. Install a 10" x 4.5" propeller. Install the prop washer and

prop nut and tighten the nut securely.

Install the Battery

❏

1. Cut a 20mm [3/4"] long piece of hook and loop material

(not included). Glue the rough piece (hook side) to the
battery tray. Glue the 20mm [3/4"] soft piece (loop side) to the
back of the battery pack. Insert the battery into the battery
compartment and secure it in place by joining the hook and
loop material.

❏

2. Put the battery cover in place. Note that the lip slides

into the fuse and the aft end is held on with two magnets.
