VMA6593 13
Video input 1
Video input 2
6.5 INCH WIDE LCD MONITOR
VMA
6593
DVD VCD CD MP3
DOLBY
DIGITAL REMAIN
ANGLE CHP TRK A B REPEAT
TITLE SCN
RDM
L / R POWER
OPEN
IR
output
L and R
audio
output L and R
audio
output
6.5 INCH WIDE LCD MONITOR
VMA
6593
IR
output
Mini stereo
"Y"-cable
(not supplied)
VA700
Video
Amplifier
Video
Output
VA700
Video
Amplifier
Video input 1
VA700
Video
Input
VA 700 Video Output
VA700
Video
Input
VA 700
Video
Output
VA 700 Video Output
WH 200
2-channel
HP Kit
VS 735 DVD
VDH 910 VCP
Video
input 2
IR input IR input
Mini stereo
"Y"-cable
(not supplied)
Mini stereo extention (not supplied)

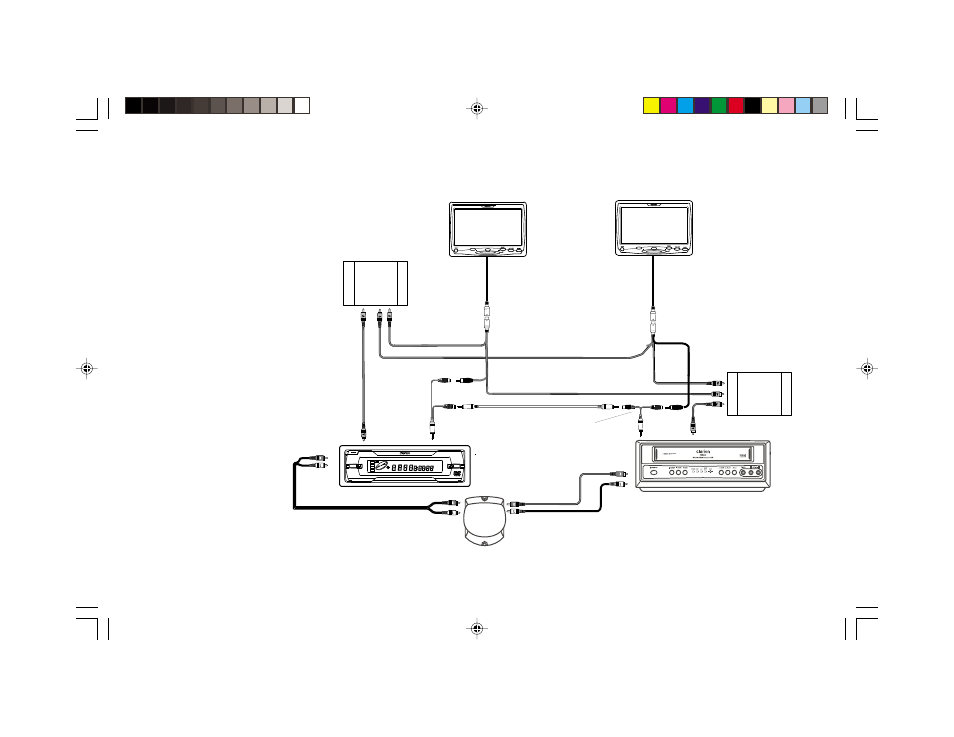

Two VMA6593 monitors, with a VS735 DVD Player, a
VDH910 VCP, and the WH200 Two-channel Wireless
Headphone kit.
Notes:
•
This system requires two 3.5mm
stereo “Y” cables, Radio Shack
P/N 42-2463. These are used to
allow the IR command lines to be
shared between both source units
and both monitors. A 3.5mm male-
to-male extension may also be
required (P/N varies by length).
•
The WH200 Two-channel
Wireless Headphone Kit allows
headphone users to independently
select from two different audio
sources.
•
Two VA700 Video Amplfiers are
used to allow two monitors to
operate from one video output.
•
Clarion also makes several
audio integration and video
switching products for more
complex installations - see
your Clarion dealer for more
information on these products.
