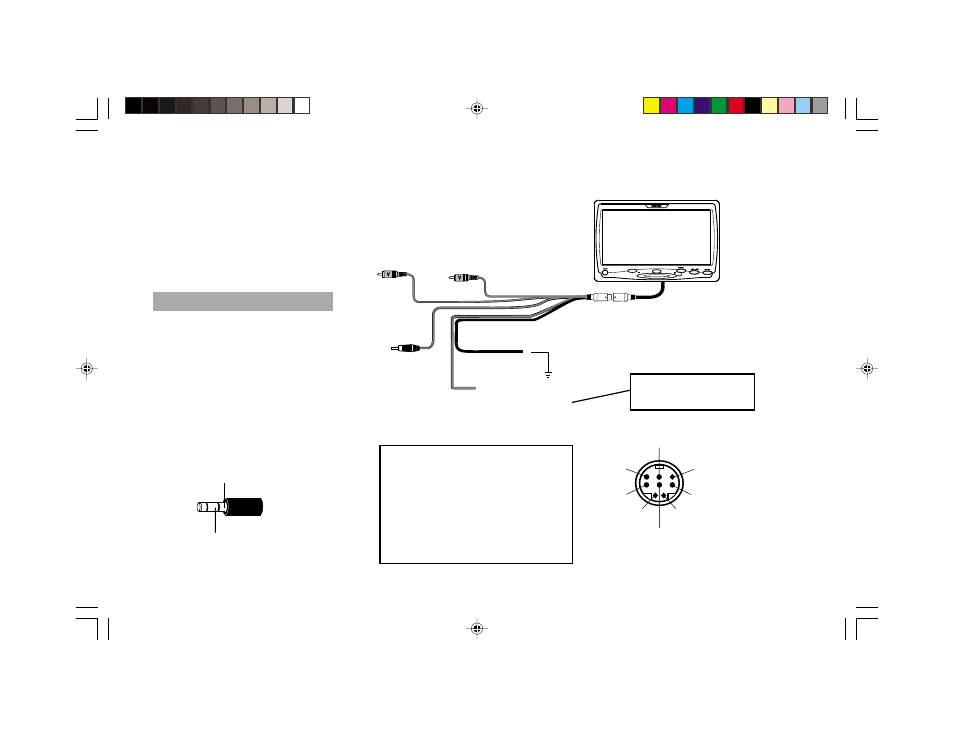

VMA6593 Connections
Black -
Ground
IR
receiver
output
Red
+12V Accessory
Video input 2
Video
input 1
6.5 INCH WIDE LCD MONITOR
Clarion
VMA
6593
1
2
3
4
5
6
7
8
DIN Connector Pin Assignments
P i n
Description
1
Red 12V (+) ACC
2
Infrared receiver signal
3
Black Ground (-)
4
Yellow Video input 1
5
Video signal ground
6
Not used
7
Yellow video input 2
8
Not used
ALWAYS use a 3A fuse
on this connection!
CAUTION!
Some non-Clarion automotive DVD
and VCP source units use a similar
connector for an external IR re-
ceiver, but use different pin polarity
than the VMA6593! Connecting non-
Clarion source equipment to this
connector could cause equipment
damage not covered by the war-
ranty!
IR connector polarity:
(+) V ACC
IR DATA LINE
