VMA6593 11

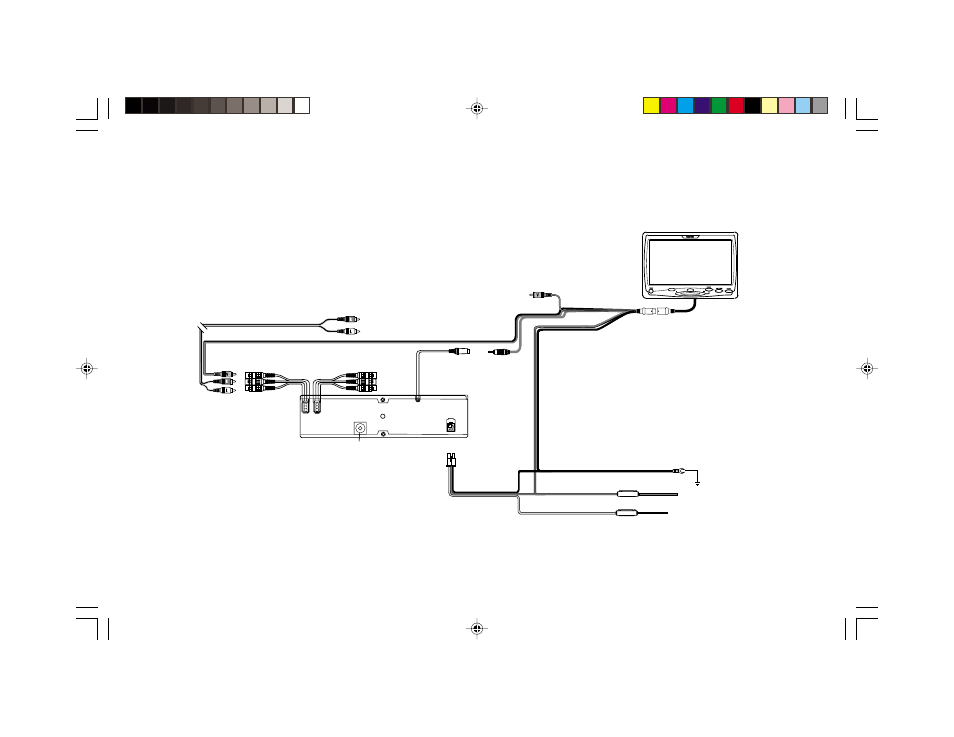

VMA6593 Monitor with VS735 DVD Player
Yellow +12V Constant Power
Black - Ground
Video output -
to monitor
Audio output - to head unit with volume control
or Clarion FM200 FM Modulator
VS 735
IR input
Red +12V Accessory
Power Harness Optical
digital
output
A/V Auxiliary inputs
A/V Output
Video input 2
Video input 1
Video
input 1
Red +12V
Accessory
Black -
Ground
6.5 INCH WIDE LCD MONITOR
Clarion
VMA
6593
