Page 4
4
1
5
4
24
22
19
17
15
14
16
18
21
20
25
23
18
2
3
6
11
7
8
9
13
12
10

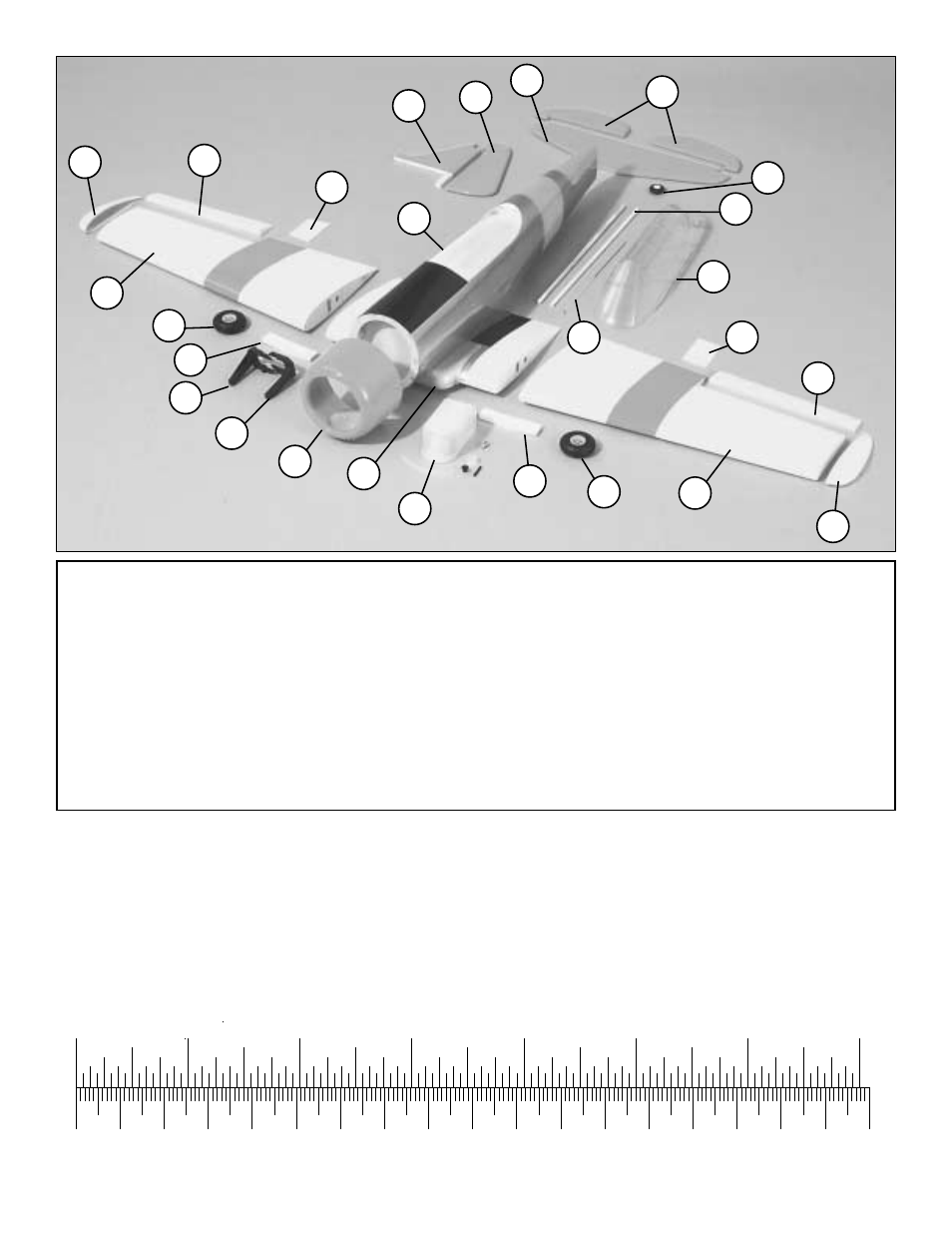

Key #
Description
Qty
1 .......Fuselage . . . . . . . . . . . . . 1
2 .......Left Wing Panel . . . . . . . . 1
3 .......Left Wing Tip . . . . . . . . . . 1
4 .......Left Aileron . . . . . . . . . . . . 1
5 .......Left Aileron Servo Hatch . . 1
6 .......Canopy. . . . . . . . . . . . . . . 1
7 .......Tail Wheel. . . . . . . . . . . . . 1
8 .......Pushrods . . . . . . . . . . . . . 2
9 .......Pushrod Wire w/guide . . . . 1
10 ......Elevator . . . . . . . . . . . . . . 2
11 ......Stabilizer . . . . . . . . . . . . . 1
12 ......Rudder . . . . . . . . . . . . . . . 1
13 ......Fin . . . . . . . . . . . . . . . . . . 1
14 ......Right Aileron Servo Hatch. 1
15 ......Right Aileron. . . . . . . . . . . 1
16 ......Right Wing Tip . . . . . . . . . 1
17 ......Right Wing Panel . . . . . . . 1
18 ......Main Wheels. . . . . . . . . . . 2
19 ......Right Engine Mount Half . . 1
20 ......Left Engine Mount Half . . . 1
21 ......Right Wing Joiner . . . . . . . 1
22 ......Left Wing Joiner . . . . . . . . 1
23 ......Wing Center Section . . . . . 1
24 ......Fuel Tank Assembly . . . . . 1
25 ......Cowling . . . . . . . . . . . . . . 1
Replacement Parts
Canopy. . . . . . . . . . GPMA2080
Cowling . . . . . . . . . GPMA2081
Wing Set . . . . . . . . GPMA2082
Tail Set . . . . . . . . . . GPMA2083
Fuselage Set . . . . . GPMA2084
Landing Gear Set . . GPMA2085
0"
1"
2"
3"
4"
5"
6"
7"
0
10
20
30
40
50
60
70
80
90
100 110 120 130 140 150 160 170 180
Inch Scale
Metric Scale
1/64" =
.4
mm
1/32" =
.8
mm
1/16" =
1.6
mm
3/32"
=
2.4 mm
1/8"
=
3.2 mm
5/32"
=
4.0 mm
3/16"
=
4.8 mm
1/4"
=
6.4 mm
3/8"
=
9.5 mm
1/2"
=
12.7 mm
5/8"
=
15.9 mm
3/4"
=
19.0 mm
1"
=
25.4 mm
2"
=
50.8 mm
3"
=
76.2 mm
6"
= 152.4 mm
12"
= 304.8 mm
18"
= 457.2 mm
21"
= 533.4 mm
24"
= 609.6 mm
30"
= 762.0 mm
36"
= 914.4 mm
METRIC CONVERSIONS
