Page 12 of 20 CDI-9323 User Manual
••••
(V 0.5)
Using the Cobalt 1858-rm doublewide rear I/O module gives access to all 8 AES inputs and all 8 AES
output BNC’s (2 channels per BNC).

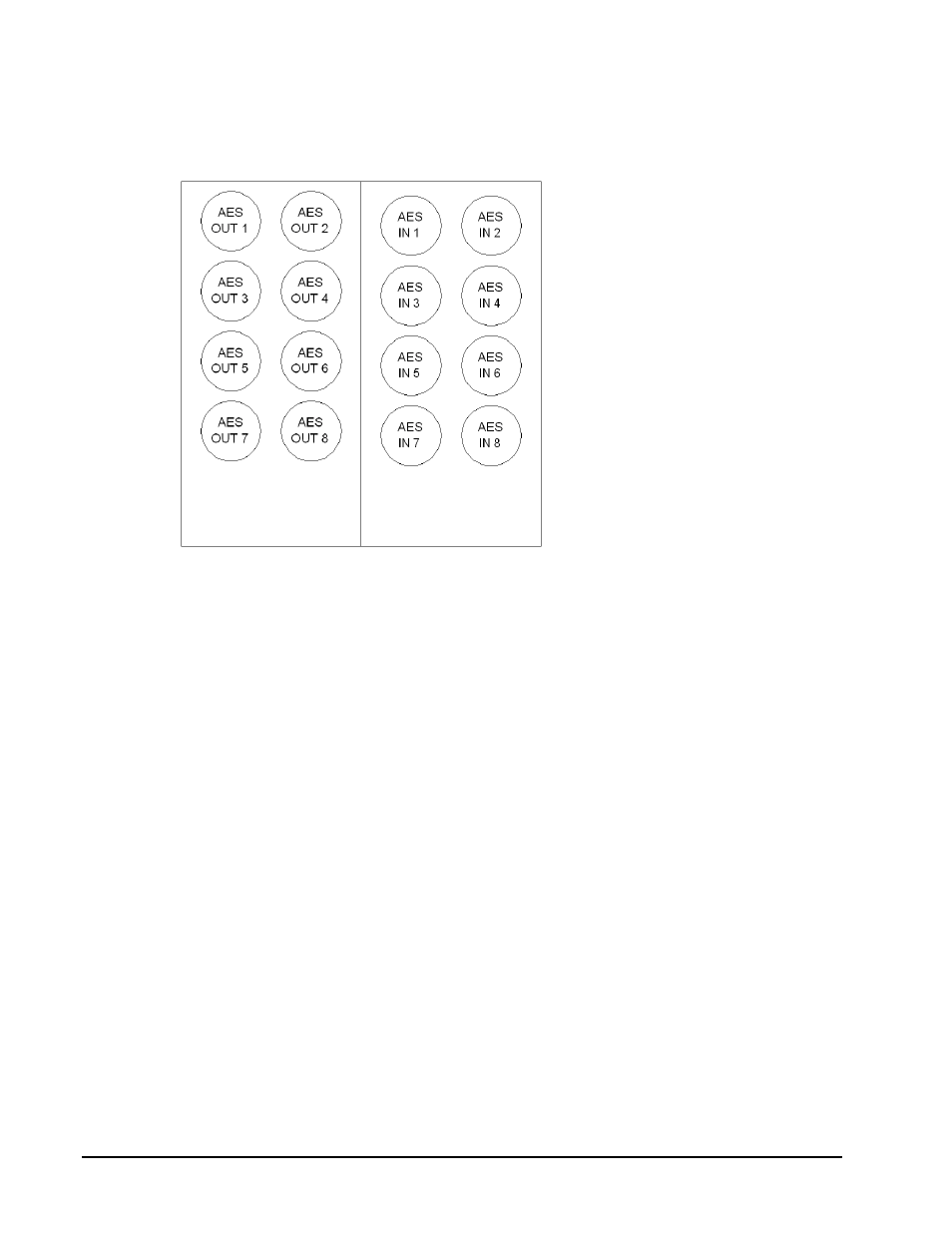

Figure 4. BNC Designations for Rear IO Module 1858-RM
NOTE: If using the 1858 rear module, switches S11-S14 must all be switched to IN.
