26

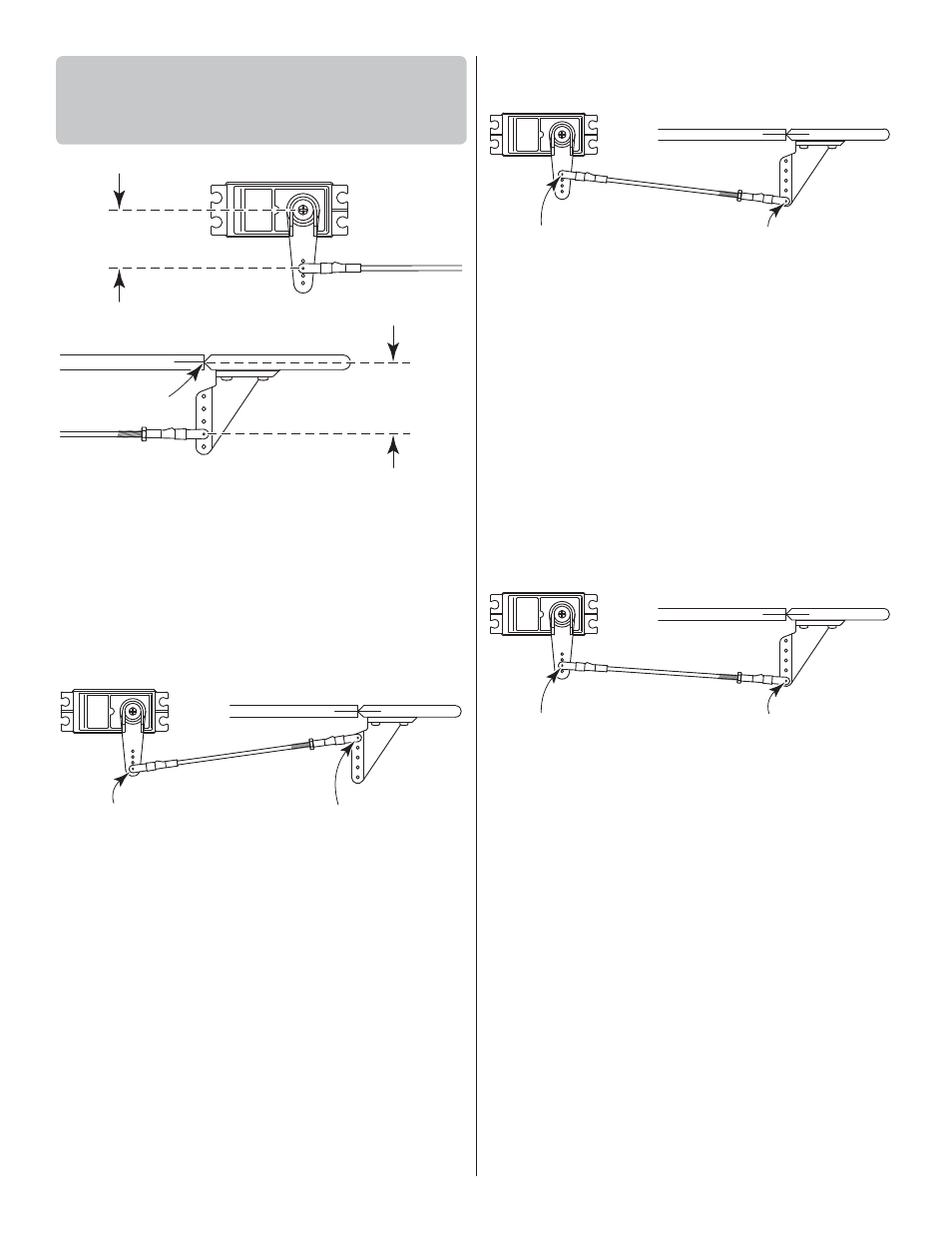

Proper Pushrod Hookup;

Avoiding Flutter, Maximizing Servo

Output Torque

SERVO ARM

OFFSET

Pivot point

CONTROL

HORN OFFSET

When connecting pushrods and setting up your control throws,

it is critically important to use proper pushrod geometry—
that is the distance from the pushrod on the servo arm to the
center of the output shaft (servo arm offset) compared to
the distance from the pushrod on the control horn to the pivot
point (control horn offset).

Pushrod far out

on the servo arm…

…pushrod close in

on the control horn.

Extremely Dangerous

Pushrod Hookup

One particularly dangerous situation arises when the pushrod
on the servo arm is too “far out” and the pushrod on the
control horn is too “close in.” This setup is usually chosen by

pilots who are trying to achieve maximum, “monster” control
throws for 3D fl ight. But with your pushrods set up this way,
any free play (slop) in the linkages or servo will be greatly
magnifi ed, possibly causing destructive control surface fl utter.

Additionally, if you have to turn your ATV’s way down for

“normal” throw, the result will be poor resolution and poor

servo holding/centering capabilities. More importantly, too
much force may be transmitted back to the servo, possibly
causing control surface blowback, stripped servo gears or
stripped servo arms—the latter two likely causing a crash.

“Closest in”
on servo arm

“Farthest out”
on control horn

Preferred

Pushrod Hookup

Here is an optimum pushrod setup—the pushrod is “close
in” on the servo arm and “far out” on the control horn. This
situation gives the greatest mechanical advantage of the
servo over the control surface which will increase the servo’s
centering capabilities and output torque, minimize any free
play in the system and allow high ATV settings for optimum
servo resolution and positive control “feel.” Note: When the
pushrod is “close in” on the servo arm, make certain the servo
arm can travel through its full range of movement without the
pushrod (or clevis or other type of connector) interfering with
the servo arm, output shaft or servo case.

Move the pushrod

farther out on

the servo arm…

…But leave the pushrod

in the farthest out location

on the control horn.

Acceptable

Pushrod Hookup

If the optimum situation doesn’t provide enough control throw,
the pushrod may be moved inward on the control horn, but
it’s better to go farther out on the servo arm because this
will introduce less free play than the alternative. Only after
moving the pushrod all the way out on the servo arm, if you
still can’t get the throw required, you’ll have to resort to moving
the pushrod closer in on the control horn. Note: If you have
a computer radio, it is always desirable to set your ATV’s to

100% (or as near 100% as possible to achieve the control throw

required). If setting up a model that requires extraordinary
control surface throw (for 3D fl ying for example), start by

“maxing-out” your ATV’s (typically 130% – 140%). Then, the

dual rates in your “normal” fl ight mode will still be acceptably
high (70% – 80%) for good servo resolution.

2. Referring to the Proper Pushrod Hookup illustrations

above, adjust the location of the pushrod on the servo
arm or on the elevator horn and program the ATVs in your
transmitter to increase or decrease the throw according to
the measurements in the control throws chart.
