Great Planes Revolver GP/EP ARF 70" - GPMA1019 User Manual
Page 9
9
[6.4mm] beyond the bend. Attach the pushrod to the servo
arm using a nylon FasLink. Thread the clevise up or down
on the pushrod as necessary to center the aileron with the
servo arm centered. When satisfi ed, slide the silicone clevis
retainer to the end of the clevise to secure it.
❏
12. Repeat steps 1-11 for the opposite wing.
BUILD THE FUSELAGE
Assemble the Tail Section
❏

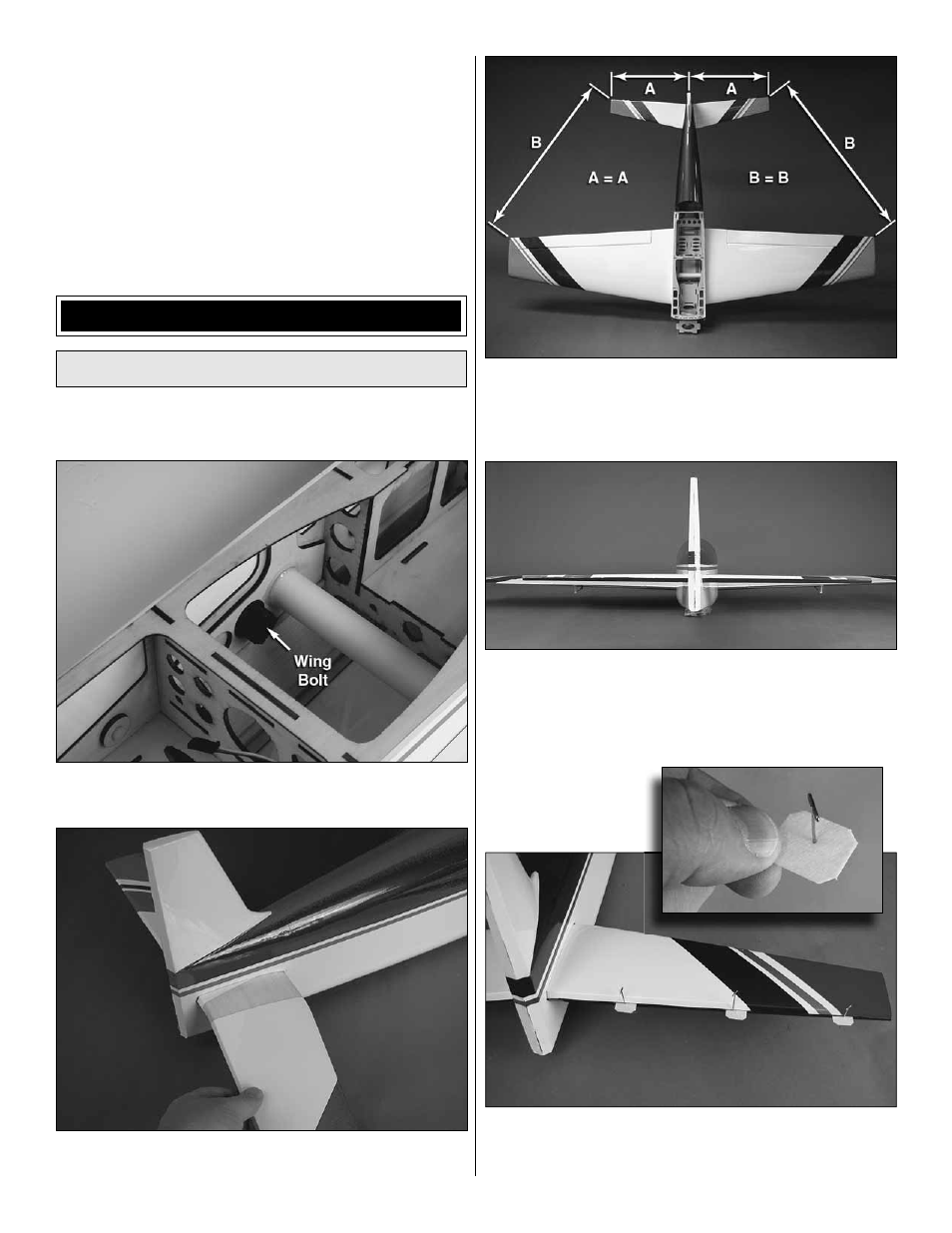

1. Slide the wing tube into the fuselage centering the
tube in the fuselage.
❏
2. Install the wing panels onto the wing tube and secure
them to the fuselage using two nylon wing bolts.
❏
3. Slide the horizontal stabilizer into the stab slot at the
aft end of the fuselage.
❏
4. Center the stab left and right in the fuselage,
using the uncovered balsa as a guide. Measure the
distance from the stab tips to the wing tips and make the
measurements equal.
❏
5. View the model from behind and confi rm that the
stab is parallel with the wing panels. If not, lightly sand the
stab slot to adjust the position of the stab. Use 30-minute
epoxy to glue the stab into the fuselage. Use denatured
alcohol to clean up any excess epoxy. Allow the epoxy to
cure undisturbed.
❏ ❏
6. Locate three hinges. Insert a pin through the center
of each hinge and then insert the hinge into the hinge slots
in the trailing edge of the stabilizer.
