6

Order No.

Description

NOTE

REPLACEMENT PARTS LIST

Fuselage (No Canopy or Hatch)
Wing Set
Tail Set
Cowl
Landing Gear
Wheel Pants
Canopy
Spinner
Decal
Wing Tube

GPMA3275
GPMA3276
GPMA3277
GPMA3278
GPMA3279
GPMA3280
GPMA3281
GPMA3282
GPMA3283
GPMA3284

Full-size plans are not available.
You can download a copy of this
manual at www.greatplanes.com.

KIT INSPECTION

Before starting to build inspect the parts to make sure
they are of acceptable quality. If any parts are missing or
are not of acceptable quality, or if you need assistance
with assembly, contact Product Support. When reporting
defective or missing parts, use the part names exactly as
they are written in the Kit Contents list.

Great Planes Product Support
3002 N. Apollo Drive, Suite 1
Champaign, IL 61822

Telephone: (217) 398-8970, ext. 5
Fax: (217) 398-7721

E-mail: [email protected]

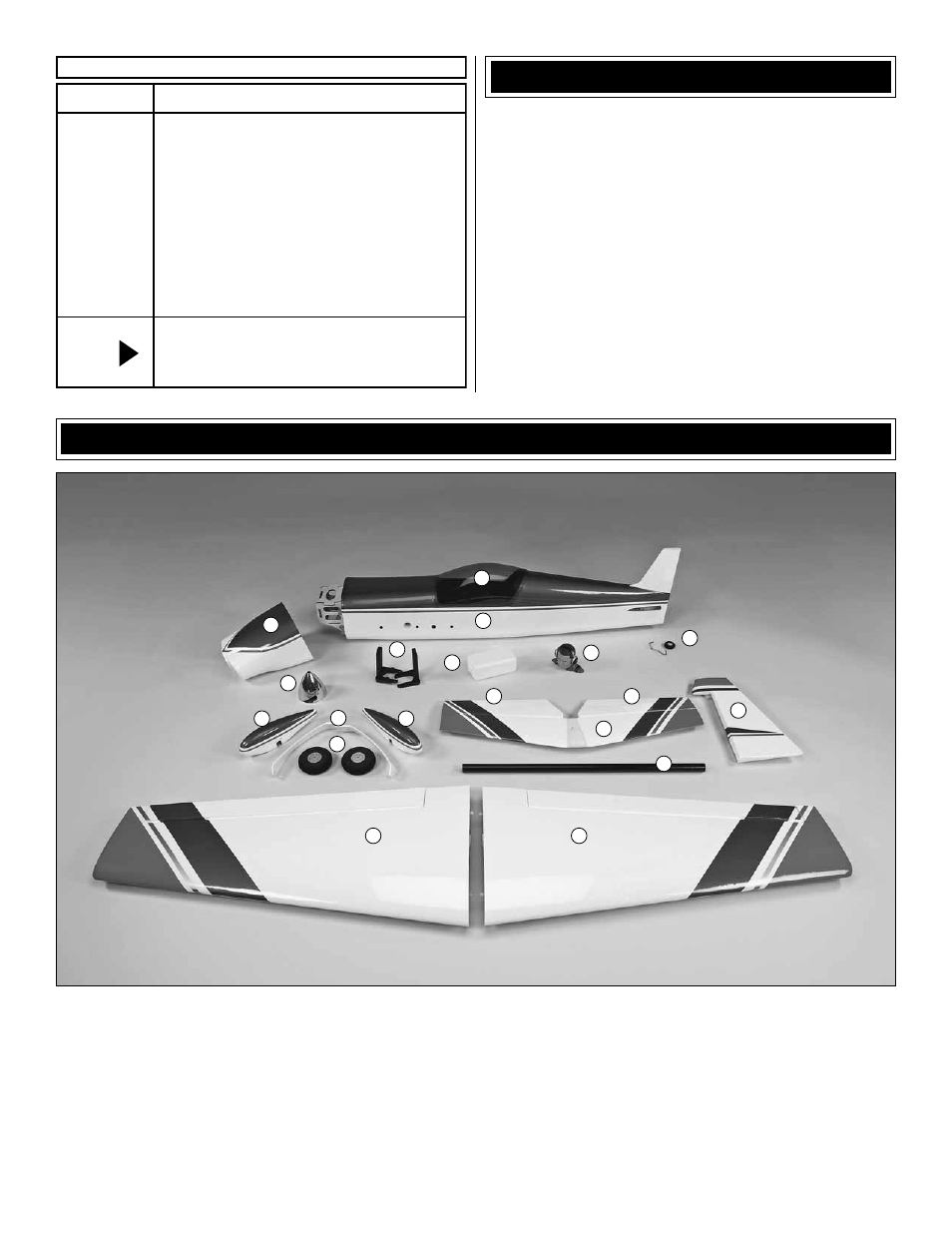

KIT CONTENTS

1. Fuselage
2. Cowl
3. Canopy Hatch
4. Left Wing Panel w/Aileron
5. Right Wing Panel w/Aileron
6. Horizontal Stabilizer

7. Elevator Halves (L&R)
8. Composite Wing Tube
9. Wheel Pants (L&R)
10. Landing Gear (L&R)
11. Main Wheels (2)
12. Spinner

13. Engine Mount
14. Fuel Tank
15. Rudder
16. Tail Wheel
17. Pilot Figure

1

6

2

4

9

9

10

11

12

13

14

15

16

17

8

7

7

3

5
