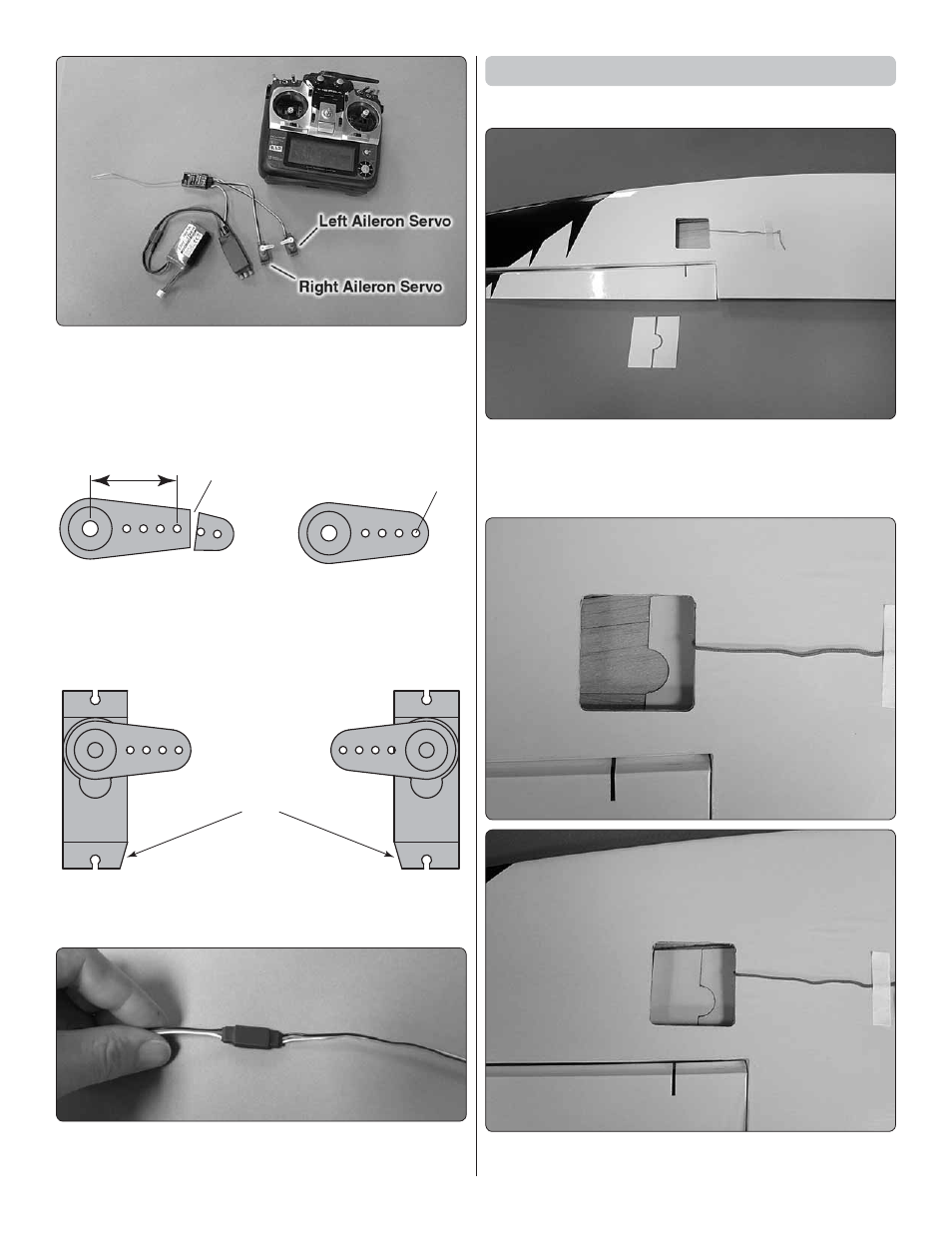

6

Note: If you do not have a radio capable of mixing the aileron
servos electronically, a Y-harness will have to be used to
connect both servos into a single channel in the receiver.

Then, spoilerons will not be an option.

7/16"

[11mm]

Cut

Drill #55

(.052")

2. Cut off the servo arms past the holes nearest 7/16"

[11mm] out from center. Drill out the pushrod holes in the
servo arms with a #55 (.052") drill. Fasten the arms to the
servos with the screws—also use threadlocker if the output
shaft is metal.

Trim

3. Slightly trim the servo mounting tabs so they won’t

interfere with the hatch covers.

4. Connect a 12" [ 300 mm] servo extension to each servo.

Secure the plugs with 1/2" [13 mm] shrink tubing, tape or clips.

Install the Aileron Servos

Start with the right wing so yours looks like the photos.

1. Use medium-grit sandpaper to roughen and clean both

sides of the plastic wing skin doublers so glue will adhere.

Test fi t the doublers to the top skin in the aileron hatch. Make

any adjustments to the doublers for a good fi t.

2. Glue one, then the other doubler to the top wing skin

with medium CA.
