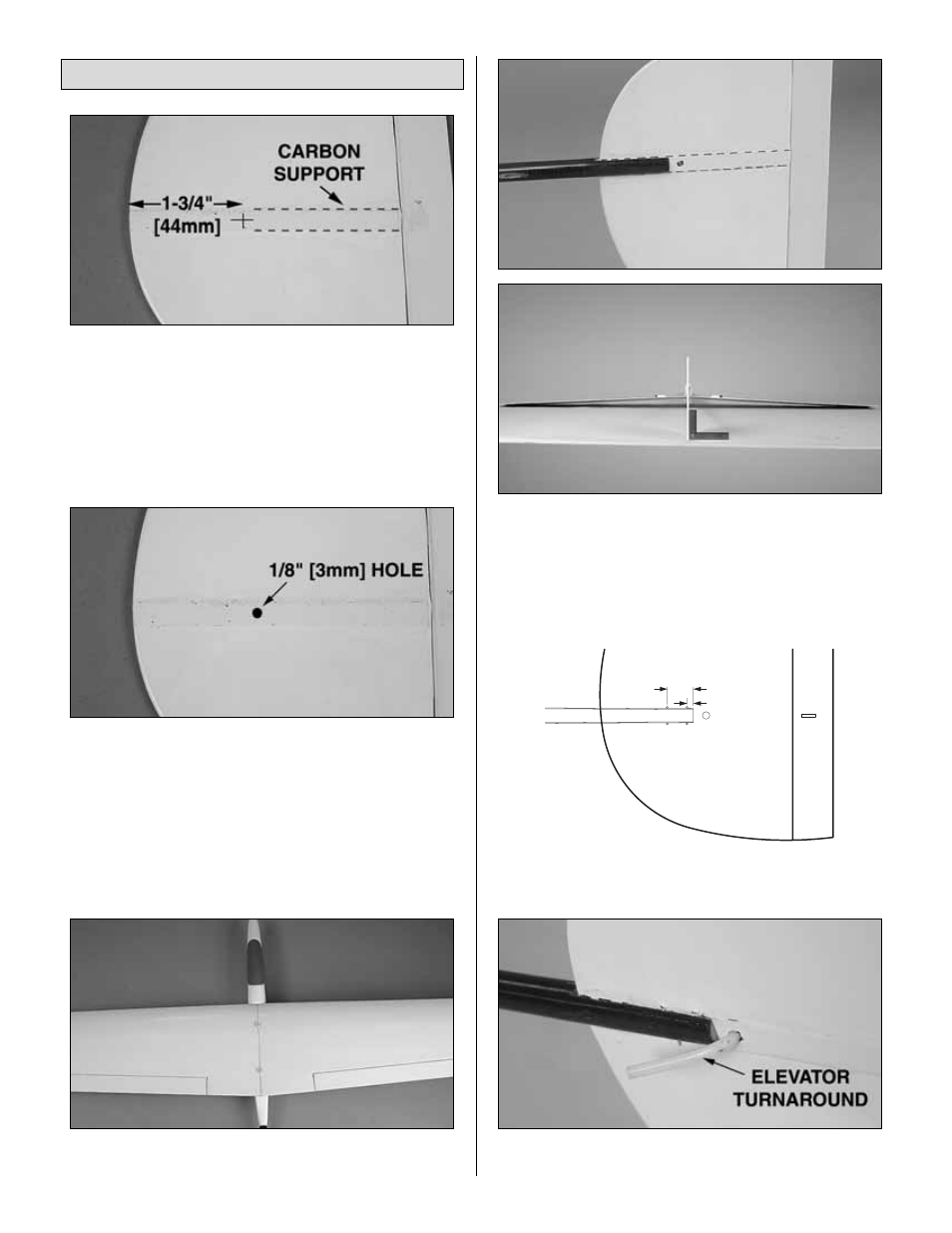

1. Mark the fin 1-3/4" [44mm] from the LE and centered
on the carbon supports.
❏
2. Drill a 1/8" [3mm] hole through the fin on the mark
you made.
❏
3. Bolt the wing to the fuse with the two 8-32 x 1-1/4"
[30mm] nylon bolts.
❏
4. Place the plane upside down on a flat work surface.
Align the carbon support in the fin with the carbon fuse.
Check that the fin is perpendicular to the work surface. If the
fin is not perpendicular adjust the fin slot so that it is
perpendicular. Glue the fin to the fuse with thin CA. DO NOT
remove the covering from the fin.
❏
5. Drill four 1/16" [1.6mm] holes in the locations shown in
the sketch.
❏
6. Slide the plastic elevator turnaround through the 1/8"
[3mm] hole in the rudder.
1/8" [3mm]
1/2" [13mm]
Attach the Tail
