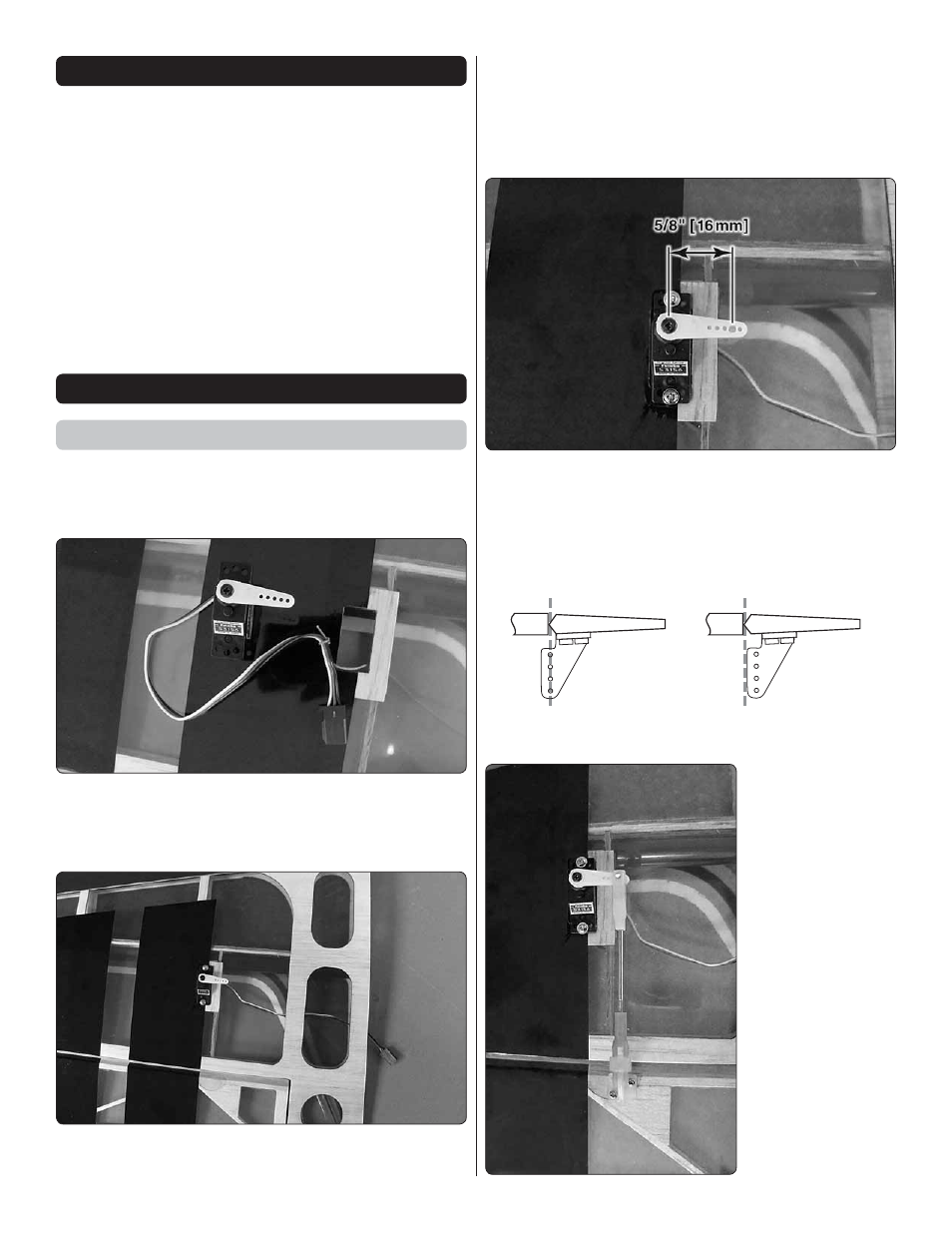

6

PREPARATIONS

1. If you have not done so already, remove the major

parts of the kit from the box and inspect for damage. If any
parts are damaged or missing, contact Product Support at
the address or telephone number listed in the “Kit Inspection”
section on page 4.

2. Remove the tape and separate the elevators from the

stab. Use a covering iron with a covering sock on medium
heat to tighten the covering on the wings, fuselage, etc. if
necessary. Apply pressure over sheeted areas to thoroughly
bond the covering to the wood. Caution: The Factor 3D EP

ARF was designed to be strong where needed, but light weight

for excellent fl ight performance. Care must be taken when
assembling the plane to avoid damage.

ASSEMBLE THE WINGS

Install the Ailerons

Do the right wing fi rst so your work matches the photos
the fi rst time through.

Install the Aileron Servos and Pushrods

❏ ❏

1. Inside the servo bay a string is taped. Carefully

remove the tape and string from the servo bay. Tie the string
to the servo lead. Pull the string and the servo lead through
the wing. Untie the string from the lead.

❏ ❏

2. Install the servo into the servo opening. Drill a 1/16"

[1.6 mm] hole though the servo mount, into the wood in the

wing. Install and then remove a servo mounting screw into
each of the holes you have drilled. Apply a drop of thin CA

into the holes to harden the threads. Once the glue has cured
install the servo into the servo opening. Center the servo and
then install a servo arm as shown. The arm should be pointing
towards the wing root.

❏ ❏

3. Drill a 5/64" [ 2 mm ] hole through the hole in the servo

arm as shown.

❏ ❏

4. Thread a nylon clevis, 20 turns, onto a 6" [152 mm]

wire pushrod.

Hinge Line

Hinge Line

Correct

Incorrect

Refer to this picture for steps 5-7.

❏ ❏

5. Cut the

mounting plate from
the control hor n.

Attach the clevis in the

outer hole of a nylon
control horn. Place
the control horn in line
with hole you drilled in
the servo arm. When
positioned properly
the control horn will
rest on a hardwood
plate in the aileron.
Mark the location of
the mounting holes
onto the aileron. Drill
a 1/16" [1.6 mm ] hole
on the marks, drilling
through the plywood
plate but not through
the top of the aileron.
