t X 6 7 0 i n s t r u c t i o n m A n uA l PA G E 9

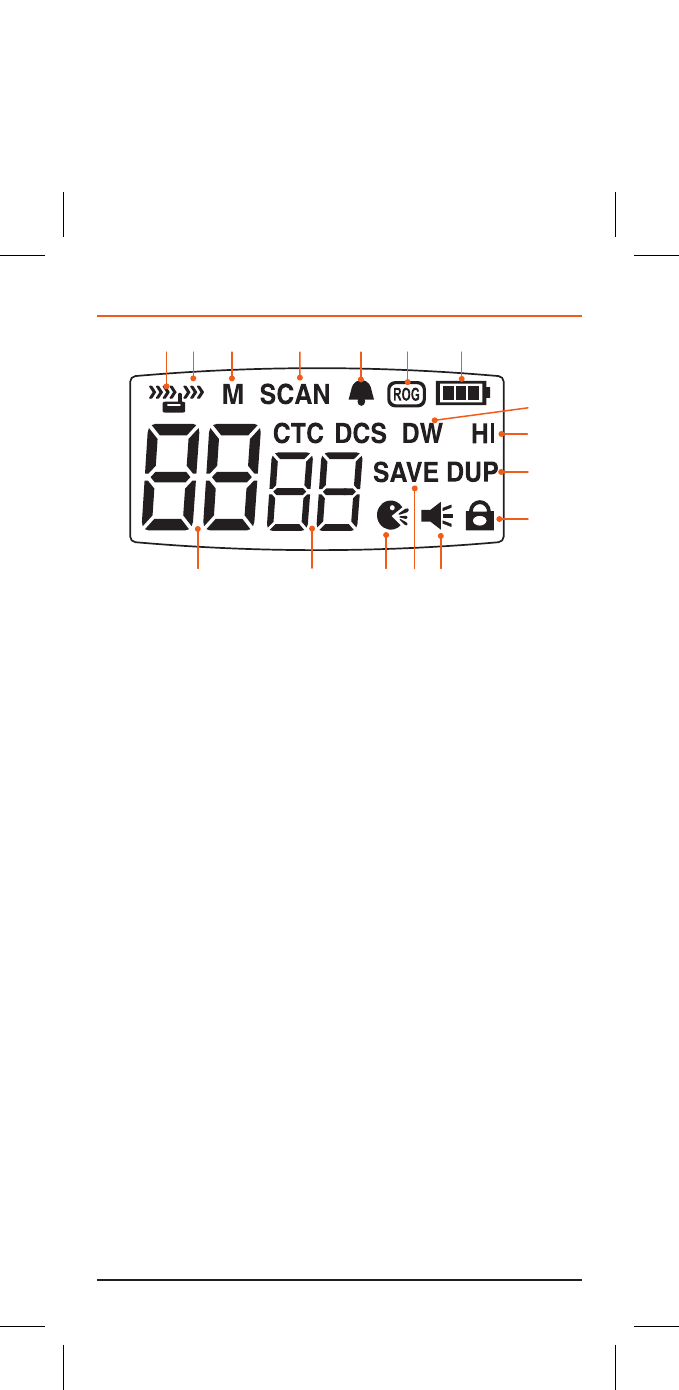

lCD DisPlAY
1 Receiver Busy Icon:
Appears when receiving.
2 Transmit Icon: Appears
when transmitting.
3 Memory Icon: Appears
when the selected channel
is stored in the scan
memory.
4 Scan Indicator Icon:
Appears when scAn is
enabled and the radio is
scanning.
5 Button Beep Tone Icon:
Appears when the button
beep confirmation tone is
selected.
6 Roger-Beep Tone Icon:
Appears when the roger-
Beep tone is enabled.
7 Battery Level Icon:
indicates battery charge
level. Flashes when battery
is almost empty.
8 Dual Watch Icon: Appears
when Dual Watch mode is
active.
9 High Power Icon: Appears
when High transmitter
power is selected.
10 Duplex Icon: indicates
that Duplex communication
has been enabled.
11 Key-Lock Icon: Appears
when the keypad is locked.
12 Monitor Icon: Appears
when monitor function is
activated.
13 Power Save Icon:
Appears when the radio is
in the power save mode.
14 Voice Activated
Transmission (VOX)
Icon: Appears when the
VoX mode is activated.
15 CTCSS Tone: Displays the
selected ctcss tone
(from 00 – 38) on the
selected channel.
16 Channel Display:
indicates the channel
number in use.
1 2 3 4 5 6 7
8
10
11
12 13 14 15 16
9
External
speaker
mic
scan/
memory
Volume
on/off
channel
up
