INSTALLATION
NOTE: Your GX600D is designed for connection to negative
earth electrical systems only.
Selecting a location
It is advisable to spend a little time selecting the best
location for your GX600D. The mounting bracket can be
rotated above, below or behind the radio enabling the radio
to be mounted in a wide range of locations. In addition,
using the optional flush mounting kits (MK600, MK001,
MK002) the GX600D can be mounted directly in a panel or
dashboard. The flush mounting kits allow for installation or
replacement of any existing VHF radio.
UPRIGHT OR OVERHEAD MOUNTING
Keep the following points in mind when choosing a location.
• The GX600D is designed to meet the IP67 specification
which allows for direct water spray. However, we
recommend you select a location that will minimise
excessive exposure to water splashes or continuous rain.
• Select a location that won’t expose your radio to
continuous direct sunlight which could cause overheating
or UV degradation.
• Ensure that the location allows a free flow of air around
the heat sink on the back of the radio.
• The microphone and all controls should be readily
accessible and the loud speaker easily heard from the
normal steering position. An extension speaker (SPK600)
can be installed if required.
• For best results connect the battery leads directly to the
vessel’s battery. If you need to extend the power leads to
reach the battery use heavy insulated automotive wire of
at least #10 gauge.
• Components and currents in the radio create magnetic
fields. To avoid interference to ships compasses or
autopilot sensors, the GX600D should be mounted at
least 300 mm from such equipment.
INSTALLING THE UNIT
After choosing your location, hold the unit with the
mounting bracket attached into the desired position and
mark the location with a pencil. Remove the mounting
bracket from the radio and drill the mounting holes. Bolt or
screw the bracket in place using hardware suitable for the
mounting surface. The unit is supplied with stainless steel
screws; however, if the mounting surface is unsuitable for
screws you may need to replace these with stainless steel
bolts. Remember the fixings for overhead mounted units
may have to withstand heavy pounding when the vessel is
in rough water or being towed on a trailer.

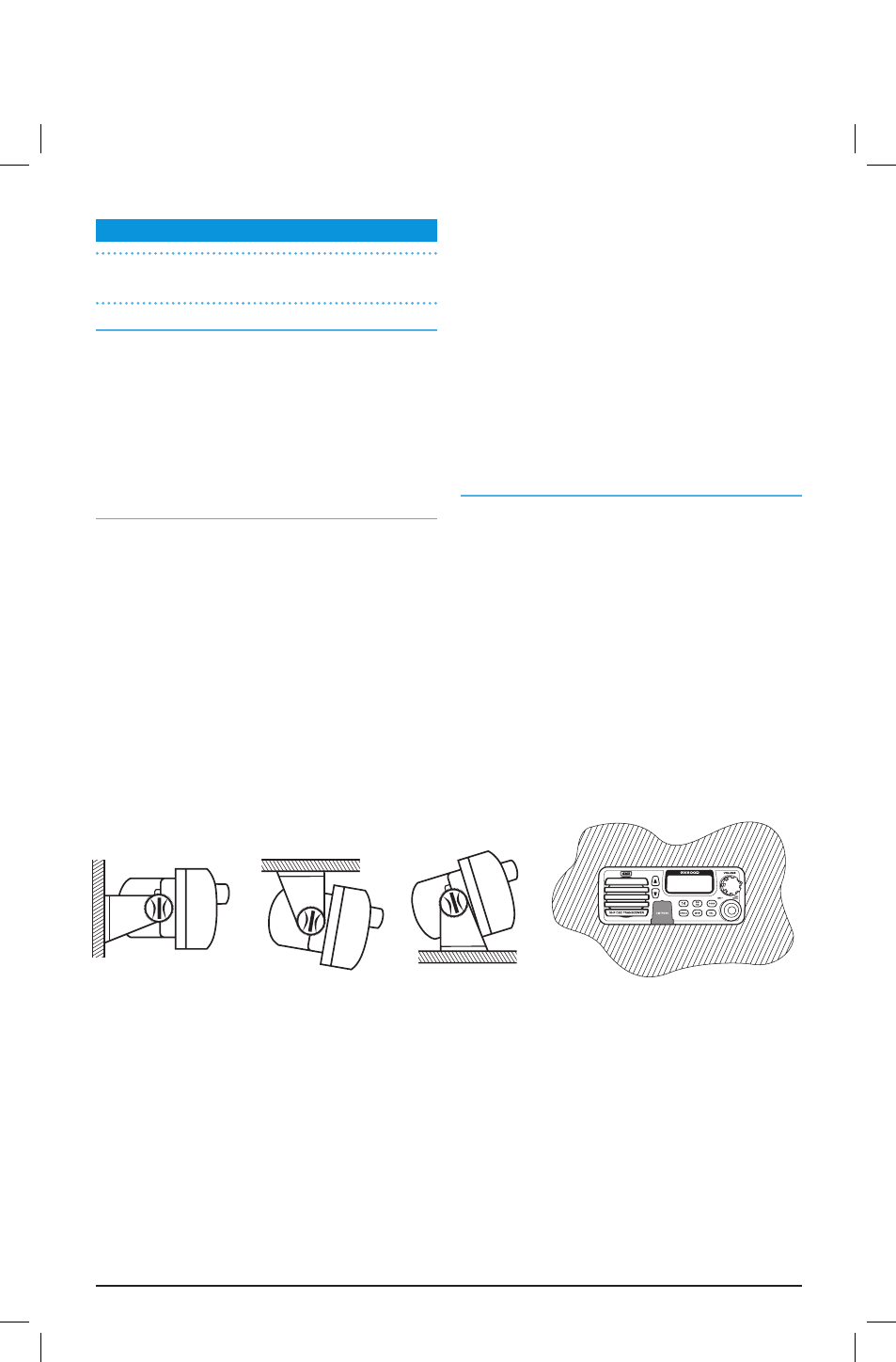

Panel Overhead Upright
Mounting Mounting Mounting
Flush Mounting (Optional MK600, MK001,
MK002 flush mounting kits available)
