System Setup System Setup

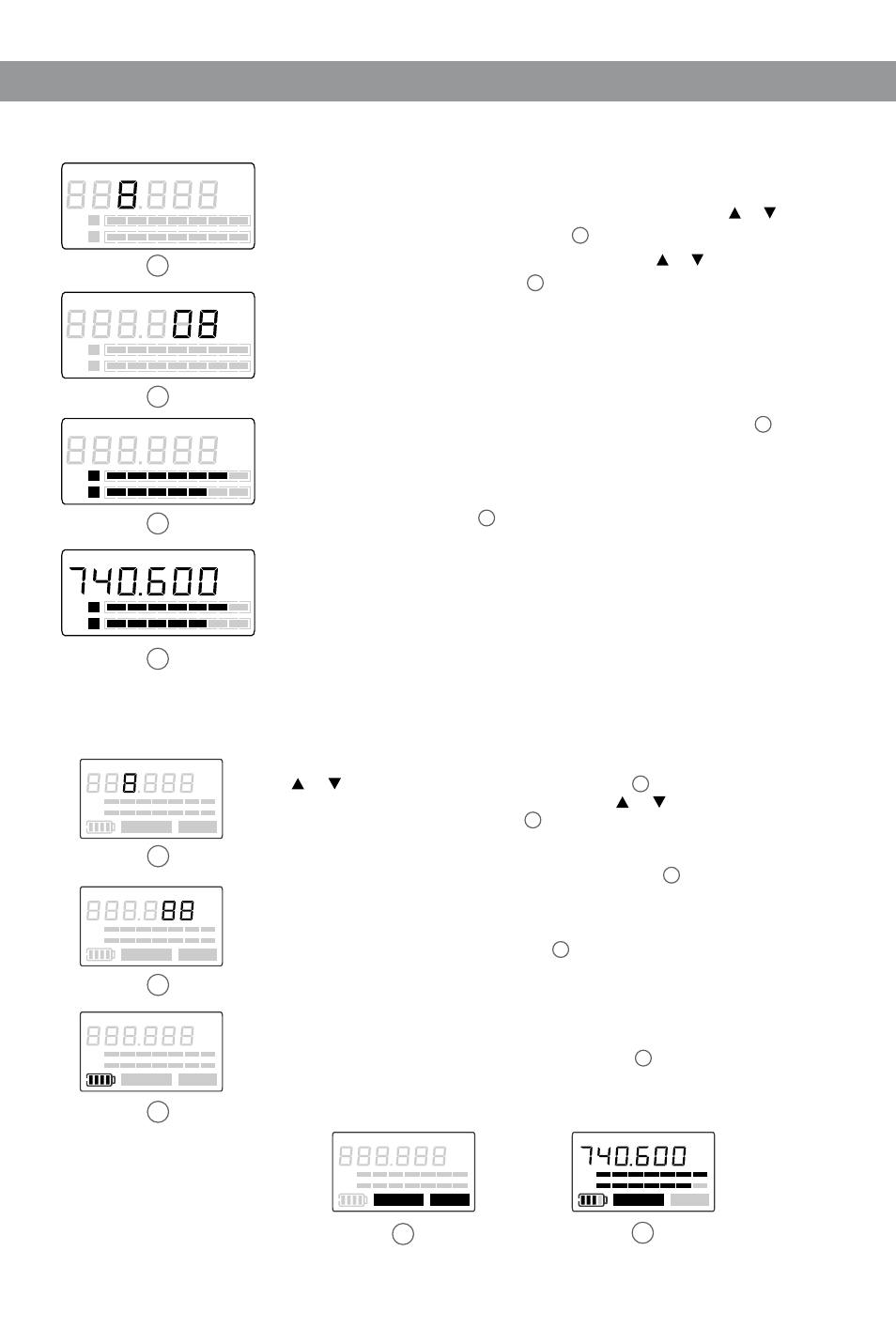

Receiver screen
Transmitter Programming:
Select a Group and/or Channel:
Press SET button. While Group number is flashing, press or
button to select a group as shown in . Then press SET button
again. While Channel number is flashing, press or button to
select a Channel, as shown in .
Note: When using multiple systems, for optimum results set all
of the systems to the same group number and select a different
channel number for each system in that group.
Audio Input Level Display:
Displays left and right channel audio input level, as shown in .
Full Display:
Displays left and right channel audio input levels and selected
frequency, as shown in .
Note: Adjust audio input levels to peak on only the loudest signals.
Body Pack Receiver Programming
Select a Group and/or Channel:
Press and hold SET button. While GROUP number is flashing, press
or button to select a Group as shown in
. Then press SET
again. While CHANNEL is flashing, press or button to
select a channel, as shown in .
Battery Status:
Five level Battery Status Indicator, as shown in . Replace batteries
when indicator starts blinking.
Stereo/Mono Mode Display:
The STEREO or MONO indicator
will automatically light to
display the type of signal being received, as selected on the
Transmitter.
Full Display:
Displays Battery Status, RF/Audio Level, Stereo/Mono
Mode and Selected Frequency, as shown in
.
