3
Headphone Jack.
Headphone Output Level Control.
Turn left to decrease the level,
turn right to increase the level.
LCD screen.
Please See (System Setup) on page 4.
Transmitter Menu Up Button.
Please See (System Setup) on page 4.

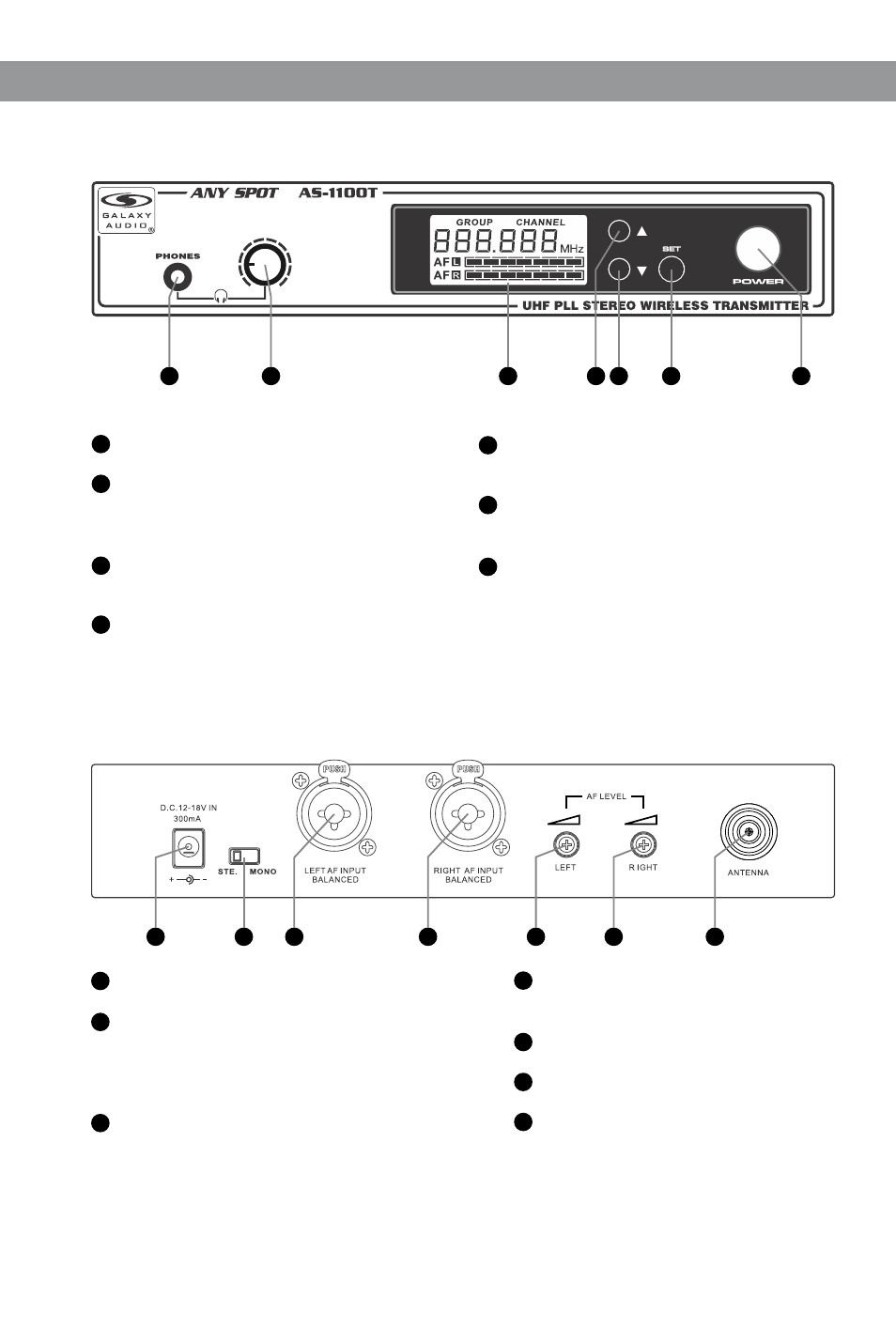

Front Panel:
Back Panel:
Transmitter Menu Down Button.
Please See (system setup) on page 4.
Transmitter Set Button.
Please See (System Setup) on page 4.
On/Off Switch.
Press and hold two seconds to turn On,
press and hold to turn Off.
AS-1100T Transmitter Features: AS-1100T Transmitter Features:
1
1
2
2
3
3
4
4
5
5
6
6
7
7
1
2
3
4
5
6
7
DC Power Input Jack.
Stereo/Mono Switch.
Stereo position preserves Left/Right
signals throughout system. Mono
position mixes Left/Right signals together.
Left Channel XLR/1/4" Combo Input Jack.
Right Channel XLR/1/4" Combo
Input Jack.
Left Channel Input Level Control.
Right Channel Input Level Control.
Antenna Jack. 50 ohms.
1 2 3 4 5 6 7
