Functions:
5
6
7
1
2
3
4

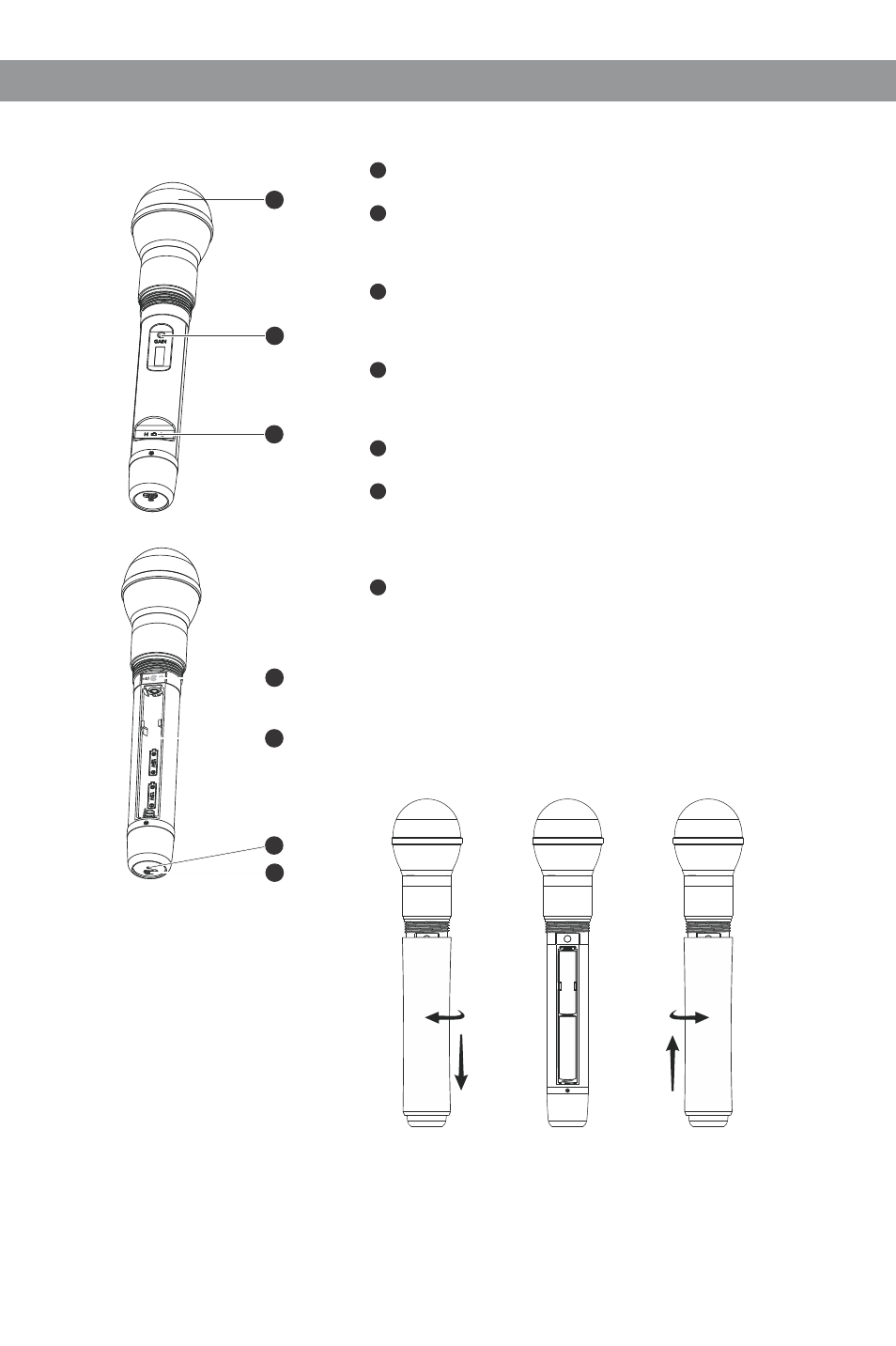

Changing Batteries:
Unscrew cover to access the Battery Tray. Observe
correct polarity markings when installing Batteries.
Expected life for two alkaline batteries is about 8 hours.
Microphone Head.
Gain (Sensitivity) Control.
Turn Left to Decrease Sensitivity.
Turn Right to Increase Sensitivity.
RF Power Level Switch.
H for High Level RF Power.
L for Low Level RF Power.
IR Window.
Receives Infrared signal to synchronize frequencies
between Receiver and Transmitter.
Battery Tray.
Power/ASC/Low Battery Indicator.
Green: Power On.
Flashing Green: IR Transmission in progress.
Red: Batteries Low.
Power On/Off Switch.
1
2
3
4
5
6
7
HH52/HH52SC Handheld Transmitter HH52/HH52SC Handheld Transmitter
