Compaq V5100 User Manual
Page 158
5–68
Maintenance and Service Guide
Removal and Replacement Procedures

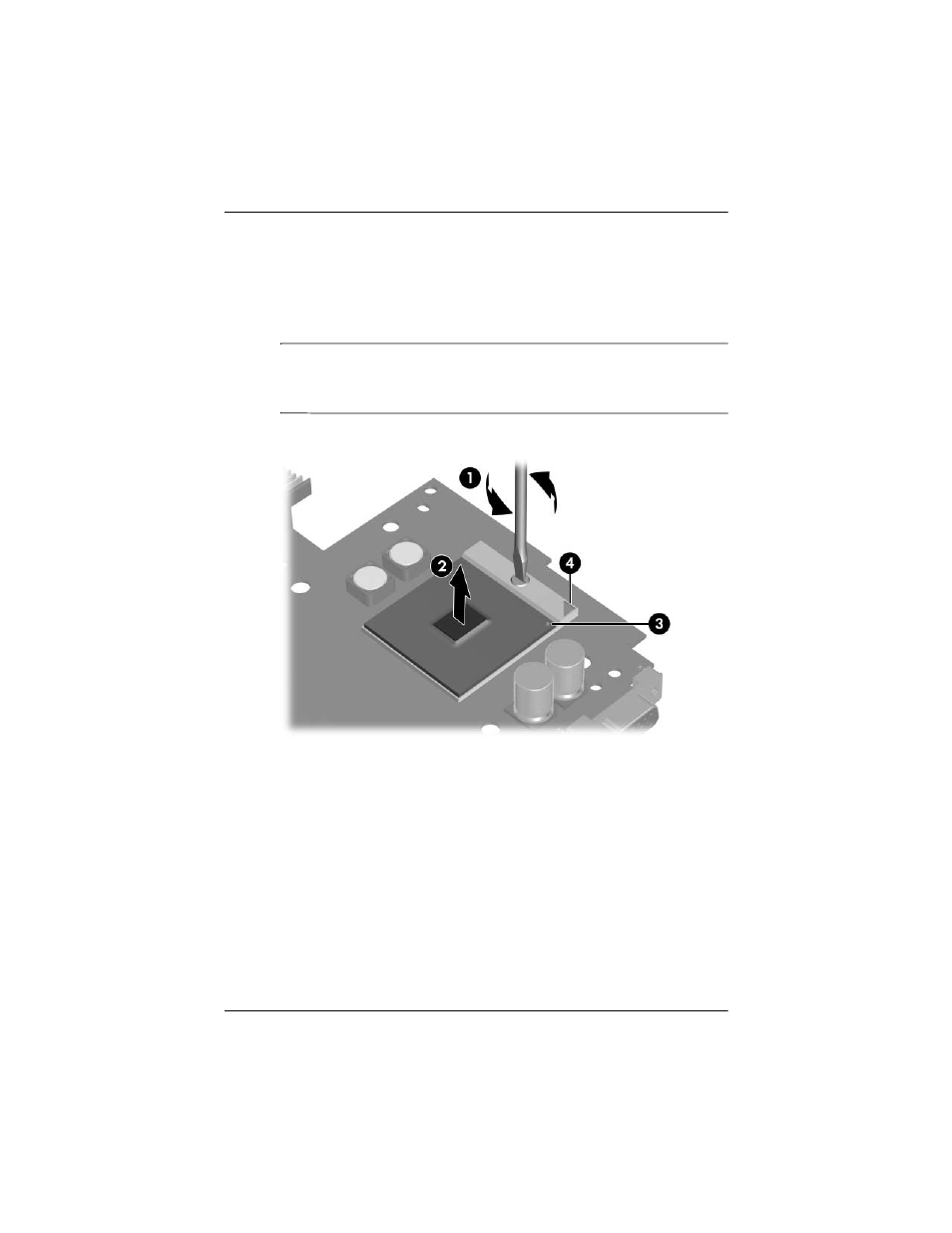

2. Use a flat-bladed screwdriver to turn the processor locking
screw 1 one-half turn counterclockwise until you hear a
click.
3. Lift the processor straight up and remove it 2.
✎
The gold triangle 3 on the processor should be aligned with
the triangle icon 4 in the front right corner when you install the
processor.
Removing the Processor
Reverse the above procedure to install the processor.
