Using V-TAIL(ACRO):
V-TAIL mixing is used with v-tail aircraft so that both elevator and rudder functions
are combined for the two tail surfaces. The elevator and rudder travel can be
adjusted independently.
NOTE: If V-TAIL is active, you cannot activate AILEVATOR or ELEVON functions. See the wing example on page 41.
NOTE: Be sure to move the elevator and rudder sticks regularly while checking the servo motions. If a large amount of travel
is specified, when the sticks are moved at the same time, the controls may bind. Decrease the travel until no binding occurs.
Adjustability:
• Independently adjustable elevator/rudder travels.
CH (2/1 CH): This allows you to utilize V-TAIL function with v-tail aircraft so that elevator and aileron are combined.
Ex: A v-tail polyhedral wing with no ailerons would use this option. The v-tail will have both pitch and roll on the right
stick.
(For details on setting up a complex plane, such as one with a v-tail AND a separate steerable nosewheel, please visit our
FAQ at
www.futaba-rc.com\faq\faq-7c.html. Many other setup examples are also available at this location.)

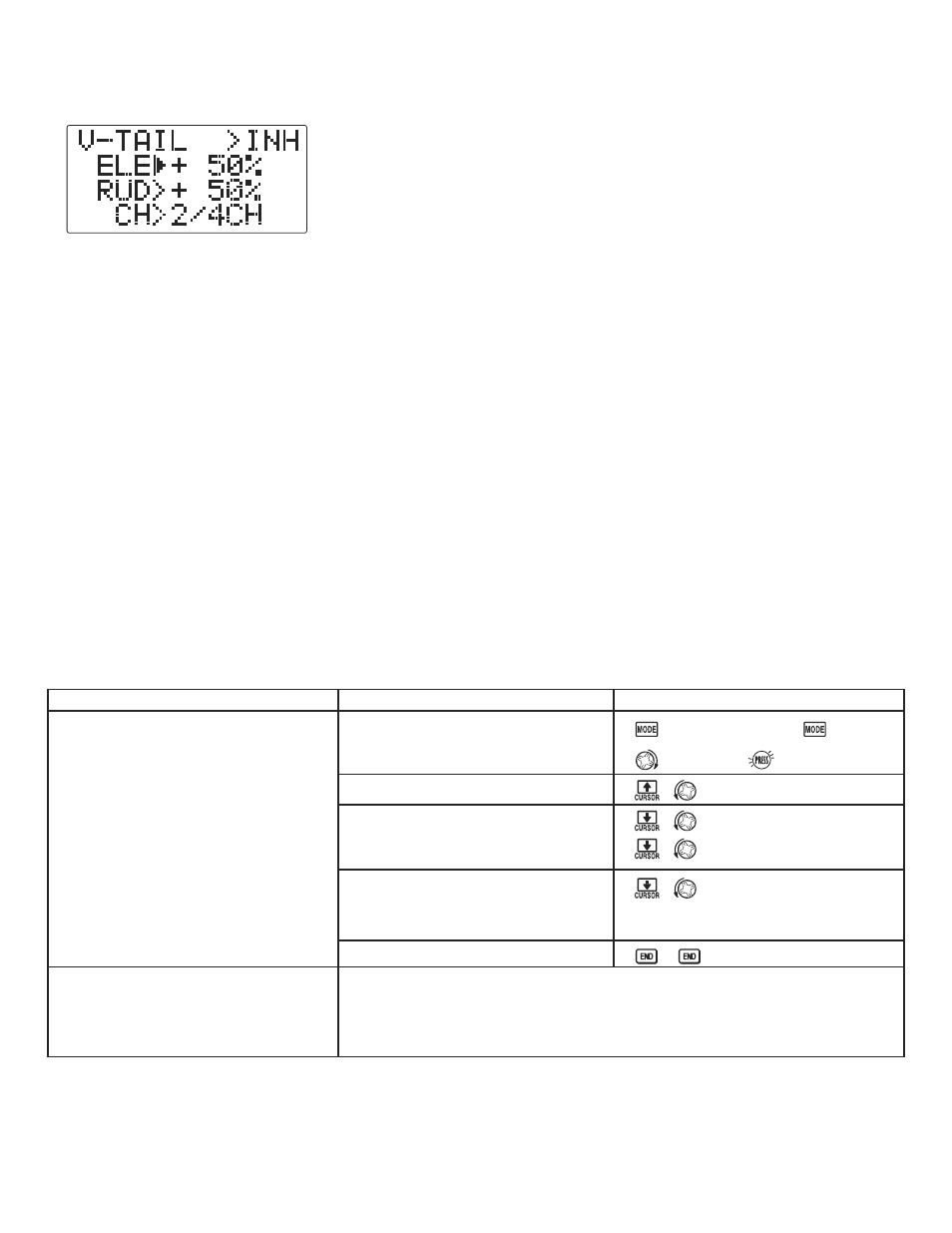

GOAL of EXAMPLE: STEPS: INPUTS:
46
Activate V-TAIL.
Adjust the elevator/rudder travels
as desired.
Where next?
Open the V-TAIL function.
Activate the function.
optional: adjust the travels separately
as desired.
optional: change the channel from
4 to 1. (If needed.)
Close menu.
for 1 second.
(If basic, again.)
to V-TAIL.
(Elevator travel)
(Rudder travel)
to 2/1CH.
Adjust END POINTs: see p. 31 and SUB-TRIMs: see p. 39.
Set up dual/triple rates and exponential (D/R,EXP) : see p. 33.
Set up ELEV-FLAP mix: see p. 49.
View additional model setups on the internet:
www.futaba-rc.com\faq\faq-7c.html.
