Before Using

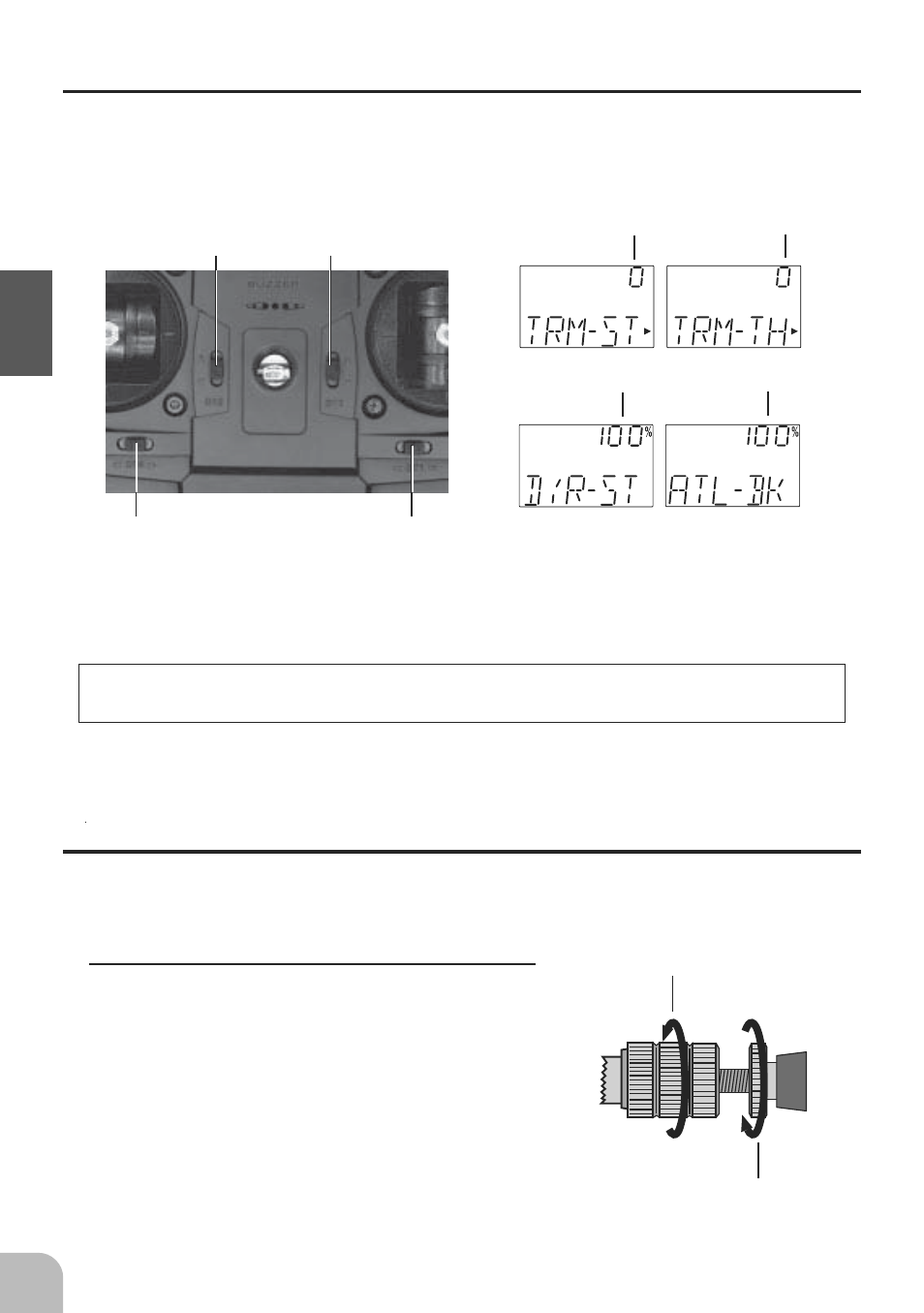

Digital Trim Operation
(Initial settings: DT1: Steering trim, DT2: Throttle trim, DT3=Steering D/R, DT4=Throttle ATL)
Push the lever to the left or right (up or down).
The current position is displayed on the LCD screen for about three seconds when
each digital trim is operated.
Steering trim
position
Throttle trim
position
- Each step is indicated by a tone.
- When the trim exceeds the maximum trim adjust-
ment range, the tone will change pitch and the lever
will not move any farther.
Trim Operation
With the digital trim feature, trim adjustments have no effect on the maximum servo
travel. This prevents the linkages from binding when adjustments are made.
ATL position Steering D/R rate
Stick Lever Head Adjustment
The length of the lever head of the steering and throttle sticks can be adjusted.
Adjustment
1
Unlock lever head “A” by turning it counter-
clockwise.
2
Adjust the head to the length best for you,
then lock the heads by turning lever head
“A” clockwise and lever head “B” counter-
clockwise.
DT4 DT1
DT2 DT3
Lever head
“B”
Lever head
“A”
