Flyzone HCAA24 - Manual (Page 8)

8

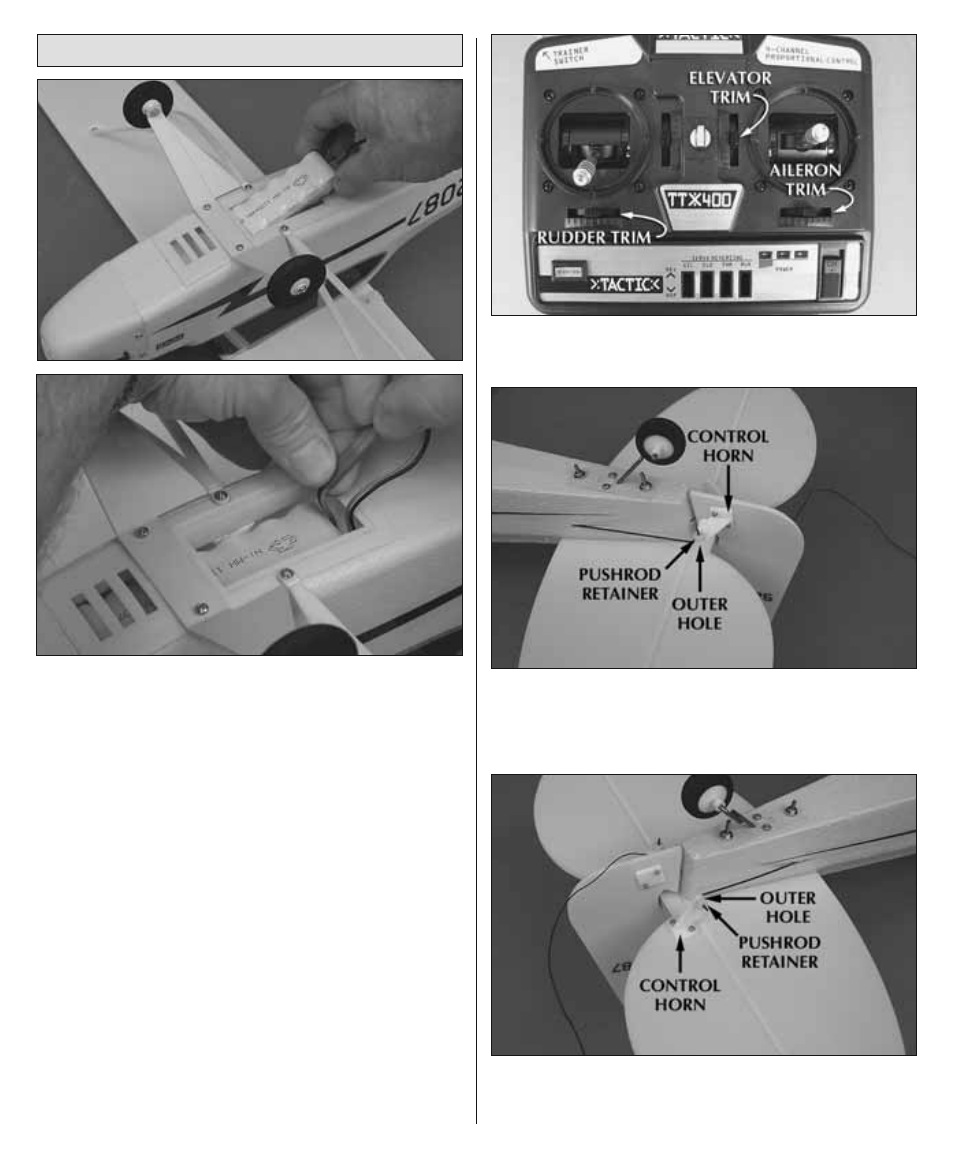

RADIO ADJUSTMENT
❏ 1. Switch on the transmitter. Make sure all three
LEDs are on. Open the battery hatch cover on the
bottom of the plane and insert the battery. Attach
the battery to the connector. Turn on the plane by
moving the switch on the left side of the fuselage.
CAUTION: Once the battery is connected to
the ESC and the plane is turned on, stay clear of
the propeller.
❏ 2. Center the rudder, aileron, and elevator trim.
❏ 3. Install the rudder pushrod in the outer hole of
the control horn. Slide a pushrod retainer over the
pushrods to secure it.
❏ 4. Install the elevator pushrod in the outer hole
of the control horn. Slide a pushrod retainer over
the pushrod to secure it.
