Dimensions

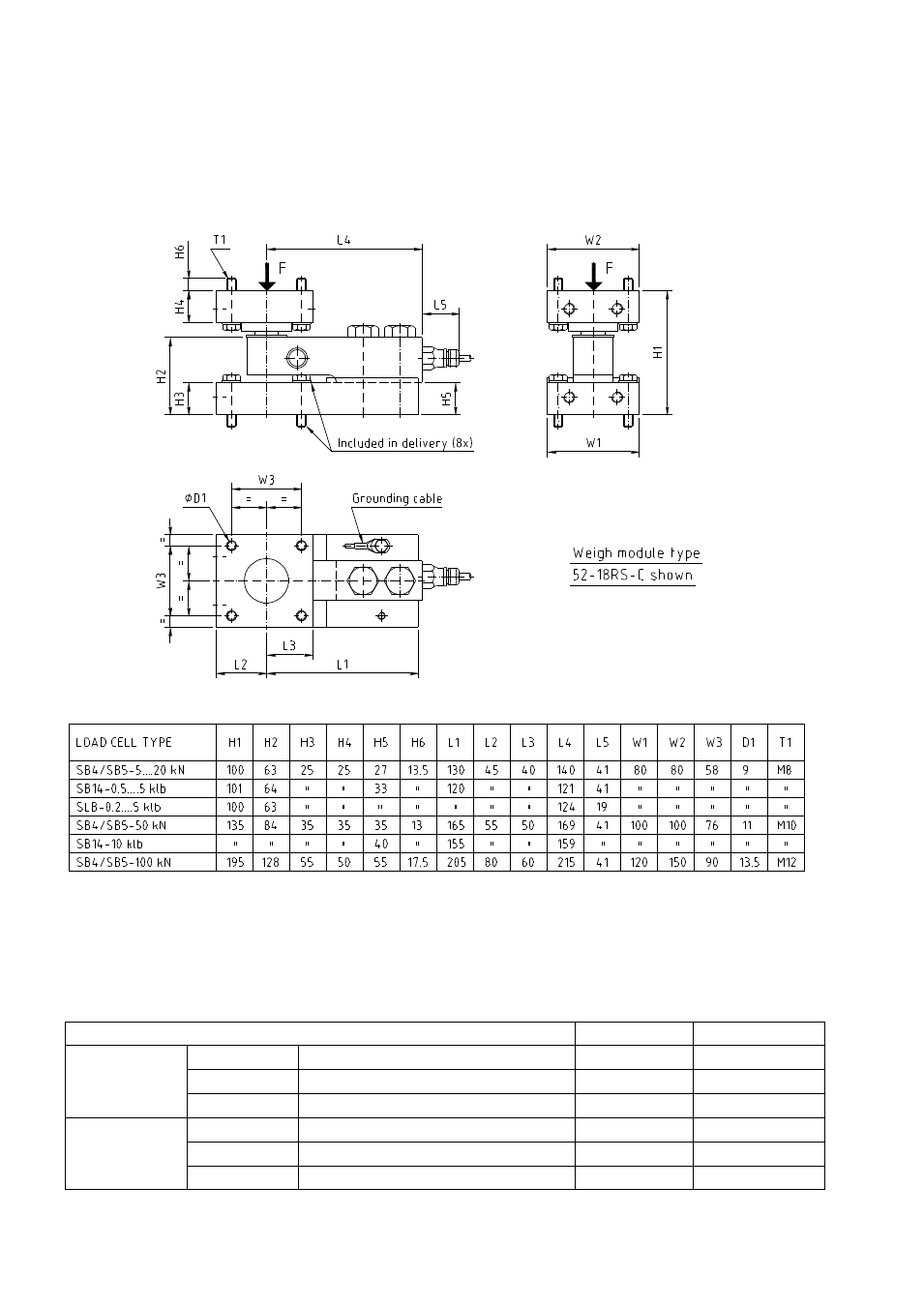

Below is an Outline Drawing which also can be found on the 52-18 Data Sheet. It covers all capacities of 52-18 in
their basic form, i.e. without liftoff protection, welding plates or bolting plates.
A combined Assembly/Outline drawing for each individual capacity, which is more detailed, is available on
request. As an example, this drawing for the 50kN capacity weigh module, can found in the enclosures section.
Same drawing, for the actual capacity weigh module, is always included in the delivery.
Figure 14.
Data
WEIGH MODULE TYPES MAX FORCE F MAX SIDE FORCE
52-18RS-A With Rocking pin and bumpers 200% of Emax 100% of Emax
Rocking System 52-18RS-B With free rocking pin 200% of Emax n. a.
52-18RS-C With bumping rocking pin 200% of Emax 50% of Emax
52-18SS-A With sliding pin and bumpers 200% of Emax 100% of Emax
Sliding System 52-18SS-B With free sliding pin 200% of Emax n. a.
52-18SS-C With fixed pin 200% of Emax 100% of Emax
Emax= Maximum load cell capacity
For Max lift off force data, see section “Lift off protection”.
