Crestron DIN-1DIMU4 DIN Rail Universal Dimmer

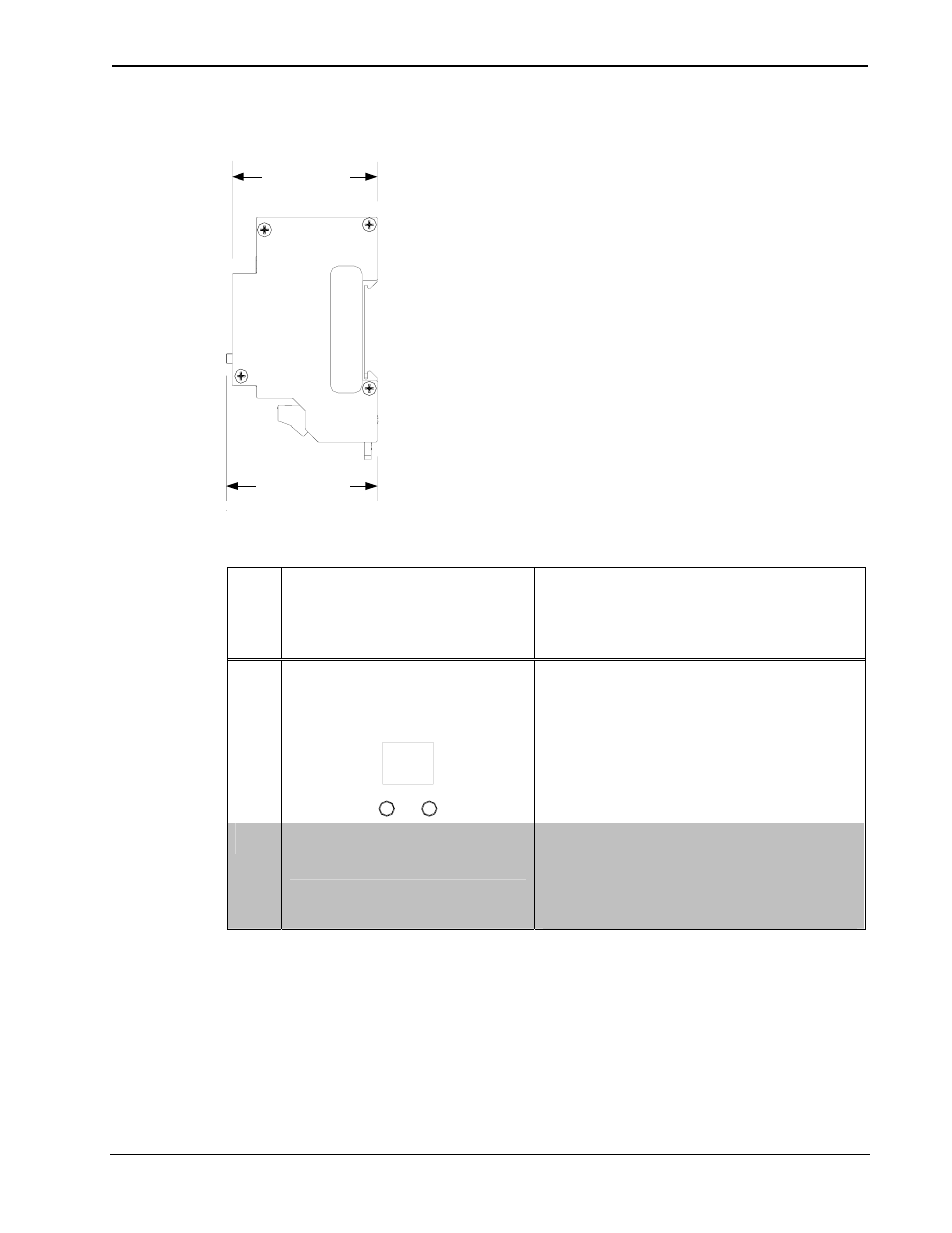

DIN-1DIMU4 Overall Dimensions (Side View)
58 mm
(2.29 in)
60 mm
(2.35 in)
Connectors, Controls & Indicators
# CONNECTORS
1
,
CONTROLS &
INDICATORS
DESCRIPTION
1 NET ID
DISPLAY and
CONTROL
(2) 7-segment green LED digits
and (2) miniature pushbuttons
for setting Cresnet ID
Digits also display output levels
and protection/error codes
2 SETUP
(LED and Button)
(1) Red LED and (1) recessed
miniature push button for
enabling setup mode and
touch-settable ID
(Continued on following page)
Operations & Installation Guide – DOC. 6668D DIN Rail Universal Dimmer: DIN-1DIMU4
• 7
