CLS-EXP-DIMFLV

Crestron Electronics, Inc.

Installation Guide – DOC. 6680A

15 Volvo Drive Rockleigh, NJ 07647

(2020652)

Functional Summary

The CLS-EXP-DIMFLV enables the expansion of the
Crestron

®

iLux™ Integrated Lighting System and other

Crestron lighting dimmers to support 120 - 277 Volt loads
up to 16 Amps. It allows any output channel of a
compatible dimmer or switch to control a fully loaded
circuit of 0-10 VDC fluorescent ballasts

1

, non-dimmed

lighting (incandescent, HID, magnetic low voltage
(MLV), electronic low voltage (ELV), neon/cold cathode,
and fluorescent ballast) up to 16 amps, and motors rated
up to 1/2 HP @ 120 Volts, 1 HP @ 230/277 Volts.

The CLS-EXP-DIMFLV is designed for mounting to a
vertical surface. Conduit knockouts are provided on the
bottom and lower sides. All connections are made via
screw terminals behind the front cover.

• Works with Crestron iLux (CLS(I)-C6),

CLW-Series dimmers

2,3

, CLX-Series dimmers

3

,

and DIN-1DIMU4

3

• Emulates the characteristics of the dimmer that is

controlling it

• Up to five Expansion Modules can be connected

to a single iLux dimmer channel

• Supports 0-10 VDC fluorescent, non-dimmed

lighting (including HID), and motors rated up to 1
HP

• Built-in air gap relay at the output

1.

Ballasts must comply with the specifications for control by DC
voltage in ANSI C82.11:2002 and IEC60929:2006.

2.

CLW-Series devices must have a dedicated neutral.

3.

The CLS-EXP-DIMFLV can only be controlled by forward-phase
dimmer modules. It is not compatible with the CLX(I)-1DELV4. If
connected to a DIN-1DIMU4, the DIN-1DIMU4 must be set to
operate as a forward-phase dimmer or a non-dimming switch.

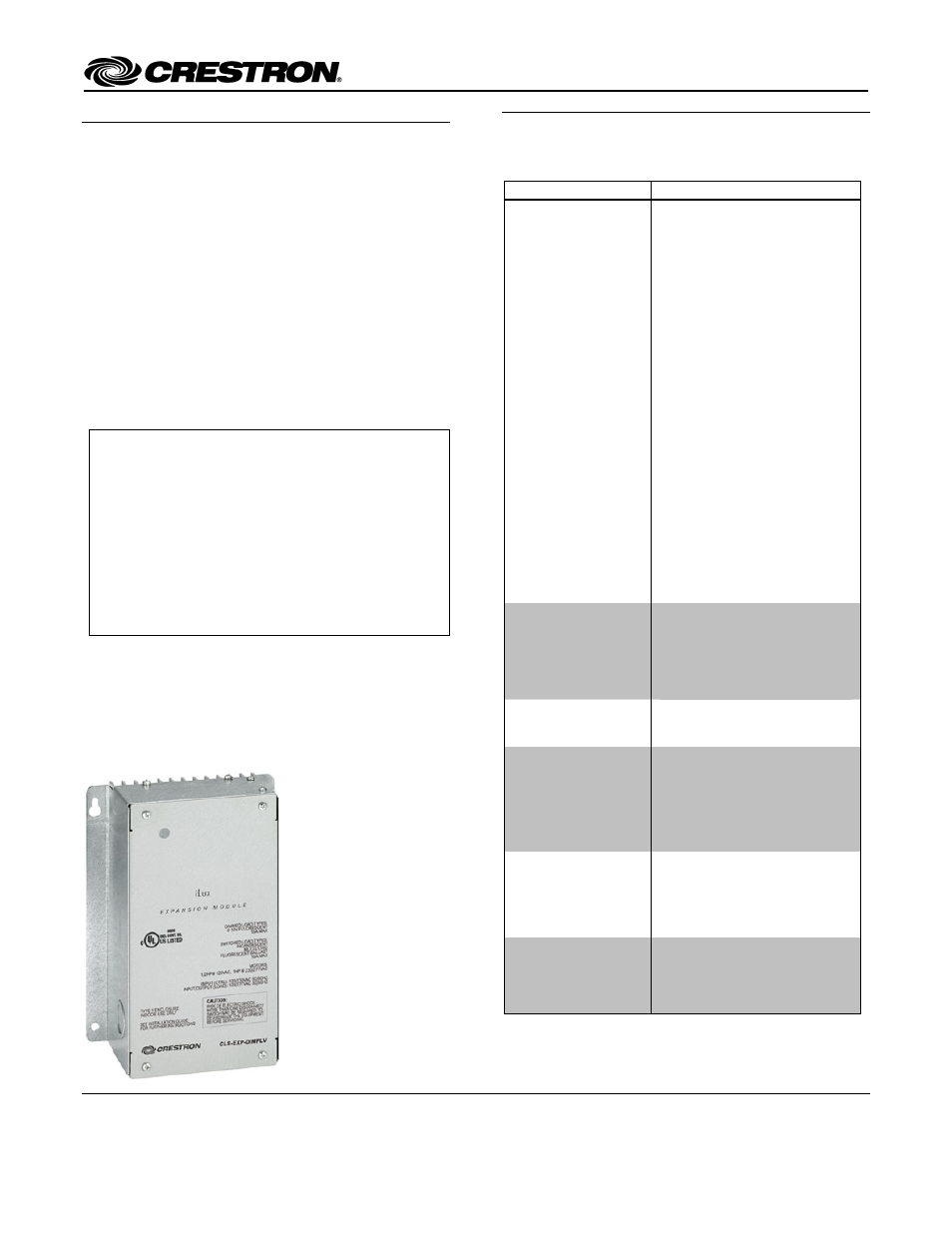

CLS-EXP-DIMFLV Physical View

Specifications

CLS-EXP-DIMFLV Specifications

SPECIFICATION DETAILS

Load Ratings

Output

Channels

Load

Ratings:

Lamp


Motor

Minimum

Load

at 120 Volts
at 230 Volts
at 277 Volts

Load

Types

1


16 Amps @ 120 – 277 Volts
(70 mA max current sink for 0-10
VDC ballasts)
1/2 HP @ 120 Volts,
1 HP @ 230/277 Volts


15 Watts
25 Watts
30 Watts

Dimmable Loads
0-10 VDC dimmable fluorescent
ballasts (i.e. Advance Mark 7 or
other ballasts that are compliant
with the specifications for control
by DC voltage in ANSI
C82.11:2002 and IEC60929:2006)

Non-Dim Loads
Incandescent, HID, magnetic low
voltage (MLV), electronic low
voltage (ELV), neon/cold cathode,
and fluorescent ballasts

Motors
Up to 1 HP @ 230/277 Volts

Input Voltages

Line

Power

Control

Input

120 to 277 Volts AC, 50/60 Hz

120 or 230 Volts AC, 50/60 Hz,
phase independent of line power
and load, presents 25 Watts load
to the controlling device

Electrical Terminals

Captive screw type;
Accommodates two 22-12 AWG
(0.34-4.0 mm

2

) wires

Enclosure

Surface mount module with (2)
integral mounting flanges,
galvanized steel w/gray matte
powder coat front panel, extruded
aluminum heat sink, 1/2” and 3/4”
conduit knockouts provided on
bottom and lower left & right sides

Environmental

Temperature

Humidity

Maximum

Heat

Dissipation

32° to 104°F (0° to 40°C)

10% to 90% RH (non-condensing)

68 BTU/Hr

Dimensions
Height
Width
Depth
Weight


8.82 in (22.40 cm)
6.39 in (16.23 cm)
3.18 in (8.08 cm)
3.3 lbs (1.5 kg)

(Continued on following page)

Tel: 888.CRESTRON

07.08

Fax: 201.767.7576

Specifications subject to

www.crestron.com

change without notice.
