2.3 Assembly and install

1) Assemble the under-frame, see installation Figure 1.

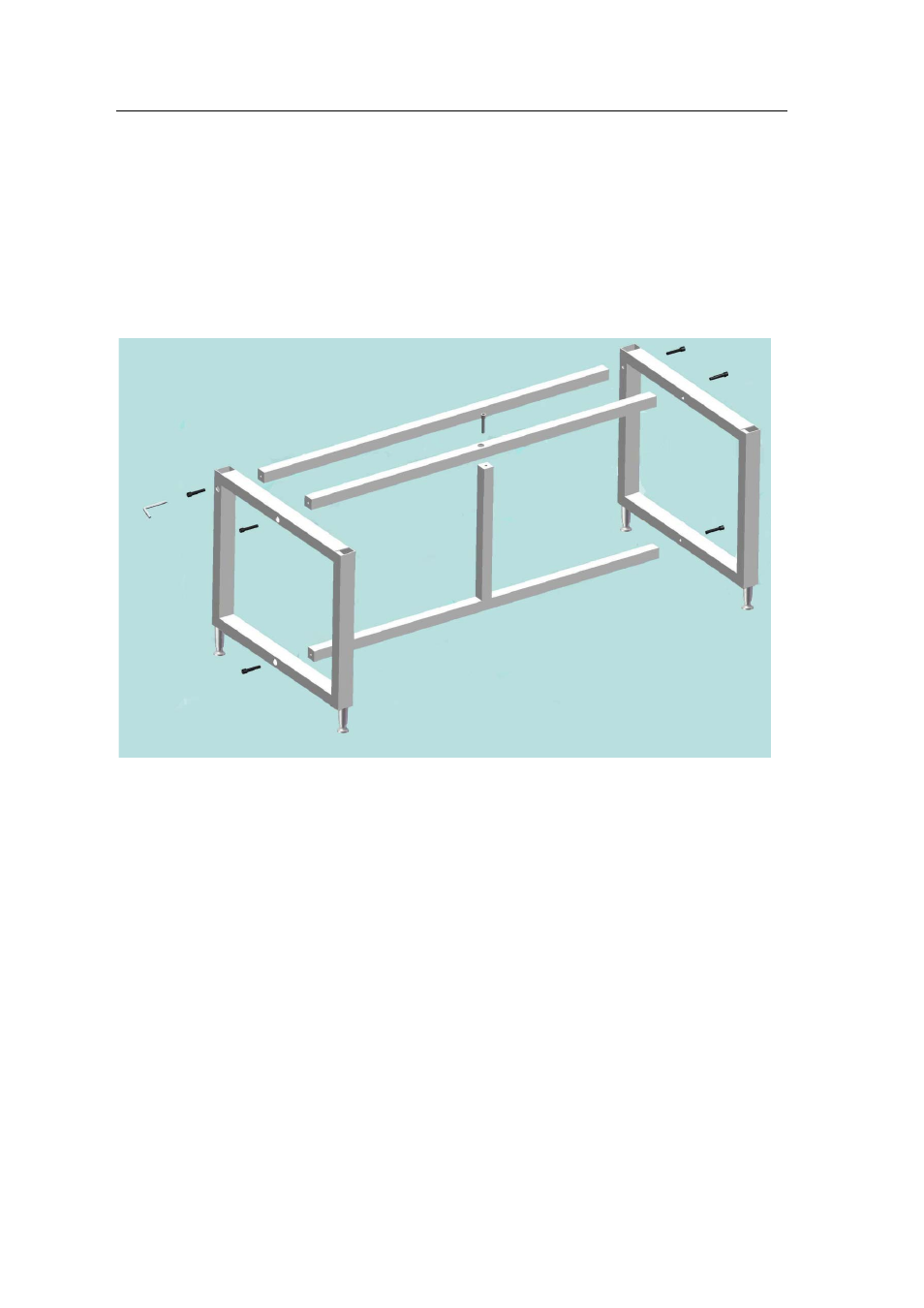

FIGURE 1: BASE FRAME ASSEMBLY

1. Seven M10×50 bolts
2. Horizontal support without hole is fastened with two M10×50 bolts
3. Horizontal support with hole is fastened with two M10×50 bolts
4. Left-side support
5. T-style support is fastened with three M10×50 bolts
6. Right-side

support
