Char-Broil 463247412 - Manual (Page 20)

15
20

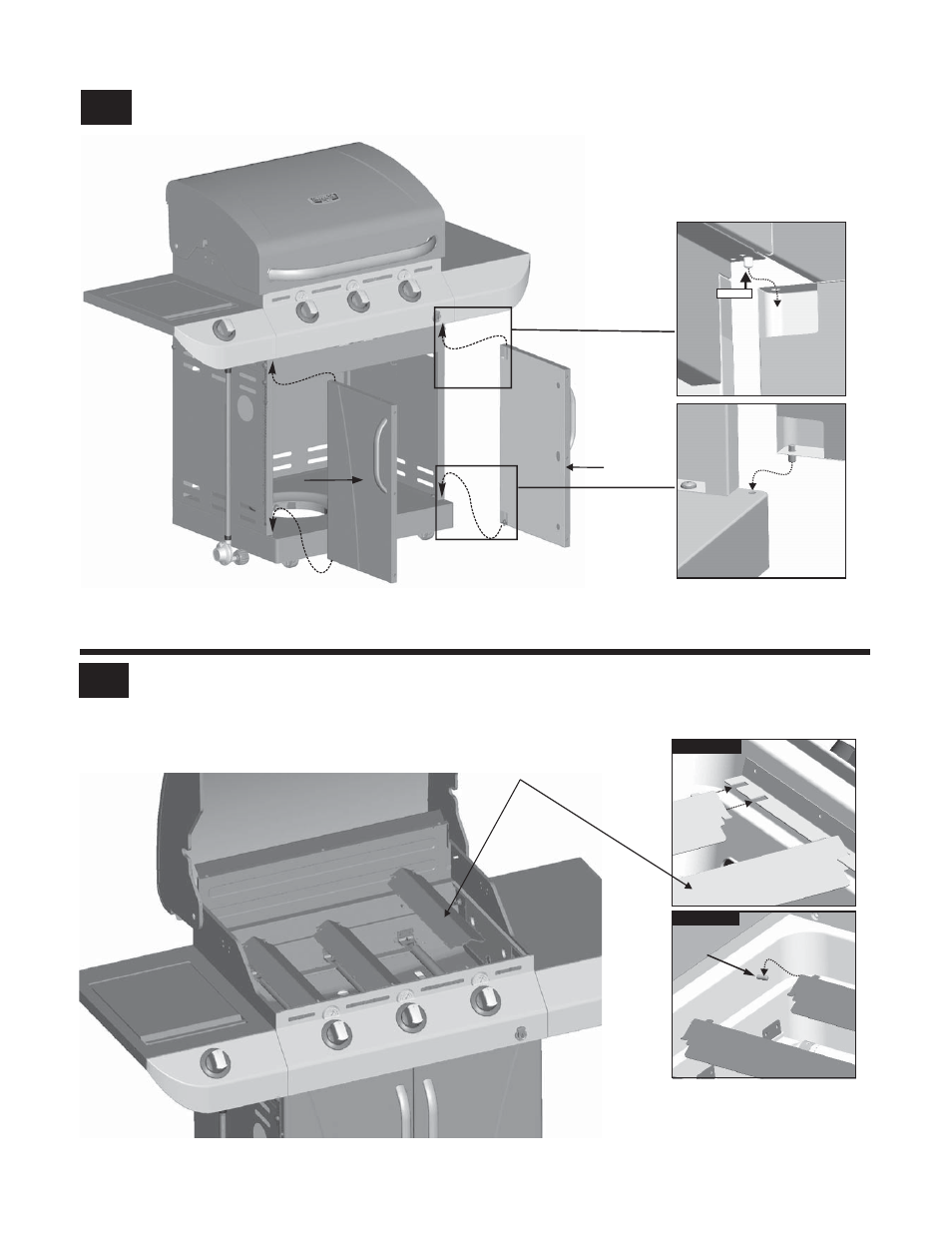

Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in
back of firebox.
Back of firebox
Front of firebox
Note: Some parts omitted for
clarity of illustration
Flame tamers
Pin
14
Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
Hinge pin
on bottom
of door
Top of
door
PRESS
Left door
Right door
