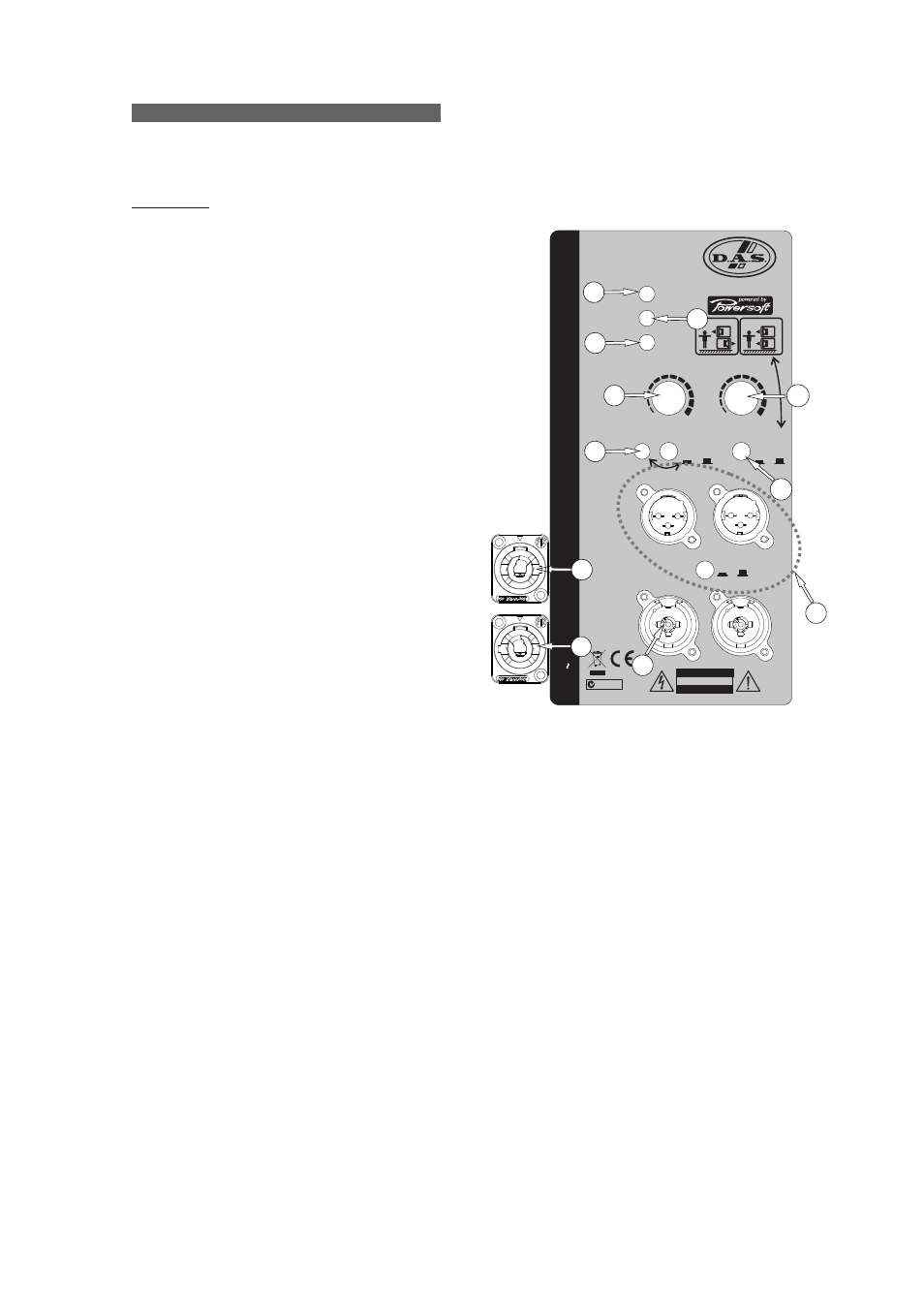

Description
1) INPUT :
1/4” Jack+XLR c
:
1 or S =GND (ground).
2 or T =(+) Non inverted input.
3 or R =(-) Inverted input.
2) SATELLITE OUTPUT :
A and B, XLR-type output signal connectors for
connecting several units together and sending them all
the same input signal or filtered signal (by using
THRU/HPF).
3) LIMIT :
Red LED indicates amplifier saturation. Amplifier
limiter indicator lights.
4) SIGNAL :
Green LED indicates signal presence.
5) ON :
Green LED indicates that the unit is ON.
6) LEVEL :
Potentiometer for adjusting the unit level.
7) LOW-PASS CROSSOVER :
Button for LPF adjustment for subwoofer. We
recommend 100 Hz.
ombined socket-type input signal
connector. This is a balanced connector just like the
LOOP THRU connector with the following pin
assignments
8) AC INPUT :
PowerCon NAC3FCA mains connector (inserted, rotated and locked for ON). Only use this equipment
with an appropriate mains cord.
9) POLARITY :
Switch for inverting the phase of the unit.
10) CARDIOID PRESET :
Button for switching between two types cardioid response.
11) AC OUTPUT :
PowerCon NAC3FCB connector for AC loop thru allows up to 6 units when using a 230V version (see
unit’s label)). Only use this equipment with an appropriate mains cord.
