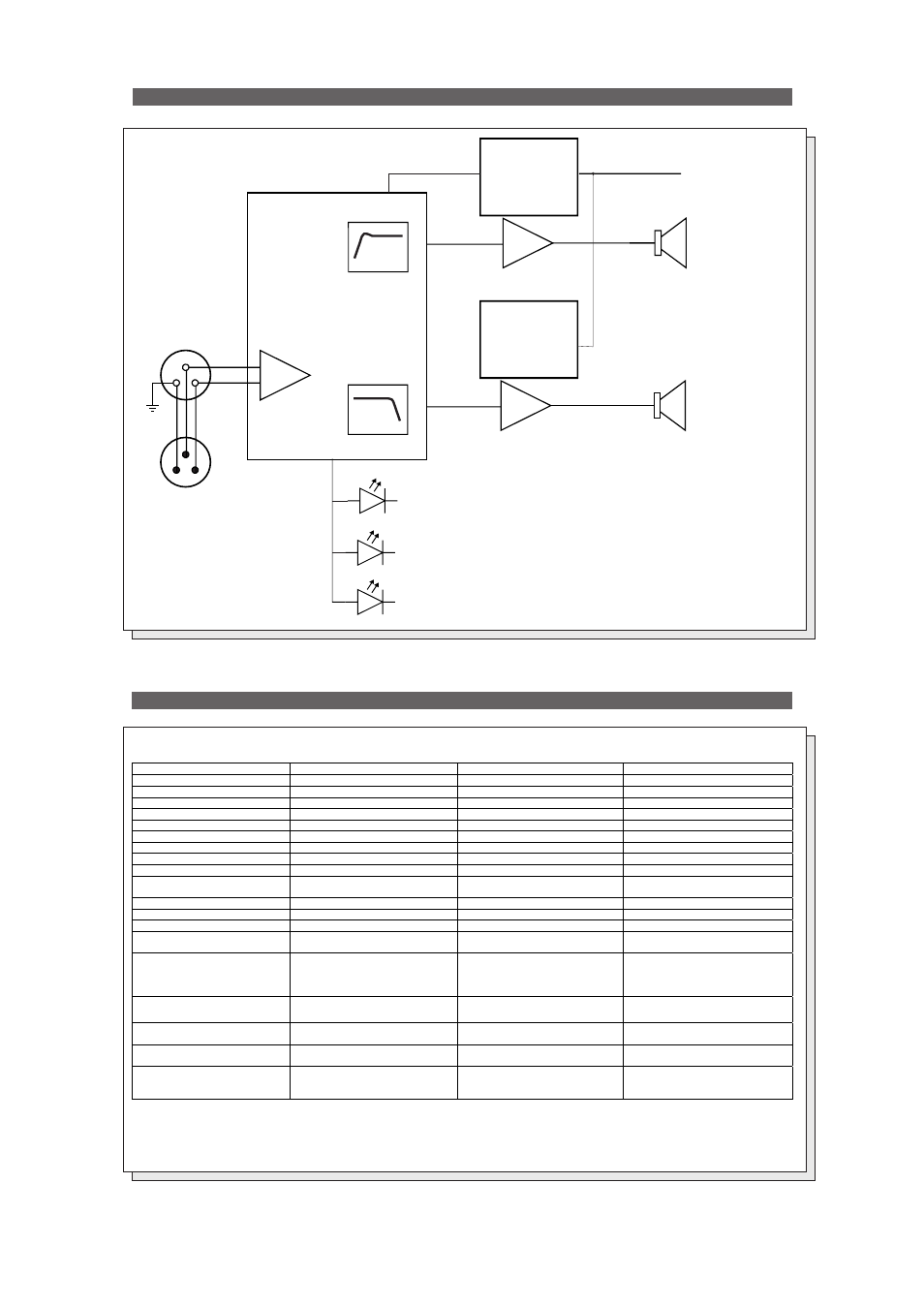

BLOCK DIAGRAM

DSP

LOW

MAIN

HIGH

Switching
Power
Supply

Input

Loop thru

Signal

Limit

SPECIFICATIONS

Model

aero 8A

LX-212A

LX-212RA

Nominal LF Power Amplifier

250 W (Class D)

1800 W (Class D)

Nominal HF Power Amplifier

100 W (Class D)

---

Input Type

Balanced Differential Line

Input Impedance

Line: 20 kohms

Sensitivity

Line: 1.95 V (+8 dBu)

Frequency Range (-10 dB)

95 Hz -20 kHz

45 Hz -138 Hz

Horizontal Coverage (-6dB)

90º Nominal

---

Vertical Coverage

Splay Dependent

---

Rated Maximum Peak SPL at 1 m

(1)

128 dB

136 dB

Transducers/Replacement Parts

LF: 1 x 8MN/GM 8MN

HF: 1 x M-60N/GM M-60

LF: 2 x 12LXN/GM 12LX

Enclosure Geometry

Trapezoidal 5º

Rectangular

Enclosure Material

Birch Plywood

Color/Finish

Black Paint

Rigging System Splay Angles

Integrated in box design

Ground Stackable

Integrated in box design

Connectors

INPUT: Female XLR

LOOP THRU: Male XLR

AC INPUT: PowerCon NAC 3 FCA

AC OUTPUT: Powercon NAC 3 DFCB

INPUT: 2 x Female XLR

LOOP THRU: 2 x Male XLR

AC INPUT: PowerCon NAC 3 FCA

AC OUTPUT: Powercon NAC 3 DFCB

INPUT: 2 x Female XLR

LOOP THRU: 2 x Male XLR

AC INPUT: PowerCon NAC 3 FCA

AC OUTPUT: Powercon NAC 3 DFCB

AC Power Requirements

115 V, 50 Hz/60 Hz
230 V, 50 Hz/60 Hz

Dimensions (H x W x D)

24.5 x 52.6 x 35.5 cm

9.6 x 20.7 x 14 in

48.8 x 48 x 87 cm

(19.2 x 18.9 x 34.3 in)

48.8 x 52.6 x 87 cm

(19.2 x 20.7 x 34.3 in)

Weight

18 kg (39.6 lbs)

49 kg (107.8 lbs)

65 kg (143 lbs)

Accessories

AX-aero8 Rigging Grid

AX-LX212 Rigging Grid

AXS-aero8

AX-LX212 Rigging Grid

PL-212S

TRD-5

AX-LX212 Rigging Grid

PL-212S

TRD-5

Maximum calculated Peak SPL based on sensitivity and RMS power handling.

Manual del Usuario

/ aero 8A / User’s Manual
