12

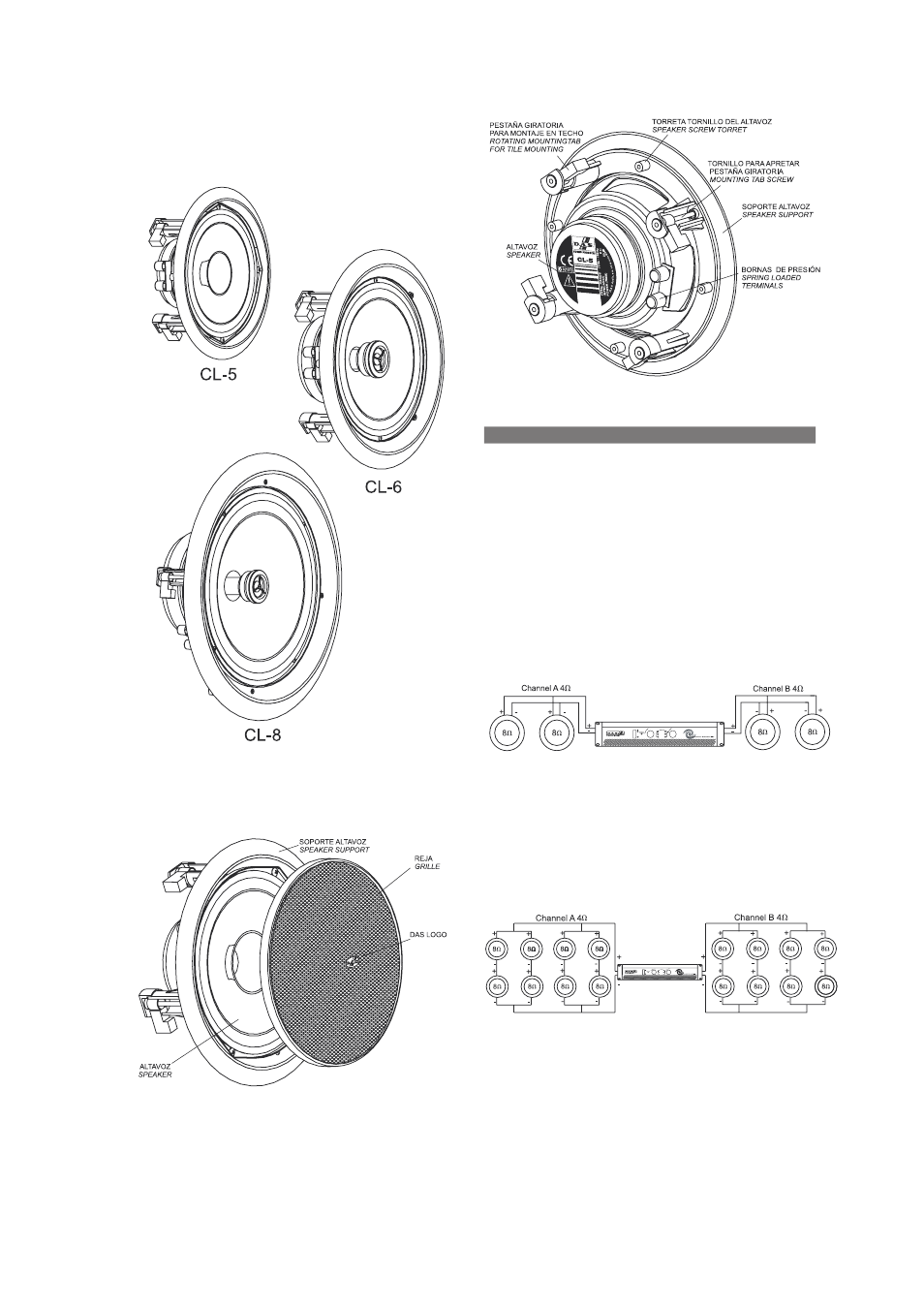

The exploded view below identifies the different elements to
ease handling and installation:
Fig. 1 –CL-5, front view
Fig. 2 –CL-5, back view
2. INSTALLATION
2.1 Preliminary considerations. Types of installation
For complete installation, we need to take the time to plan
ahead the cutting out tile holes and the cabling of the units.
Conventional amplifiers can be used to power the DAS ceiling
speakers. With them, two types of wiring configurations are
possible.
A parallel configuration allows the use of two speakers per
channel for a 4 ohm load:
Fig. 3 – parallel connection
1.3 Description
The three basic models of the series can be seen below:
Series-parallel connection. Two loads are wired per channel,
each load consisting of four units connected in series-parallel.
A total of 8 speakers per channel can be installed this way:
Fig. 4 - series-parallel connection
