CONFIGURATIONS
13
EN
CONFIGURATION 1
CABINETS
HORIZONTAL COVERAGE
VERICAL COVERAGE
TYPICAL DISTANCE
TOTAL RMS POWER
ACCESSORIES
8 +4 CA-28A CA-215A
2x120º
SPLAY DEPENDENT
0m TO 20m
2x3800W=7600W
2 , 2 AX-CA PL4-28
2 PL-28S

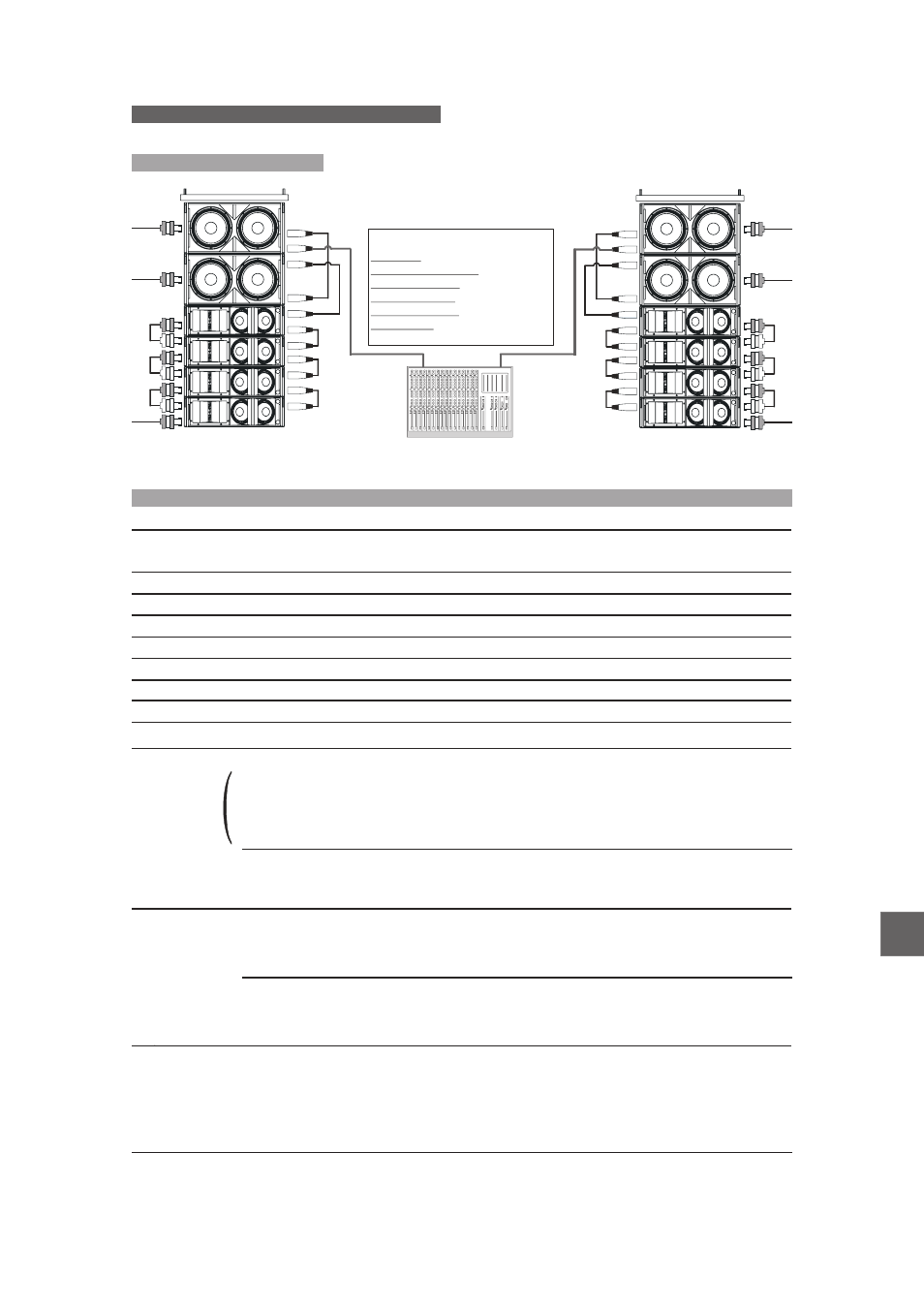

SYSTEM DESCRIPTION
SATELLITE
OUTPUT
SATELLITE
OUTPUT
POWER
SUPPLY POWER
SUPPLY
POWER
SUPPLY POWER
SUPPLY
POWER
SUPPLY POWER
SUPPLY
LOOP TRHU LOOP TRHU
INPUT INPUT
3 WAY TRI-AMP STEREO SELF POWERED
SYSTEM FOR SMALL SIZED VENUES
SPECIFICATIONS
Frequency Range
Horizontal coverage
Vertical coverage
Nominal amplifier power RMS
Input and output type
Input impedance
Satellite output impedance
Sensitivity
AC power requirements
Sensitivity-SPL(1W/1m)
Minimum system
80 Hz - 20 kHz (-6dB) 35 Hz - 150 Hz (-6dB)
CA-28A CA-215A
120º (-6dB, 500Hz-16kHz) -----------------
Splay angle dependent
1000W 350W+ 100W
20 Kohm
Balanced XLR
280 ohm
0.88V (+1.1 dBu)
100dB
4 units
Four enclosures
10º splay angle
133 dB/139dB (36º vertical coverage)
99dB
2 units
Curved Array:
Array Continuous/Peak SPL Continuous/Peak SPL
One enclosure
Two enclosures
Four enclosures
125 dB/131dB
131 dB/137dB
137 dB/143dB
129 dB/135 dB
135 dB/141 dB
141 dB/147 dB
Flat Array
-----------------
Transducers
2x8” model 8MN16
2x15” model 15LX
4” voice coil
LF section
HF section 3” voice coil compression driver,
m 1.5” exit
coupled to a horn through
a plane wave generator . SERPIS
odel ,
M-10N
2.5” voice coil
Neodymium magnets
Enclosure
Dimensions
Material
26.5x88.2x40 cm
(10.4x34.7x15.8 in)
(HxWxD) 45.2x88.2x74.6 cm
(17.8x34.7x29.4 in)
Wisa Birch Plywood Wisa Birch Plywood
-----------------
-----------------
1.23V (+4dBu)
115V, 50Hz/60Hz 230V, 50Hz/60Hz
25 Kohm
Finish
Rigging hardware Black polyurethane paint Black polyurethane paint
Integrated in cabinet Integrated in cabinet
Weight 36.5 kg (80.5 lbs) 64.5 kg (142.2 lbs)
