Cymatic Audio uTrack 24 Manual User Manual

Page 17

PRODUCT MANUAL

USING THE UTRACK 24 AS A COMPUTER AUDIO INTERFACE

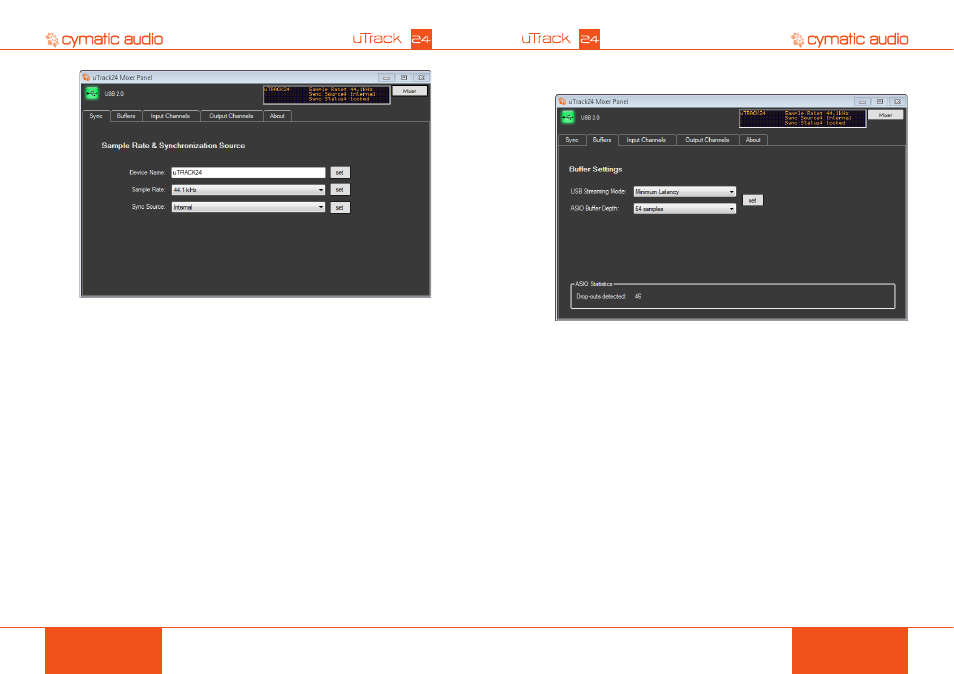

Settings View: Synchronization Tab

Device Name: The device name field controls what device name will appear in your DAW

software. The default name is “uTrack 24” but it can be modified to the name of your choosing.
Sample Rate: Click on this field to select what sample rate you wish to operate the uTrack 24 at

when using it as an audio interface. Choices include:
• 44.1kHz

• 48kHz

• 88.2kHz

• 96kHz
Sync Source Display: This field displays the current synchronization source. Choice include:
• Internal

• Word Clock

Settings View: Buffers Tab
The control panel’s buffers screen allows adjustment of the ASIO buffers used by your ASIO

compatible DAW software.

USB Streaming Mode: Adjust this value to set the basic mode of operation of the uTrack 24

drivers.
ASIO Buffer Depth: Adjust this setting to configure the size of the ASIO buffer, measured in

samples.
When using an older, slower computer, you may need to set your latency value to a higher

amount. This will reduce the overhead to the computer’s CPU and allow your DAW session to run

more smoothly, but will result in a higher amount of delay between the original incoming audio

signal, and the DAW software’
When using a newer, faster computer, the buffer depth can be set to a lower amount, and latency

will be minimized.
ASIO Dropout Statistics: This display field indicates how many “drop-outs” have occurred, if

any, with the currently selected buffer settings.
Dropouts indicate that your computer’s CPU cannot keep up with the demand that is placed on

it by the current buffer depth. If any dropouts occur, increase the size of the buffer depth and / or

change the streaming mode until no more dropouts are reported.
