Crosman CPMDWC User Manual
Cpmdwc owner’s manual, Warning

CPMDWC
OWNER’S MANUAL
READ ALL INSTRUCTIONS AND WARNINGS
IN THIS MANUAL BEFORE USING THIS SIGHT
CenterPoint Precision Optics
7629 Routes 5 & 20
Bloomfield, NY 14469
www.centerpointoptics.com Made in China
1-866-726-1122
CPMDWC-515
BUYER AND USER HAVE THE DUTY TO OBEY ALL LAWS
ABOUT THE USE AND OWNERSHIP OF THIS SIGHT.
All CenterPoint scopes are constructed with high quality precision machined parts. The
rugged one piece tube construction works for all terrains and weather. The scope is preci-
sion machined to exact tolerances from aircraft-grade aluminum alloy.
WARNING:
Direct viewing of the sun can cause permanent eye
damage. Do not attempt to view the sun through this riflescope or any
other optical instrument.
WARNING:
Always follow all rules of firearm and gun safety.
WARNING:
This product contains a chemical known to the state of
California to cause cancer and birth defects (and other reproductive harm)
.

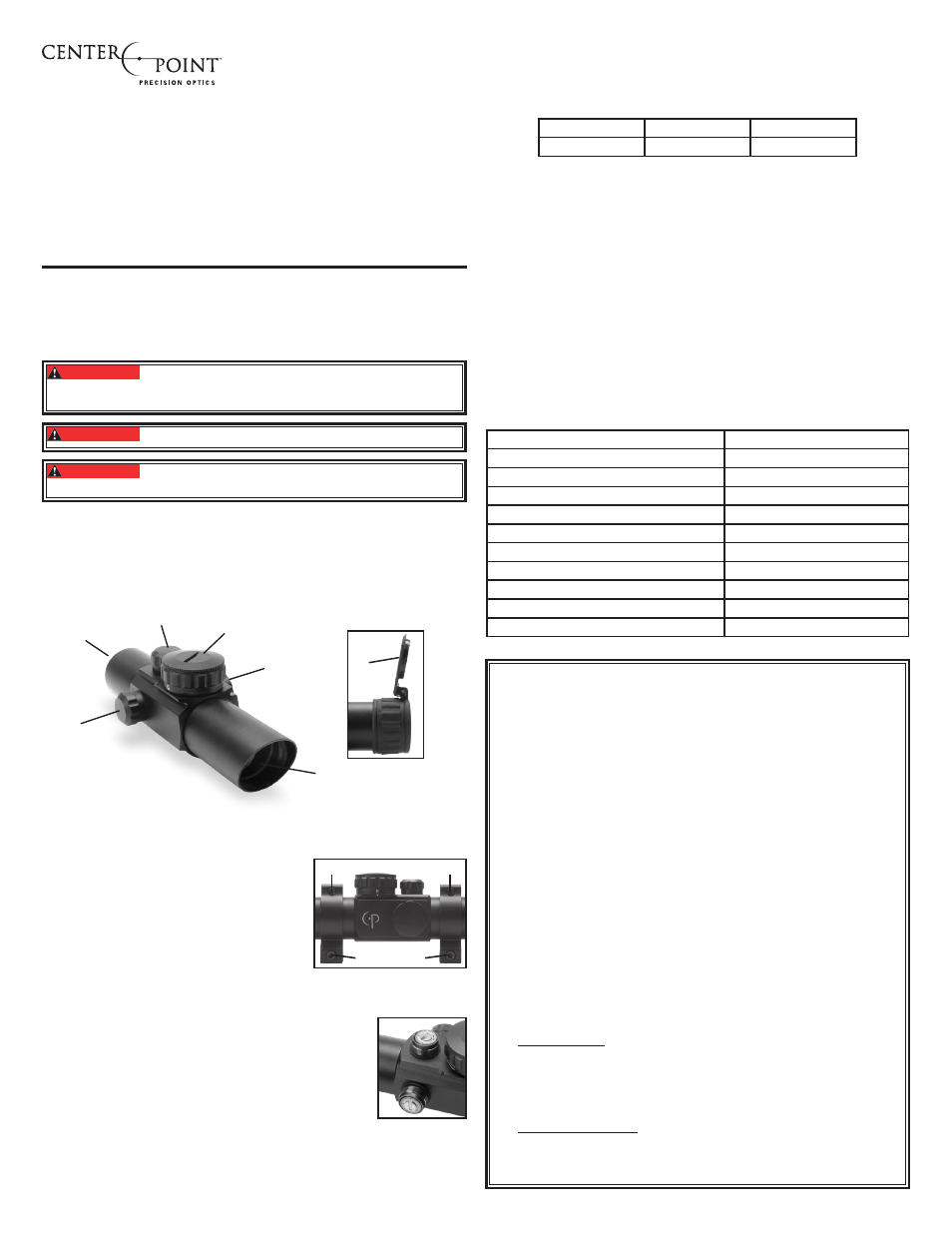

Learning the parts of your scope
Learning the names of the parts of your new sight will help you to understand your owner’s
manual.
1. Ocular Lens
2. Elevation (vertical) Adjustment
3. Red/Green Illumination Dial
4. Multi-Reticle dial
5. Objective lens
6. Removable Flip Open Lens Covers
7. Windage (horizontal) Adjustment
Mounting the Scope
CAUTION: Always ensure your rifle is UNLOADED, UNCOCKED and the safety is applied
before fitting the scope. Practice safe handling procedures at all times.
• Locate the proper mounting position on your rifle
• Loosen the mounting screws (A and B) from the ring mount
• Install and adjust the scope at a proper position to
suit your shooting
preferences, then tighten the mounting screws
• To adjust the position of the scope within the mount;
loosen screws C and D. Once the scope is at a
proper position, tighten the screws on the ring to
ensure a firm grip on the scope.
NOTE: Do not over tighten the screws as you
could cause damage to the scope body.
• The scope is now ready to be zeroed.
Zeroing the Scope
The purpose of zeroing the scope is to ensure that the scope is aligned with the impact
point of the pellet or bullet from the rifle. Before zeroing the scope, read the following
adjustment knob instructions carefully.
• Place a target 100 yards away.
• Ideally use a steadying device such as a bipod or shooting stand,
aim at the center of the target and fire a test shot, if safe to do so.
• If the impact point of the pellet or bullet is exactly in the center of
the target then the scope is zeroed. If it is not, you will need to
adjust the reticle using the elevation and/or windage adjusters.
• Remove the caps from the windage and elevation dials
• Vertical Adjustment (Elevation) - Use your fingers to turn the
adjusting knob as required. One click in either direction equals
approximately 1/2 inch at 100 yards.
• Horizontal Adjustment (Windage) - Use your fingers to rotate the adjusting knob as
required. One click in either direction equals approximately 1/2 inch at 100 yards.
• Having adjusted the windage and elevation as required, fire, if safe to do so, another
test shot. Keep adjusting and test firing until the test shot impacts on the center of the
target when the reticle is on the center of the target. This is vital for accurate shooting.
• Once the scope is zeroed, be sure to put the windage and elevation caps back on.
Note: Each click of adjustment moves the impact point by the amount shown in the table:
@ 50yds
@100yds
@200yds
1/2”
1”
2”
Red or Green Dot
• Remove the battery cover from the red/green illumination dial by turning counter
clockwise.
• Install one CR2032 3V lithium battery into the compartment with the “+” side up.
• Replace the cover and tighten in by turning it clockwise.
• Turn the red/green illumination dial to illuminate the red or green dot. The brightness
will change as you turn the dial. The markings on the dial show the color and intensity
of the light. Lining the “R” or “G” up with the dot will turn the illumination off.
Maintenance
• Take care not to drop or knock the scope once it is zeroed.
• Keep the protective lens covers in place when the scope is not being used.
• Store the scope in a cool dry place when not in use.
• Be careful to avoid contact with acid, alkaline or corrosive chemicals.
• Do not attempt to lubricate any part of the scope.
• Do not disassemble the scope. Do not loosen or remove any screws or parts. Any
such or similar actions will void the warranty.
• Wipe the lens with a clean flannel cloth to keep it clean and dry. Do not use finger or
finger nail to touch or clean lenses.
• Use only a clean flannel cloth for cleaning.
• To maintain battery life, turn illumination off when not in use.
Specifications
Model
CPMDWC
Magnification
1x
Objective Diameter (mm)
25
Exit Pupil (mm)
20.5
Eye Relief (inches)
Flexible
Field of View (@ 100yds)
33’
Tube Diameter (mm)
30
Length (inches)
5.83”
Weight (ounces)
6.49
W/E Adjust Click Value
1 MOA
Batteries
CR2032 3V Lithium
LIMITED LIFETIME WARRANTY ON CENTERPOINT SCOPES
Your CenterPoint scope is warranted to be free of defects in materials
and workmanship for the lifetime of the original owner. This warranty
does not cover damages due to fair wear and tear, failure to provide
routine maintenance, and does not include batteries or accessories. This
warranty lasts as long as the original purchaser owns the product, and is
not transferable. In the event of a defect under this warranty, we will, at
our option, repair or replace the product provided our inspection indicates
that an original defect exists. CenterPoint reserves the right to replace any
product which is no longer available with a product of comparable value
and function. If CenterPoint determines the repair is not covered under the
warranty guidelines, there could be a charge to you for the repair. This is a
limited warranty and does not cover damages caused by misuse, improper
handling or installation or maintenance provided by someone other than
CenterPoint Percision Optics.
This limited warranty does not include consequential damages, incidental
damages, or incidental expenses, including damage to property or any
other expense. CenterPoint disclaims any implied warranties. Some states
do not allow the exclusion or limitation of incidental or consequential
damages, or allow limitations on implied warranties so the above limitations
or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state
and country to country.
WARRANTY CLAIMS/ REPAIR SERVICE
If your scope needs repair, call CenterPoint Customer Service at 1-800-
726-1122 or visit our web site at www.centerpointoptics.com DO NOT
ATTEMPT TO DISASSEMBLE IT! Any disassembly or modification not
performed by CenterPoint Precision Optics will void the warranty.
USA Customers: Please contact CenterPoint before shipping your
product. Include with product your name, address, description of problem,
phone number and copies of sales receipt and warranty. A check or money
order in the amount of $10.00 to cover the cost of postage and handling is
also required. Package and return to CenterPoint, Crosman Corporation,
7629 Rts. 5 & 20, Bloomfield, NY 14469. CenterPoint will not assume any
responsibility for any loss or damage incurred in shipping.
International Customers: Please return product to your nearest distributor.
If you do not know your distributor, please call 585-657-6161 and ask for
our International Department for assistance. Shipping and handling costs
may apply.
3
4
5
7
1
2
6
A
B
C
D
