Crosman CPA416AORG2 User Manual
16x40mm owner’s manual

4-16x40mm
OWNER’S MANUAL
READ ALL INSTRUCTIONS AND WARNINGS IN THIS MANUAL BEFORE USING THIS SCOPE
CenterPoint Precision Optics
7629 Routes 5 & 20
Bloomfield, NY 14469
www.centerpointoptics.com
1-866-726-1122
Made in China
CPA416AORG2-515
BUYER AND USER HAVE THE DUTY TO OBEY ALL LAWS ABOUT THE USE AND OWNERSHIP OF
THIS SCOPE.
All CenterPoint scopes are constructed with high quality precision machined parts. The rugged one piece
tube construction works for all terrains and weather. The scope is precision machined to exact tolerances
from aircraft-grade aluminum alloy.
WARNING:
Direct viewing of the sun can cause permanent eye damage. Do not attempt
to view the sun through this riflescope or any other optical instrument.
WARNING:
Always follow all rules of firearm and gun safety.
WARNING:
This product contains a chemical known to the state of California to cause
cancer and birth defects (and other reproductive harm).

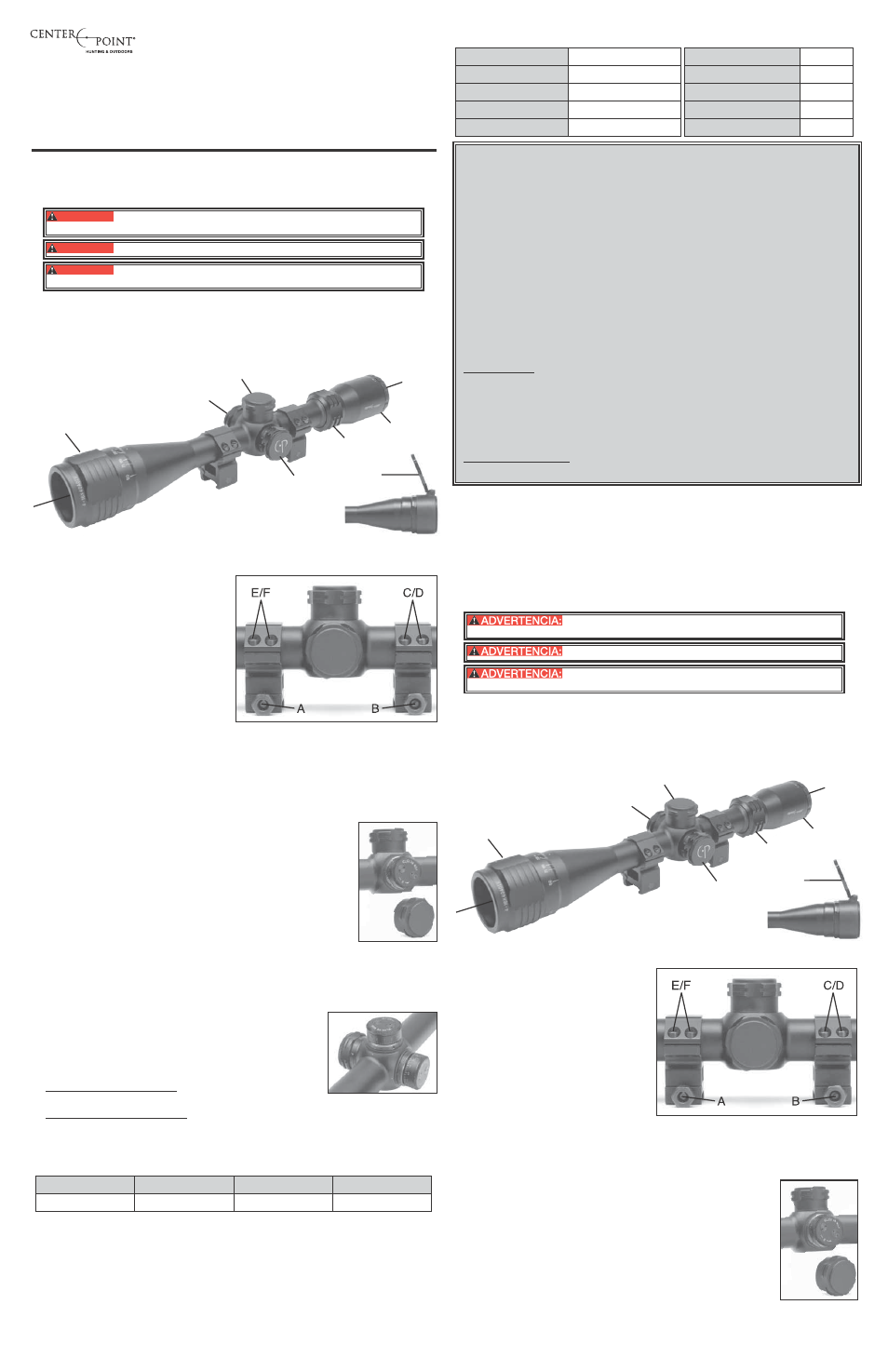

Learning the parts of your scope
Learning the names of the parts of your new scope will help you to understand your owner’s manual.
1. Magnification Ring
2. Fast Focus Eyepiece
3. Ocular Lens
4. Elevation (vertical) Adjustment
5. Red/Green Illumination Dial
6. Parallax Adjustment Ring
7. Objective lens
8. Removable Flip Open Lens Covers
9. Windage (horizontal) Adjustment
Mounting the Scope
CAUTION: Always ensure your rifle is UNLOADED, UNCOCKED and the safety is applied before fitting
the scope. Practice safe handling procedures at all times.
• Remove the ring mount screws (C-F) and lift the
scope from the mounts.
• Loosen the mounting screws (A-B) on the base
of the mounts.
• Fit the ring bases to the mount rail of the rifle.
• Replace the top piece of the ring and finger
tighten.
• Put the rifle to your shoulder in your natural
shooting position and adjust the scope’s eye
relief until you achieve a full field of view.
• When you have found the ideal eye relief rotate
the scope so the reticle cross hairs are vertical
and perpendicular to the rifle.
• Tighten the screws on the ring to ensure a firm
grip on the scope. NOTE: Do not over tighten
the screws as you could cause damage to the
scope body.
Adjusting Parallax and Focus
• Aim the scope at your target.
• Adjust the fast focus eyepiece until both the crosshair and the target are in sharpest focus.
• Rotate the parallax adjustment ring to the desired distance setting until the target is in the sharpest
focus and the center of the crosshair stays on the target while you examine the image by slightly
moving your head.
Variable Power Adjustments
To change the magnification, simply rotate the magnification ring to align the desired magnification with
the index dot.
Red or Green Illuminated Reticle
Your scope is designed with crosshairs that illuminate in red or green for ease of
use. To use the illumination feature-
• Remove the battery cover from the red/green illumination dial by turning coun-
ter clockwise.
• Install one CR2032 3V lithium battery into the compartment with the “+” side
up.
• Replace the cover and tighten in by turning it clockwise.
• Turn the red/green illumination dial to illuminate the red or green crosshairs. The
brightness will change as you turn the dial. The markings on the dial show the
color and intensity of the light. Lining the “R” or “G” up with the dot will turn the
illumination off.
Zeroing the Scope
The purpose of zeroing the scope is to ensure that the scope is aligned with the impact point of the pellet
orbullet from the rifle. Before zeroing the scope, read the following adjustment knob instructions carefully.
• The windage and elevation adjustment knobs have a unique resetting screw design. A hex wrench is
provided with the scope for adjustment.
Zeroing
• Place a target 25 yards away.
• Ideally use a steadying device such as a bipod or shooting stand, set
the scope at the highest magnification, aim at the center of the target
and fire a test shot, if safe to do so.
• If the impact point of the pellet or bullet is exactly in the center of the
target then the scope is zeroed. If it is not, you will need to adjust the
reticle using the elevation and/or windage adjusters.
• Remove the caps from the windage and elevation dials
•
Vertical Adjustment (Elevation) - Use your fingers to turn the adjust-
ing knob as required. One click in either direction equals approximately
1/4 inch at 100 yards.
•
Horizontal Adjustment (Windage) - Use your fingers to rotate the adjusting knob as required. One
click in either direction equals approximately 1/4 inch at 100 yards.
• Having adjusted the windage and elevation as required, fire, if safe to do so, another test shot. Keep
adjusting and test firing until the test shot impacts on the center of the target when the reticle is on
the center of the target. This is vital for accurate shooting.
Note: Each click of adjustment moves the impact point by the amount shown in the table below
@ 50yds
@ 100yds
@ 200yds
@ 300yds
1/8”
1/4”
1/2”
3/4”
Maintenance
• Take care not to drop or knock the scope once it is zeroed.
• Keep the protective lens covers in place when the scope is not being used.
• Store the scope in a cool dry place when not in use.
• Be careful to avoid contact with acid, alkaline or corrosive chemicals.
• Do not attempt to lubricate any part of the scope.
• Do not disassemble the scope. Do not loosen or remove any screws or parts. Any such or similar
actions will void the warranty.
• Wipe the lens with a clean flannel cloth to keep it clean and dry. Do not use finger or finger nail to
touch or clean lenses.
• Use only a clean flannel cloth for cleaning.
• To maintain battery life, in RG models, turn illumination off when not in use.
9
2
3
7
6
4
8
1
5
Specifications - Model CPA416AORG2
Magnification
4x-16x
Tube Diameter
1”
Objective Diameter
40mm
Length
14.5”
Exit Pupil
8.0mm - 2.4mm
Weight
18.8oz
Eye Relief
3.1”
W/E Adjust Click Value
1/4 MOA
Field of View (@ 100yds)
22.5’ - 6.3’
Parallax Setting
5 to infinity
LIMITED LIFETIME WARRANTY ON CENTERPOINT SCOPES
Your CenterPoint scope is warranted to be free of defects in materials and workmanship for the
lifetime of the original owner. This warranty does not cover damages due to fair wear and tear, failure
to provide routine maintenance,and does not include batteries or accessories. This warranty lasts
as long as the original purchaser owns the product, and is not transferable. In the event of a defect
under this warranty, we will, at our option, repair or replace the product provided our inspection
indicates that an original defect exists. CenterPoint reserves the right to replace any product which
is no longer available with a product of comparable value and function. If CenterPoint determines the
repair is not covered under the warranty guidelines, there could be a charge to you for the repair.
This is a limited warranty and does not cover damages caused by misuse, improper handling or
installation or maintenance provided by someone other than a CenterPoint Authorized Service
Station. This limited warranty does not include consequential damages, incidental damages, or
incidental expenses, including damage to property or any other expense. CenterPoint disclaims any
implied warranties. Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, or allow limitations on implied warranties so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state and country to country.
WARRANTY CLAIMS/ REPAIR SERVICE
If your scope needs repair, call CenterPoint Customer Service at 1-866-726-1122 or visit our web
site at www.centerpointoptics.com DO NOT ATTEMPT TO DISASSEMBLE IT! Any disassembly or
modification not performed by an Authorized Service Station will void the warranty.
USA Customers: Please contact CenterPoint before shipping your product. Include with product
your name, address, description of problem, phone number and copies of sales receipt and war-
ranty. Package and return to:
CenterPoint
Crosman Corporation
7629 Rts. 5 & 20
Bloomfield, NY 14469
CenterPoint will not assume any responsibility for any loss or damage incurred in shipping.
International Customers: Please return product to your nearest distributor. If you do not know
your distributor, please call 585-657-6161 and ask for our International Department for assistance.
Shipping and handling costs may apply.
Modelo 4-16x40mm
MANUAL DEL PROPIETARIO
LEA TODAS LAS INSTRUCCIONES Y ADVERTENCIAS DE ESTE MANUAL ANTES DE USAR LA
MIRA
EL COMPRADOR Y EL USUARIO TIENEN EL DEBER DE OBEDECER TODAS LAS LEYES RELATIVAS AL USO Y
PROPIEDAD DE ESTA MIRA TELESCÓPICA.
Todas las miras telescópicas CenterPoint están construidas con piezas mecanizadas de precisión de alta calidad. La resis-
tente construcción de tubo de una pieza funciona para todos los terrenos y climas. La mira telescópica está mecanizada
con precisión a tolerancias exactas a partir de aleación de aluminio de grado de aeronave.
La visión directa del sol puede ocasionar daños permanentes al ojo. No
intente ver el sol a través de esta mira telescópica del rifle ni de ningún otro instrumento óptico.
Siempre siga todas las reglas de seguridad para armas de fuego.
Este producto contiene un producto químico conocido en el estado
de California como causante de cáncer y defectos congénitos (y otros daños reproductivos).
Aprendiendo las partes de su mira telescópica
Aprendiéndose los nombres de las partes de su nueva mira telescópica le ayudará a entender su manual del propietario.
1. Anillo de aumento
2. Ocular de enfoque rápido
3. Lente ocular
4. Ajuste de elevación (vertical)
5. Selector de iluminación Rojo/Verde
6. Ajuste de paralaje
7. Lente del objetivo
8. Tapas de los lentes removibles con bisagra
9. Ajuste de compensación de viento (horizontal)
9
2
3
7
6
4
8
1
5
Montaje de la mira telescópica
PRECAUCIÓN: Antes de instalar la mira telescópica, asegúrese siempre de que el rifle esté DESCARGADO Y DESAMAR-
TILLADO y que el seguro esté aplicado. Practique
procedimientos de manipulación seguros en todo momento.
• Quite los tornillos de la montura de anillo (C-F) y levante
la mira telescópica de las monturas.
• Afloje los tornillos de montaje (A-B) en la base de las
monturas.
• Ajuste las bases de los anillos al riel de montaje del rifle.
• Vuelva a colocar la pieza superior del anillo y apriete
con los dedos.
• Colóquese el rifle en el hombro en su posición natural
de disparo y ajuste la distancia del ojo hasta que con-
siga una vista de todo el campo.
• Cuando haya encontrado la distancia del ojo ideal, gire
la mira telescópica de modo que las marcas en cruz de
la retícula estén verticales y perpendiculares al rifle.
• Apriete los tornillos del anillo para asegurar un agarre
firme de la mira telescópica. NOTA:
• No apriete los tornillos en exceso ya que podría oca-
sionarle daños al cuerpo de la mira telescópica.
Ajuste del paralaje y del foco
• Apunte la mira telescópica a su blanco.
• Ajuste el ocular de foco rápido hasta que ambas líneas de la cruz y del blanco estén enfocados de la forma.
• Gire el anillo de ajuste de paralaje al valor de distancia deseado hasta que el blanco esté enfocado de la forma más
nítida y el centro de la cruz de la retícula permanezca en el blanco mientras usted examina la imagen moviendo
ligeramente la cabeza.
Ajustes de potencia variable
Para cambiar el aumento, simplemente gire el anillo de aumento para alinear el aumento deseado
con el punto de índice.
Retícula iluminada roja o verde
Su mira telescópica está diseñada con una retícula que se ilumina en rojo o verde para un uso
más fácil. Para usar la función de iluminación-
• Quite la tapa de la pila del selector de iluminación roja y verde girándola en sentido contrario
al de las manecillas del reloj.
• Instale una pila de litio CR2032 de 3V en el compartimiento, con el lado “+” hacia arriba.
• Reemplace la tapa y apriétela girándola en el sentido de las manecillas del reloj.
• Gire el selector de iluminación roja y verde para iluminar la retícula en rojo o en verde. El brillo
cambiará conforme gira el selector. Las marcas del selector muestran el color e intensidad de
la luz. Al alinear “R” (rojo) o “G” (verde) con el punto, se apaga la iluminación.
Ajuste en cero de la mira telescópica
El objetivo del ajuste en cero de la mira telescópica es asegurarse de que la mira telescópica esté
alineada con el punto de impacto del diábolo o la bala procedentes del rifle. Antes de ajustar la
mira telescópica en cero, lea cuidadosamente las siguientes instrucciones para el ajuste de la perilla.
• Las perillas de ajuste de compensación de viento y elevación tienen un diseño exclusivo de tornillos de restauración.
Se entrega una llave allen con la mira telescópica para hacer los ajustes.
