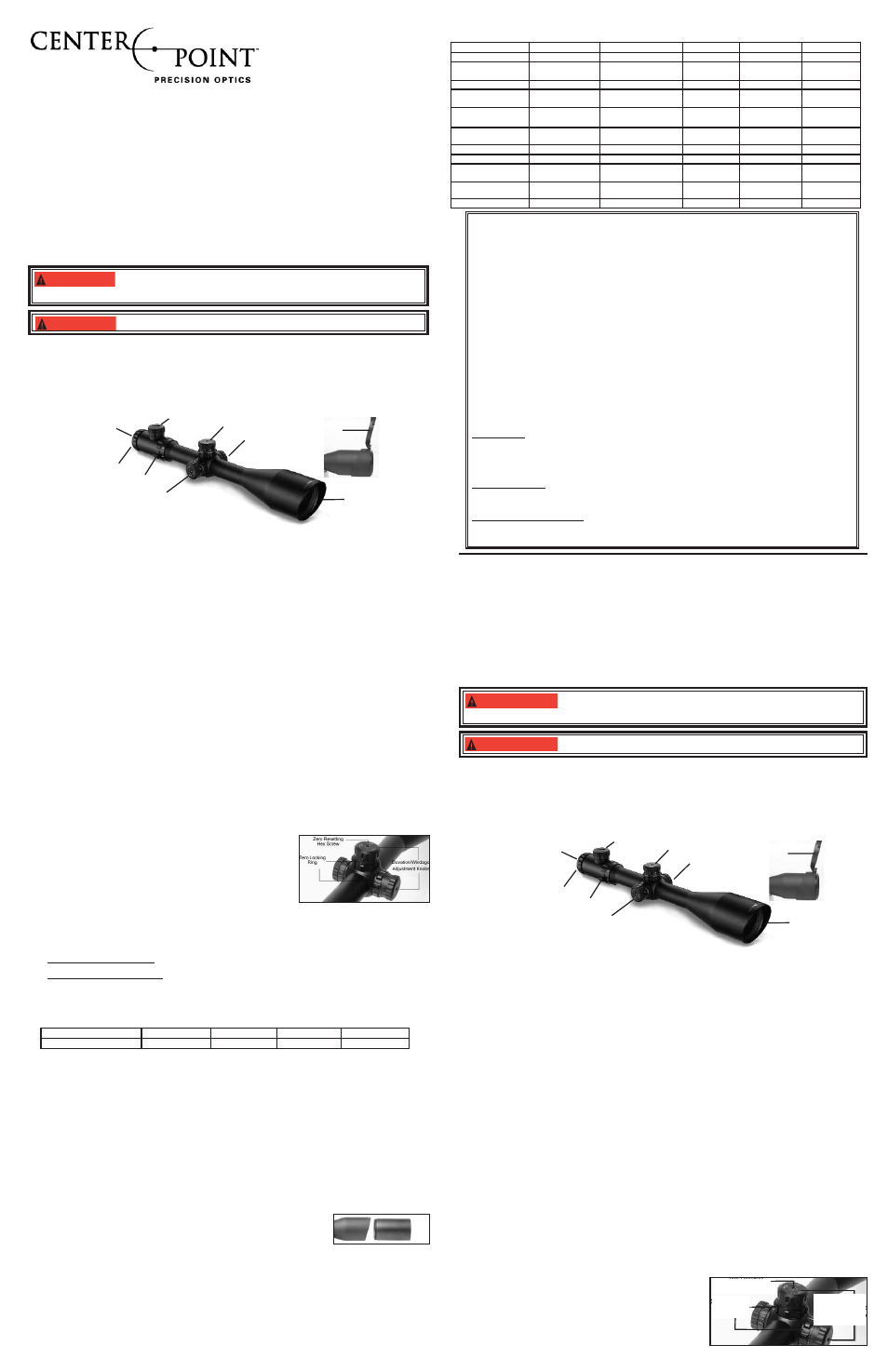

Learning the parts of your scope
Learning the names of the parts of your new scope will help you to understand your owner's manual.
CP416AO / CP416AORG / CP832AORG
OWNER'S MANUAL
READ ALL INSTRUCTIONS AND WARNINGS IN THIS
MANUAL BEFORE USING THIS SCOPE
1. Magnification Ring 6. Side Parallax Adjustment Dial
2. Fast Focus Eyepiece 7. Objective lens
3. Ocular Lens 8. Removable Flip Open Lens Covers
4. Red/Green Illumination Dial (on RG models only) 9. Windage (horizontal) Adjustment
5. Elevation (vertical) adjustment
LIMITED LIFETIME WARRANTY ON CENTERPOINT SCOPES
Your CenterPoint scope is warranted to be free of defects in materials and workmanship for the lifetime
of the original owner. This warranty does not cover damages due to fair wear and tear, failure to pro-
vide routine maintenance, and does not include batteries or accessories. This warranty lasts as long as
the original purchaser owns the product, and is not transferable. In the event of a defect under this
warranty, we will, at our option, repair or replace the product provided our inspection indicates that an
original defect exists. CenterPoint reserves the right to replace any product which is no longer available with
a product of comparable value and function. If CenterPoint determines the repair is not covered under the
warranty guidelines, there could be a charge to you for the repair. This is a limited warranty and does not cover
damages caused by misuse, improper handling or installation or maintenance provided by someone other
than a CenterPoint Authorized Service Station.
This limited warranty does not include consequential damages, incidental damages, or incidental expenses,
including damage to property or any other expense. CenterPoint disclaims any implied warranties. Some
states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on
implied warranties so the above limitations or exclusions may not apply to you. This warranty gives you spe-
cific legal rights, and you may also have other rights which vary from state to state and country to country.
WARRANTY CLAIMS/ REPAIR SERVICE
If your scope needs repair, call CenterPoint Customer Service at 1-800-726-1122 or visit our web site at
www.centerpointoptics.com DO NOT ATTEMPT TO DISASSEMBLE IT! Any disassembly or modification not
performed by an Authorized Service Station will void the warranty.
USA Customers: Please contact CenterPoint before shipping your product. Include with product your name, address,
description of problem, phone number and copies of sales receipt and warranty. A check or money order in the
amount of $10.00 to cover the cost of postage and handling is also required. Package and return to
CenterPoint, Crosman Corporation, 7629 Rts. 5 & 20, E. Bloomfield, NY 14443. CenterPoint will not assume any
responsibility for any loss or damage incurred in shipping.
Canadian Customers: Contact Crosman Parts and Service at (705) 749-0206 before shipping your product.
Follow packaging and shipping procedures above and send to Crosman Parts & Service Depot, 611 Neal
Drive, Peterborough, Ontario K9J 6X7 Canada. Shipping and handling costs may apply.
Other International Customers: Please return product to your nearest distributor. If you do not know
your distributor, please call 585-657-6161 and ask for our International Department for assistance.
Shipping and handling costs may apply.
Direct viewing of the sun can cause permanent eye damage. Do not
attempt to view the sun through this riflescope or any other optical
instrument.
WARNING:
Always follow all rules of firearm and gun safety. WARNING:
Red or Green Illuminated Reticle (For RG models only)
Your scope is designed with crosshairs that illuminate in red or green for ease of use. To use the illumina-
tion feature-
• Remove the battery cover from the red/green illumination dial by turning counter clockwise.
• Install one CR2032 3V lithium battery into the compartment with the "+" side up.
• Replace the cover and tighten in by turning it clockwise.
• Turn the red/green illumination dial to illuminate the red or green crosshairs. The brightness will change as you turn
the dial. The markings on the dial show the color and intensity of the light. Lining the "R" or "G" up with the dot will
turn the illumination off.
Zeroing the Scope
The purpose of zeroing the scope is to ensure that the scope is aligned with the impact point of the pellet or bullet
from the rifle. Before zeroing the scope, read the following adjustment knob instructions carefully.
• The windage and elevation adjustment knobs have a unique resetting screw design. A hex wrench is
provided with the scope for adjustment.
Zero Locking
IMPORTANT NOTE: W/E locking rings are set at "locked position" for a new
scope.
• Tighten the zero locking ring by rotating clockwise. Do not over-tighten.
• When the zero locking ring is tightened, the windage or elevation
adjustment knob is "locked". The knob wili not rotate, preventing any
accidental movement to lose zero.
Zeroing
When the zero locking rings are in the un-locked position, the windage/ele-
vation adjustment knobs can be rotated.
• Place a target 100 yards away.
• Ideally use a steadying device such as a bipod or shooting stand, set the scope at the highest magnification,
aim at the center of the target and fire a test shot, if safe to do so.
• If the impact point of the pellet or bullet is exactly in the center of the target then the scope is zeroed. If it is not, you
will need to adjust the reticle using the elevation and/or windage adjusters.
• Vertical Adjustment (Elevation) - Use your fingers to turn the adjusting knob as required. One click in either
direction equals approximately 1/8 inch at 100 yards.
• Horizontal Adjustment (Windage) - Use your fingers to rotate the adjusting knob as required. One click in
either direction equals approximately 1/8 inch at 100 yards.
• Having adjusted the windage and elevation as required, fire, if safe to do so, another test shot. Keep
adjusting and test firing until the test shot impacts on the center of the target when the reticle is on the
center of the target. This is vital for accurate shooting.
Note: Each click of adjustment moves the impact point by the amount shown in the table below:
Zero Resetting
Once your scope is zeroed, rotate the zero locking ring to lock zero. The "0" marking may not be facing you at the
original center position now. Optionally, you can use the following steps to reset zero by rotating the "0" marking to
the center positions:
• Ensure zero is "locked".
• Use the hex wrench to turn the zero resetting hex screw counter clockwise to disengage the W/E knobs.
(IMPORTANT: Be gentle with the screw movement. Do not over extend the rotation. Stop when met with
resistance.)
• When the W/E knob is disengaged, rotating the knob will not produce any clicking sound and will not affect
zero. You can re-position the "0" marking to the center position. (If you get clicks when rotating the W/E
knob, the knob was not properly disengaged. You need to go back and re-start from zeroing your scope.)
• Before tightening the zero resetting hex screw, turn the Zero Locking Ring counter clockwise.
• Be careful to keep the W/E knob still now that it is un-locked. Use the hex wrench to gently tighten down the
zero resetting hex screw to complete zero resetting. (If you get clicks while tightening the screw, you will
need to go back and re-start from zeroing your scope.)
• IMPORTANT: Rotate the locking ring clockwise to lock zero immediately.
W/E Adjust Click Value @ 50yds @ 100yds @ 200yds @ 300yds
1/8 M.O.A. 1/16” 1/8” 1/4” 1/2”
Maintenance
• Take care not to drop or knock the scope once it is zeroed.
• Keep the protective lens covers in place when the scope is not being used.
• Store the scope in a cool dry place when not in use.
• Be careful to avoid contact with acid, alkaline or corrosive chemicals.
• Do not attempt to lubricate any part of the scope.
• Do not disassemble the scope. Do not loosen or remove any screws or parts. Any such or similar actions will
void the warranty.
• Wipe the lens with a clean flannel cloth to keep it clean and dry. Do not use finger or finger nail to touch or
clean lenses.
• Use only a clean flannel cloth for cleaning.
• To maintain battery life, in RG models, turn illumination off when not in use.
Range Estimating
Range estimating requires common knowledge/experience about your target's actual width or height. Use the the
Mil Dot instruction card in the scope box for the specific formula for your scope model.
Installing Sunshade
• Remove Flip Open Lens Covers
• Screw on a proper sunshade to the front of the objective.
