VI. Cart Puller Capacity
12
Choose the Right Winch
In most pulling applications you are dealing with a rolling road rather than pulling a dead
weight. Resistance to rolling is mostly influenced by the load, rolling resistance, track gradient,
track curvature, track conditions.
● Load: Calculate the total weight of the loaded cart to be moved simultaneously.
● Rolling resistance: Resistance to rolling is influenced by the wheel journals, type of
lubrication used and the ambient temperature.
● Track gradient: For each one percent gradient, a rise of one meter for every 100 meter of
track, the running line pull must be increased by 10 kg per ton.
● Track curvature: To overcome the effects of wheels binding against rails on curved sections
of track, running line pull must be increased. For each degree of curvature,
the running line pull must be increased by 1kg per ton.
● Track conditions: The condition of substandard track can vary considerably.
Application Condition Example
1).Pulling of a rolling cart in and out of an oven using a single wire rope
2).50 ton total load being moved included weight of cart
3).Steel cart wheels with precision wheel bearing
4).New track, 5curvature and 2% gradient

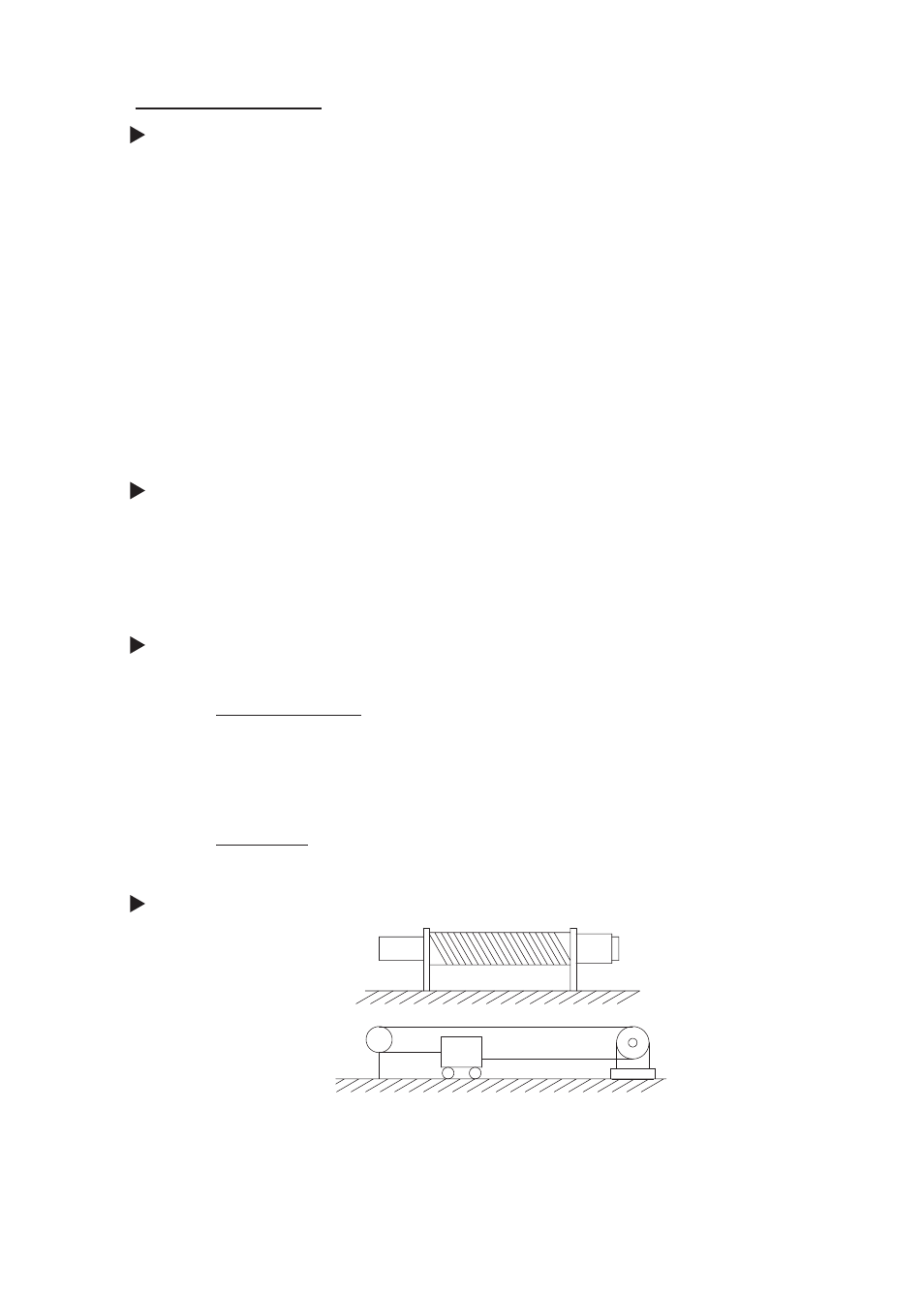

Horizontal Load Reversing
The horizontal load reversing allows 2 pieces of wire rope to be spooled onto the first layer of
grooved drum. As one rope winds onto the drum and the other rope winds off an equal amount.
It is important to know how each of the wire rope will be coming off of the drum, that allows the
correct grooving to be provided.
Pulling Capacity Required
50 ton…..…….….………Total weight being moved
x (10 kg+20 kg+5 kg) 10kg…......Pull required per ton being moved
1,750 kg 20kg…......For each one percent gradient, the running line pull
must be increased by 10 kg/ton
5kg……......For each one degree of curvature, the running line
pull must be increased by 1 kg/ton
x 1.2 20%…….. contingency for unpredictable track or cart conditions
2,100 kg …..…...........Minimum calculated cart puller capacity
