Vermont Castings, Majestic Products DEF/ DEFD26

A

D

C

B

A

E

ROD

G

F

ROW

ROH

Reference

All Models

A

26

1

/

8

" (664 mm)

B

25

7

/

8

" (657 mm)

C

17

1

/

2

" (445 mm)

D

24

1

/

4

" (615 mm)

E

10" (254 mm)

F

20

1

/

8

" (511 mm)

G

21

1

/

4

" (540 mm)

Rough Opening Depth (ROD)

10

1

/

2

" (267 mm)

Rough Opening Width (ROW)

26

5

/

8

" (676 mm)

Rough Opening Height (ROH)

26

3

/

8

" (670 mm)

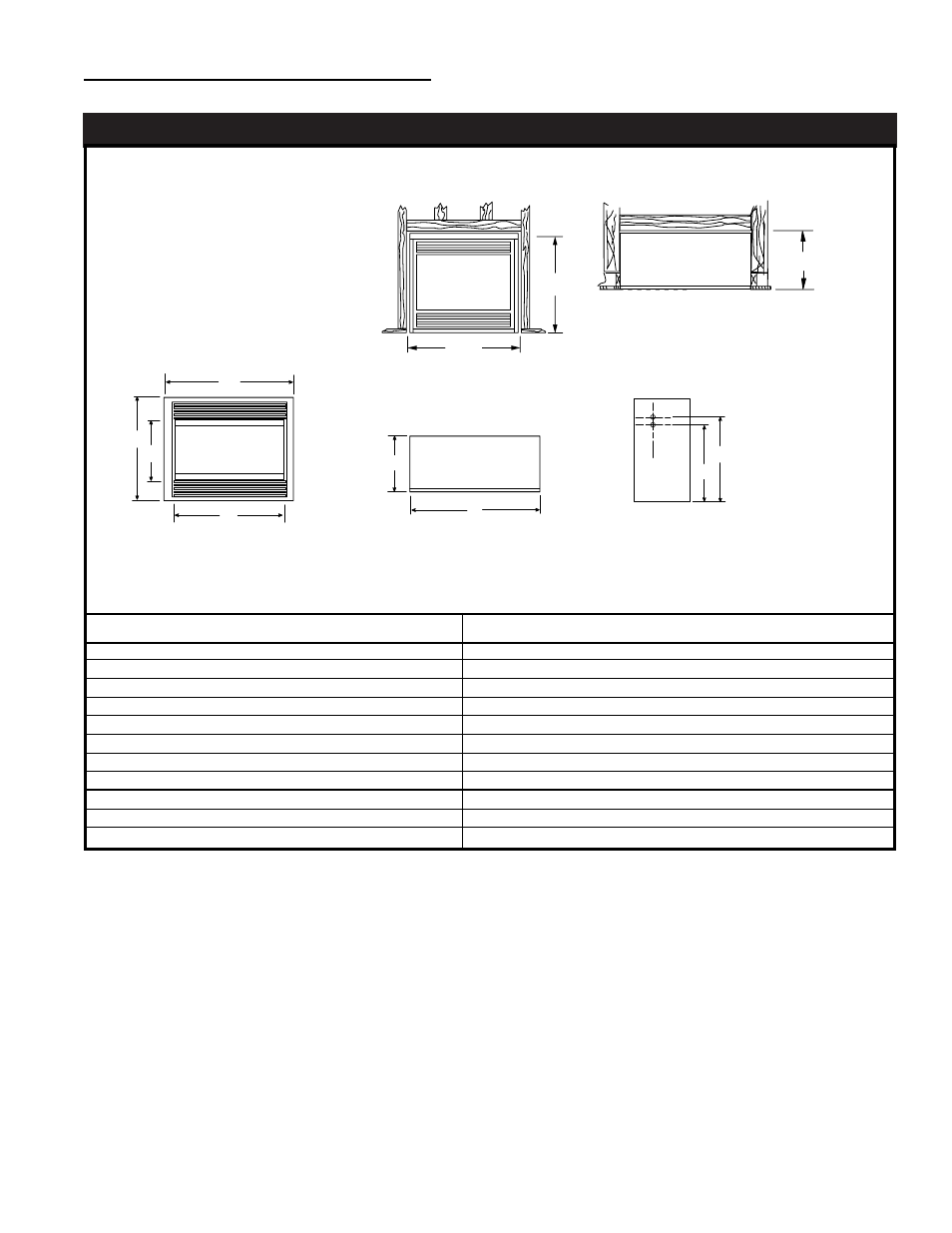

Fireplace Dimensions

Framing & Finishing

5581 HEF26 specs
