Vermont Casting DEFD26 - Manual (Page 10)

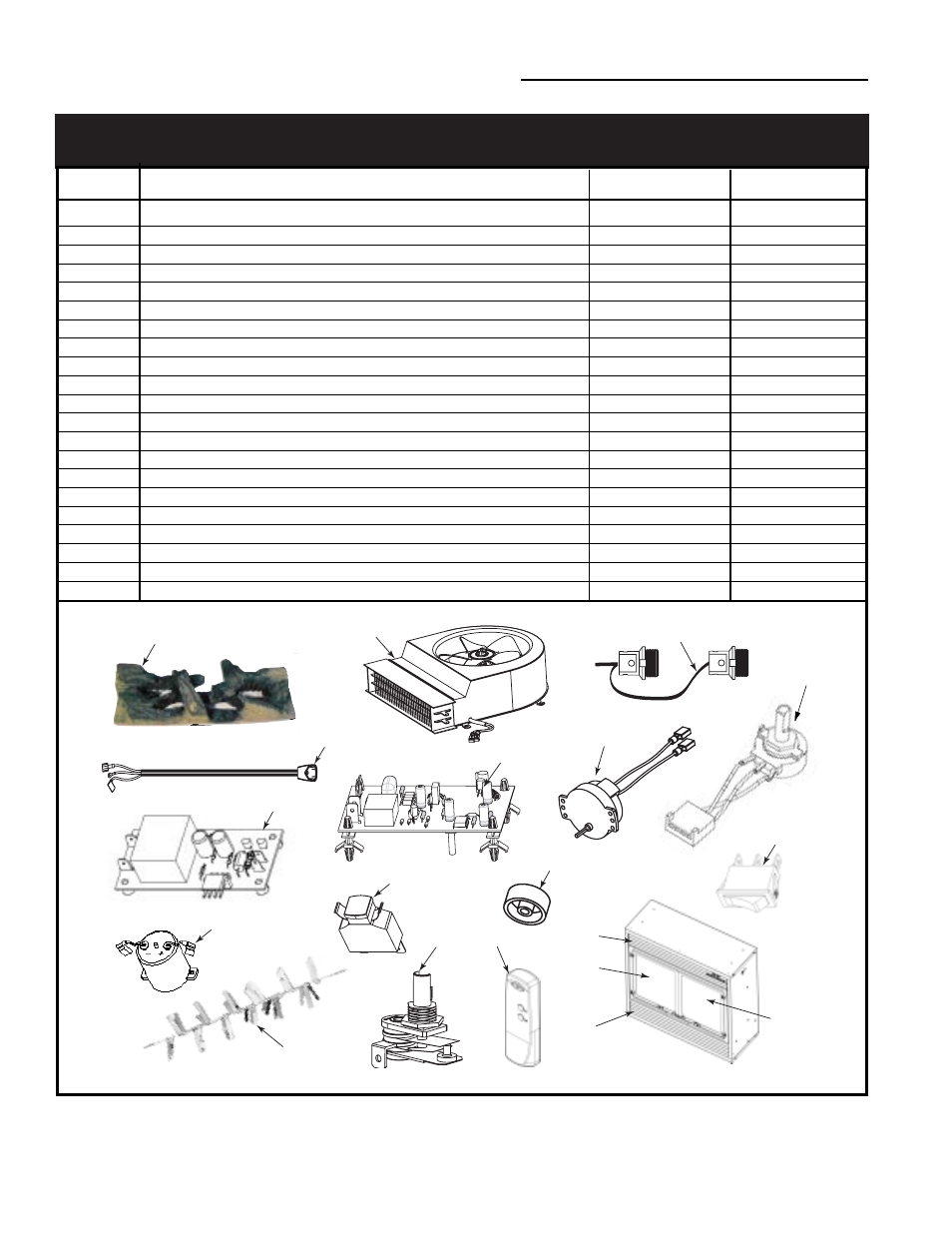

Replacement Parts List
Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and
products at any time, without notice.
5581_DEF26_parts
2
3
5
6
7
9
11 1
12
13
14
15
19
20
4
16
8
6
Item # Part Description DEF26 DEFD26
1 Log Set Complete 10004588 10004588
2 Fan/Heater 10004198 10004198
3 Flame Generator Motor, 120 Volt AC w/Terminal 10004262 —
4 Cord Power 16/3 HPN w/Terminals 10003095 10003095
5 ON/OFF Switch 10001393 10001393
6 Heater Control (Thermostat) 10004199 10004199
7 Heater Control Knob 10001639 10001639
8 Breaker Circuit Manual Reset 10003093 10003093
9 Flame Generator Assembly 10003350 10003350
10 Screen Light Tinted (not shown) 10005345 10005345
11 Light Bulb Socket w/Wiring Assembly 10003568 10003568
12 Top Louvre Assembly 10005135 10005135
13 Bottom Louvre Assembly 10005153 10005153
14 Frame Door Screen Left Assembly 10005330 10005330
15 Frame Door Screen Right Assembly 10005329 10005329
16 Motor 12 VDC Flame Generator — 10001978
17 Potentiometer w/Harness Assembly — 10001168
18 Circuit Board Flame Speed Control — 10001589
19 Transmitter — 10005140
20 Receiver — 10005141
21 CFM-Majestic Wire (not shown) 10005347 10005758
10 10005581
