Vermont Castings, Majestic Products DEF/ DEFD26

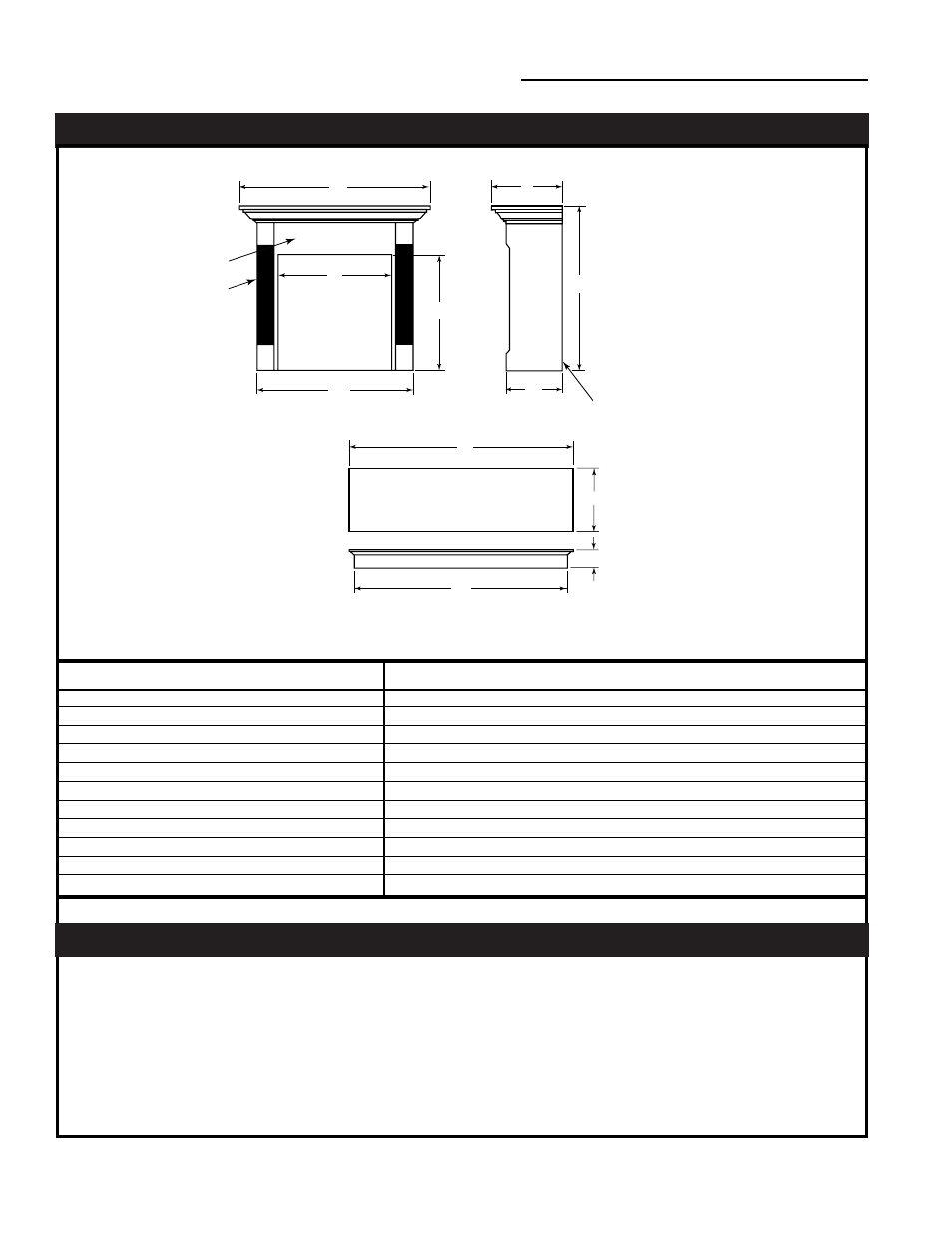

Optional Cabinet Dimensions
J
H
K
I
4. Place the cabinet assembly over the fireplace. The
opening in cabinet fits over fireplace, back edges of
the cabinet flush against the wall. Place the front of
the fireplace up flush against the front face of the
cabinet between the two (2) pillars.
1. Refer to the installation instructions on Page 3 in
this owner's manual for electrical hookup and
SAFETY RULES.
2. Place the cabinet base into position, back edges of
the cabinet base flush against the wall.
3. Place the fireplace onto the base, centered side-to-
side, back edge of fireplace approximately 1"
(25 mm) out from the wall.
Front and Side
Views of Cabinet
C
G
D
F
A
B
Pillar
Face
E
Back edge
Reference All Models
A 26 5 / 8 " (676 mm)
B 26 1 / 2 " (673 mm)
C 43 7 / 8 " (1114 mm)
D 36 1 / 2 " (927 mm)
E 13" (330 mm)
F 10 3 / 8 " (264 mm)
G 38 1 / 2 " (978 mm)
H 44 1 / 4 " (1124 mm)
I 3" (76 mm)
J 45 1 / 4 " (1149 mm)
K 15 1 / 2 " (394 mm)
Front Base
Optional Cabinet Installation
